Problem Symptoms Table (to 12/2010)

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE

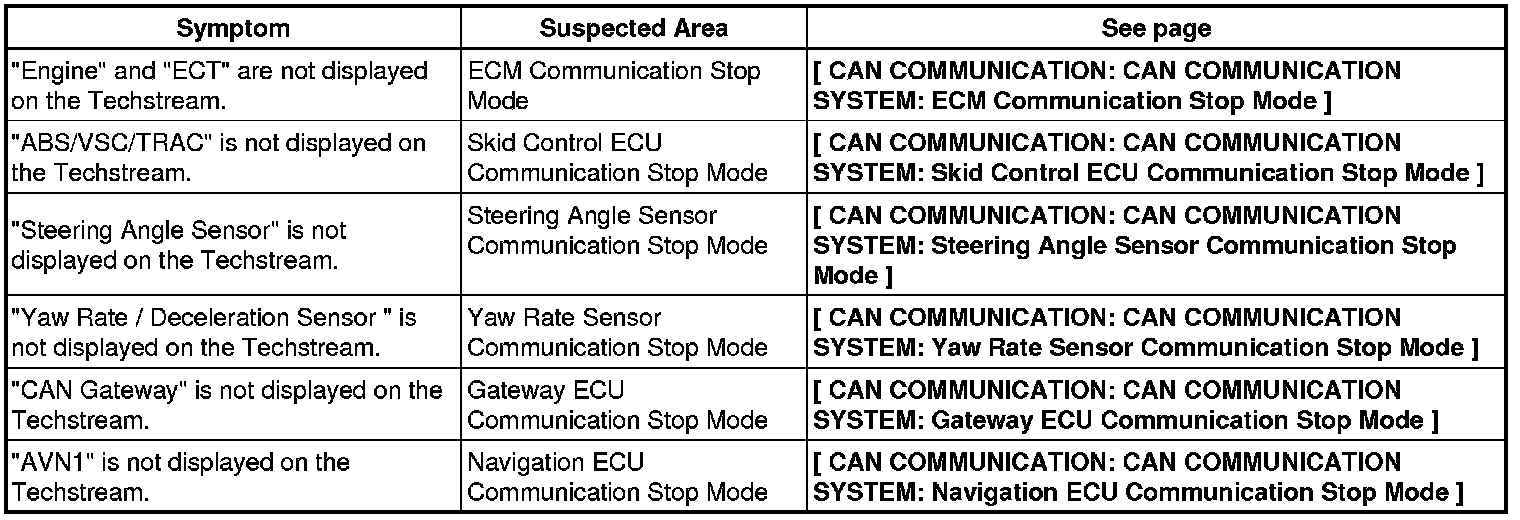

1. COMMUNICATION STOP MODE TABLE

(a) Check that there is no open circuit in the CAN main bus line, short between the lines, or short to +B in "CHECK CAN BUS LINE". Select "CAN Bus Check" on Techstream.

(b) Check that the communication stop mode of the ECUs or sensors is not displayed among the following: "Engine", "ECT", "ABS/VSC/TRAC", "Yaw Rate / Deceleration Sensor", "Steering Angle Sensor", and "CAN Gateway".

NOTICE:
* Systems using the CAN communication system differ according to optional settings. Check which ECUs or sensors are installed on the vehicle.
* Non-installed ECUs or sensors will not be displayed. Do not mistake them for being in communication stop mode.
* If 2 or more ECUs or sensors are not displayed on the Techstream, perform troubleshooting for communication stop mode for each non displayed ECU or sensor. (Either side of the CAN bus lines may be open.)
