Terminals of ECU (from 12/2010)
CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: TERMINALS OF ECU
HINT
This section describes the standard CAN values for all CAN related components.
1. JUNCTION CONNECTOR (CAN J/C)

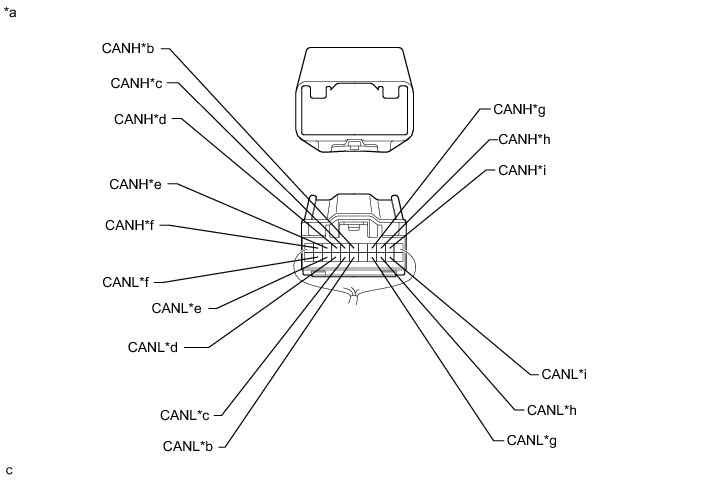

(a) Connection diagram
Text in Illustration

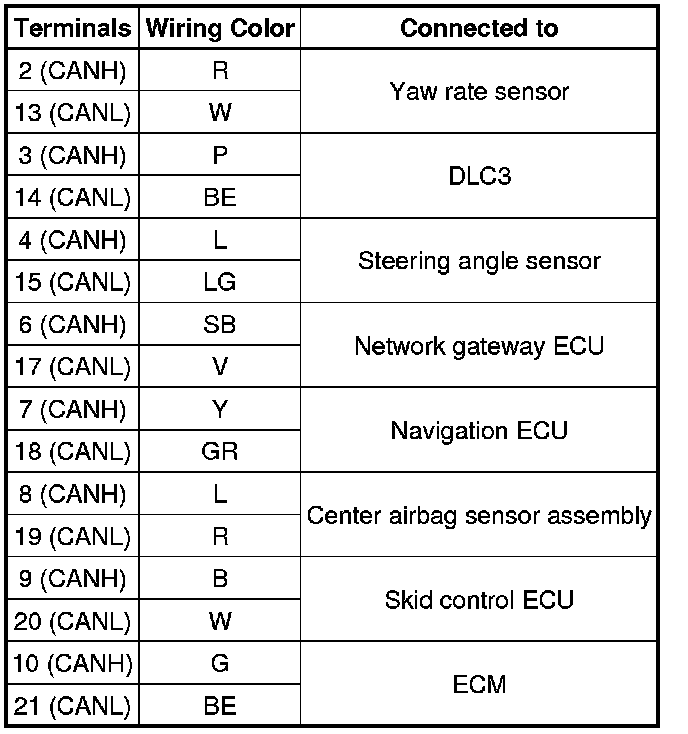

(b) Check the connection diagram of the components which are connected to the CAN junction connector.
2. DLC3
(a) Measure the resistance according to the value(s) in the table below.
Text in Illustration
Standard resistance:
3. SKID CONTROL ECU
(a) Disconnect the connector from the skid control ECU.
Text in Illustration

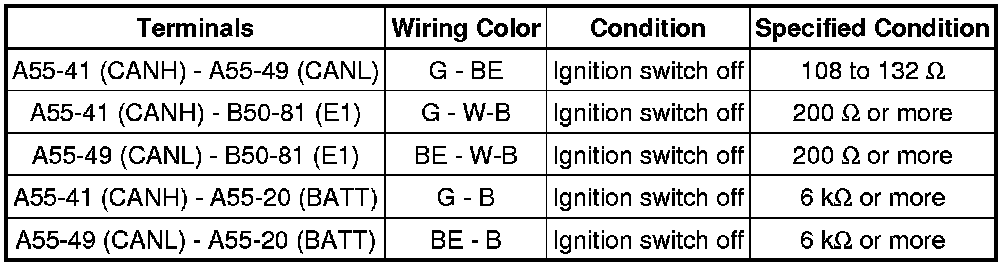

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
4. STEERING ANGLE SENSOR
(a) Disconnect the connector from the steering angle sensor.
Text in Illustration
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
5. NAVIGATION ECU (NAVIGATION RECEIVER ASSEMBLY) (w/ Navigation System)
Text in Illustration

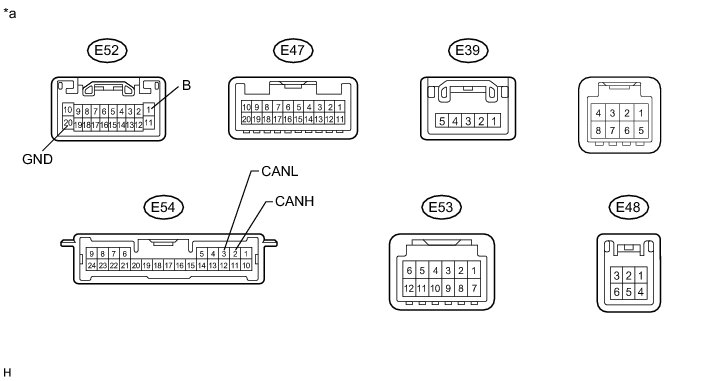

(a) Disconnect connectors E52 and E54 from the navigation receiver assembly.
Text in Illustration

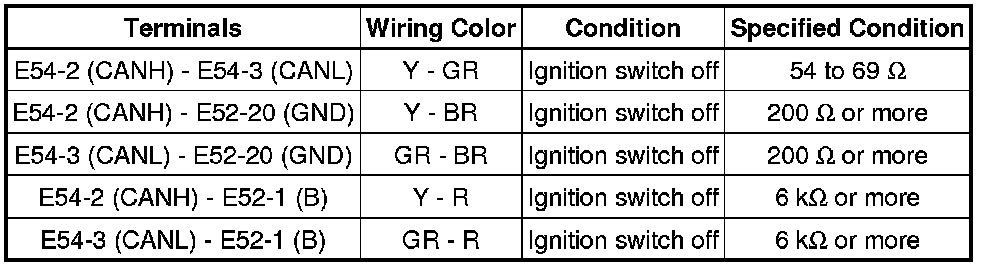

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
6. YAW RATE SENSOR
(a) Disconnect the connector from the yaw rate sensor.
Text in Illustration
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

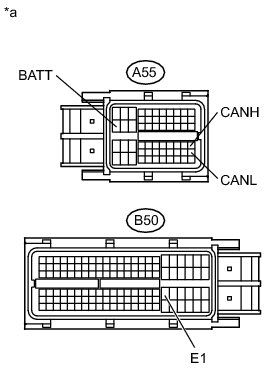

7. ECM
(a) Disconnect the connector from the ECM.
Text in Illustration
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
8. NETWORK GATEWAY ECU
(a) Disconnect the connector from the network gateway ECU (E23).
Text in Illustration
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

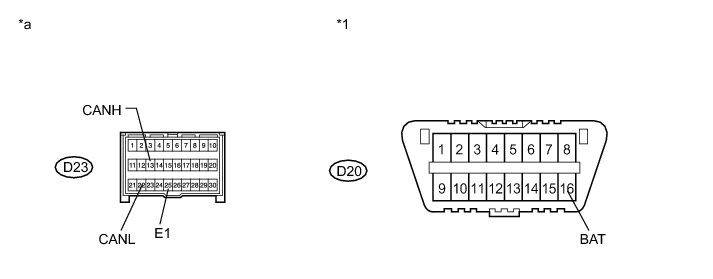

9. CENTER AIRBAG SENSOR ASSEMBLY
(a) Disconnect the connector of the center airbag sensor assembly.
Text in Illustration
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
