TC and CG Terminal Circuit (from 12/2010)

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: TC and CG Terminal Circuit
- TC and CG Terminal Circuit

DESCRIPTION

DTC output mode is set by connecting terminals 13 (TC) and 4 (CG) of the DLC3. The DTCs are indicated by blinks of the tire pressure warning light.

WIRING DIAGRAM





HINT
When each warning light blinks continuously, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in an ECU connected to this circuit may have occurred.

INSPECTION PROCEDURE

NOTICE:
* When replacing the tire pressure warning ECU, read the transmitter IDs stored in the old ECU using the Techstream and note them down before removal.
* It is necessary to perform the initialization Initialization (from 12/2010) after the registration Registration (from 12/2010) of the transmitter IDs into the tire pressure warning ECU if the ECU has been replaced.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (DLC3 - TIRE PRESSURE WARNING ECU)

(a) Disconnect the D54 ECU connector.

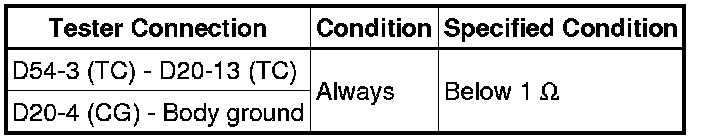

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table (from 12/2010)
