Turn Signal Flasher: Testing and Inspection

LIGHTING: TURN SIGNAL FLASHER ASSEMBLY: ON-VEHICLE INSPECTION

1. INSPECT TURN SIGNAL FLASHER ASSEMBLY

(a) Disconnect the connector from the turn signal flasher.

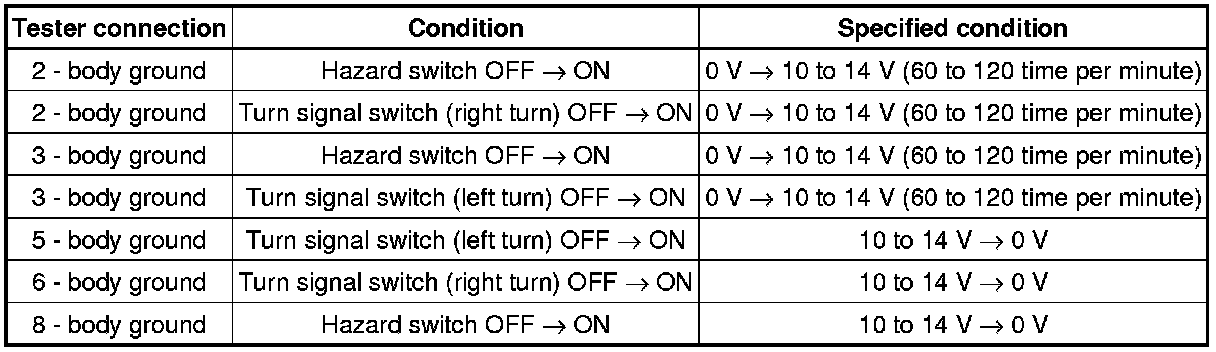

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:

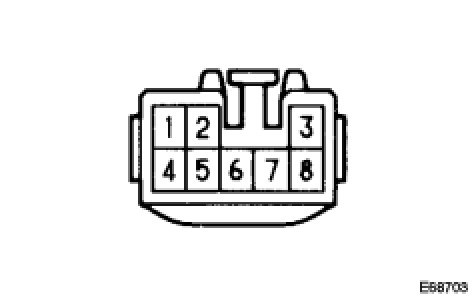

(c) Connect the connector to turn on the signal flasher and turn the ignition switch on (IG). inspect the wire harness side connector from the back according to the conditions listed in the table below.

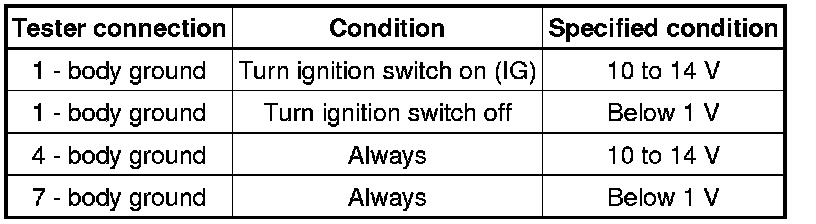

Standard voltage:
