Luggage Room Light Circuit

LIGHTING: LIGHTING SYSTEM: Luggage Room Light Circuit
- Luggage Room Light Circuit

DESCRIPTION

The body ECU receives luggage compartment door information, and turns on the luggage compartment light.

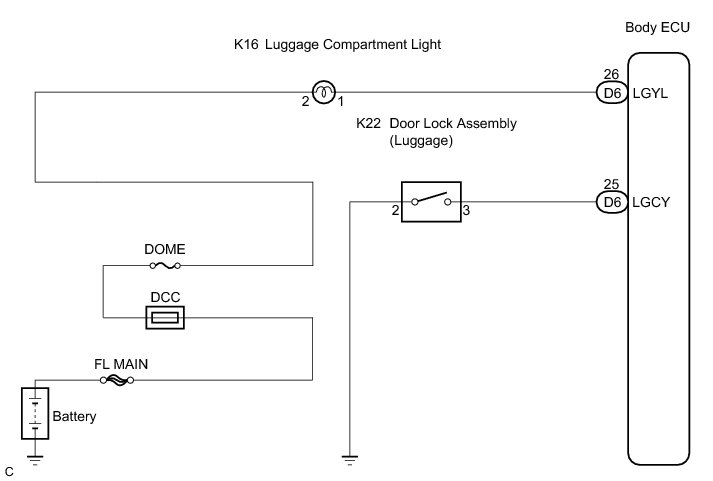

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Body / Data List.

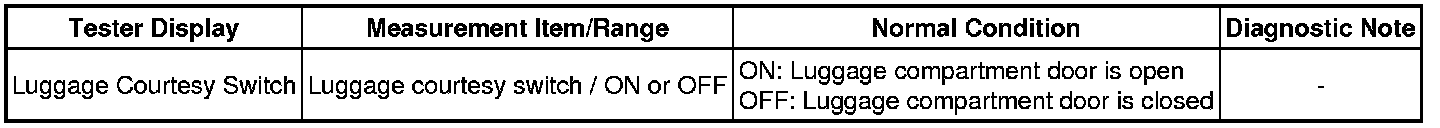

(e) Read the display on the Techstream.

Body (Body ECU)





OK:

Normal conditions listed above are displayed.

OK -- CHECK HARNESS AND CONNECTOR (BATTERY - INSTRUMENT PANEL J/B ASSEMBLY)
NG -- Continue to next step.

2. INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

(a) Inspect luggage compartment door lock assembly Back Door Courtesy Switch.

OK:

Luggage compartment door lock assembly is normal.

NG -- REPLACE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL J/B ASSEMBLY - BODY GROUND)

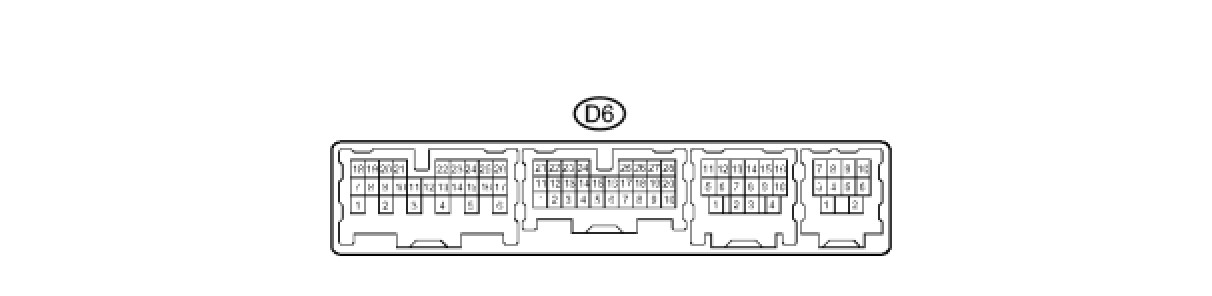

(a) Disconnect the D6 connector from body ECU.

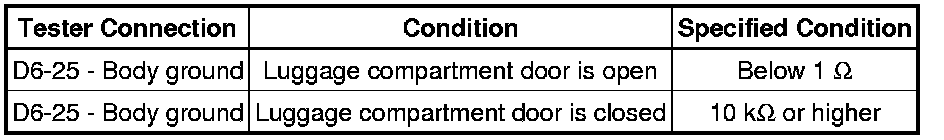

(b) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (BATTERY - INSTRUMENT PANEL J/B ASSEMBLY)

(a) Using a service wire, connect terminal D6-26 on the wire harness side and body ground.





OK:

Luggage room light comes on.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
