LVL Terminal Circuit

LIGHTING: LIGHTING SYSTEM: LVL Terminal Circuit
- LVL Terminal Circuit

DESCRIPTION

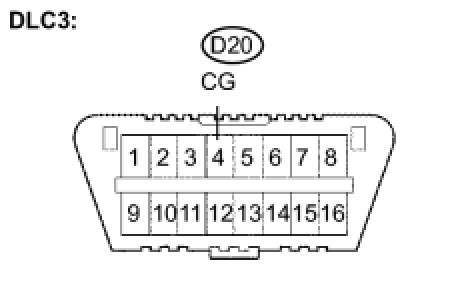

Connecting terminals LVL and CG of the DLC3 initializes the height control sensor signal.

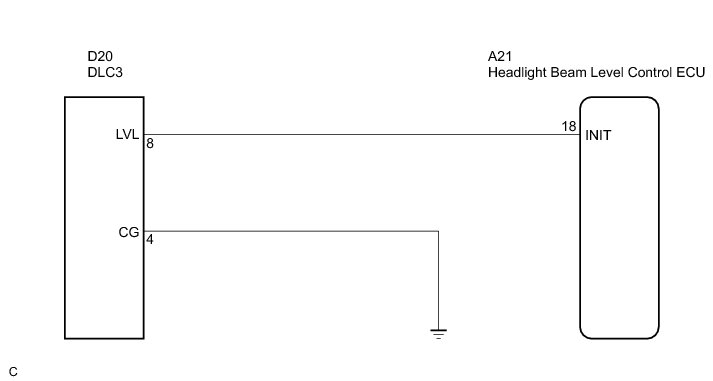

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (DLC3 - HEADLIGHT BEAM LEVEL CONTROL ECU)

(a) Disconnect connector A21 from the headlight beam level control ECU.

(b) Measure the resistance according to the value(s) in the table below.

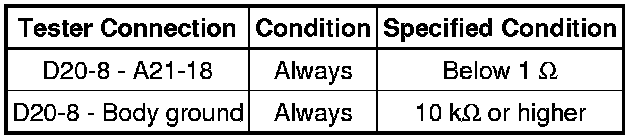

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
