Headlight Signal Circuit

LIGHTING: LIGHTING SYSTEM: Headlight Signal Circuit
- Headlight Signal Circuit

DESCRIPTION

The front controller receives the HEAD position signal of the light control switch.

It also receives the signal from the combination SW ECU via multiplex communication system.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR

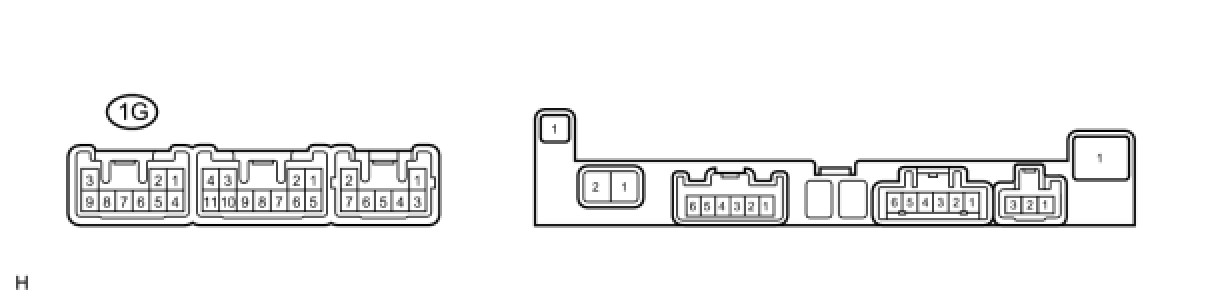

(a) Disconnect connector 1G from the engine room junction block.





(b) Disconnect the connector from the combination SW ECU.

(c) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

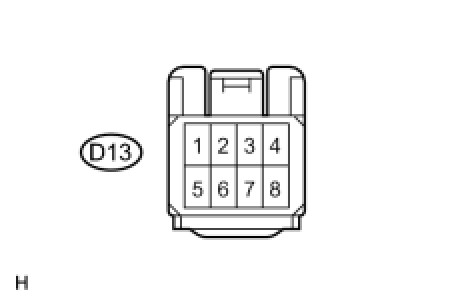

2. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY (COMBINATION SWITCH ECU)

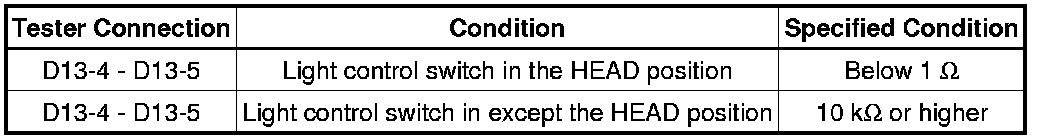

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPLACE WINDSHIELD WIPER SWITCH ASSEMBLY
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (COMBINATION SWITCH ECU - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
