Generator Signal Circuit

LIGHTING: LIGHTING SYSTEM: Generator Signal Circuit
- Generator Signal Circuit

DESCRIPTION

The front controller receives an engine condition signal via the generator.

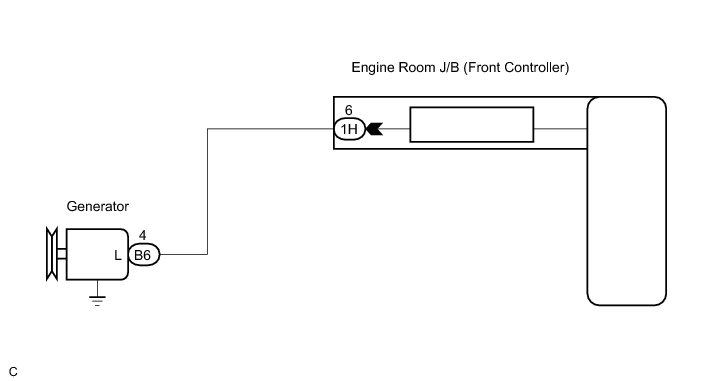

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Body No. 5 / Data List.

(e) Read the display on the Techstream.

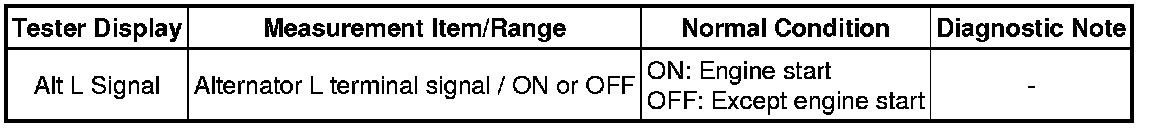

Body No. 5 (Front Controller)





OK:

Normal conditions listed above are displayed.

NG -- INSPECT GENERATOR ASSEMBLY

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

2. INSPECT GENERATOR ASSEMBLY

(a) Inspect generator assembly Testing and Inspection.

OK:

Generator assembly is normal.

NG -- CHECK AND REPLACE GENERATOR ASSEMBLY
OK -- Continue to next step.

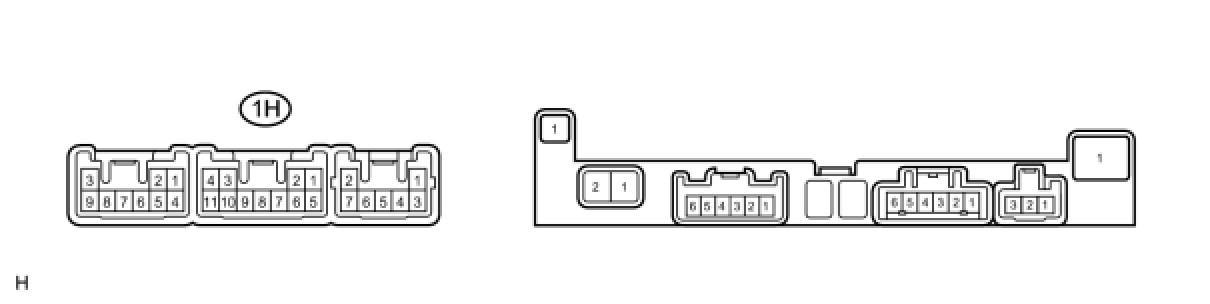

3. CHECK HARNESS AND CONNECTOR (GENERATOR - FRONT CONTROLLER)

(a) Measure the voltage according to the value(s) in the table below.





Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
