Installation (from 12/2010)

LIGHTING: HEADLIGHT DIMMER SWITCH: INSTALLATION

1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY

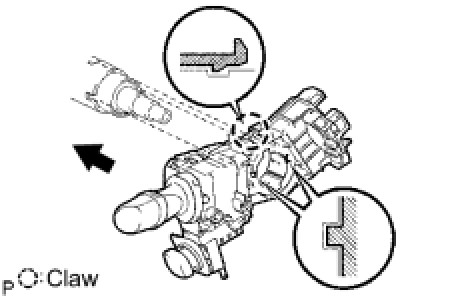

(a) Install the headlight dimmer switch assembly with the claw as shown in the illustration.





HINT
Make sure that the claw is completely engaged.

(b) Install the headlight dimmer switch assembly with the clamp.





(c) Connect the connector.

2. INSTALL SPIRAL CABLE SUB-ASSEMBLY

3. INSTALL STEERING COLUMN COVER Installation (from 12/2010)

4. INSTALL STEERING COLUMN COVER LWR Installation (from 12/2010)

5. ADJUST SPIRAL CABLE SUB-ASSEMBLY

6. INSTALL STEERING WHEEL ASSEMBLY Installation (from 12/2010)

7. INSPECT STEERING WHEEL CENTER POINT

8. INSTALL HORN BUTTON ASSEMBLY Installation (from 12/2010)

9. INSTALL STEERING WHEEL COVER LOWER NO.2 Installation (from 12/2010)

10. INSTALL STEERING WHEEL COVER LOWER NO.3 Installation (from 12/2010)

11. CONNECT BATTERY NEGATIVE TERMINAL

12. INSPECT HORN BUTTON ASSEMBLY

13. INSPECT SRS WARNING LIGHT

( Precaution (from 12/2010))

14. PERFORM INITIALIZATION

(a) Some systems need initialization when disconnecting the cable from the negative battery terminal ( Repair Instruction - Initialization).
