Component Tests and General Diagnostics

LIGHTING: AUTOMATIC LIGHT CONTROL SENSOR: ON-VEHICLE INSPECTION

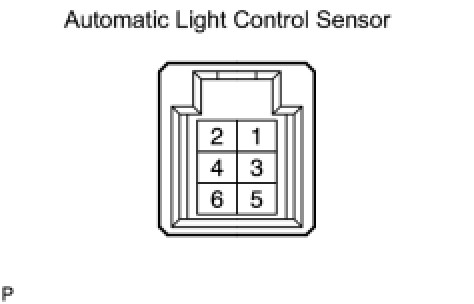

1. INSPECT AUTOMATIC LIGHT CONTROL SENSOR

(a) Measure the continuity, waveform and voltage according to the value(s) in the table below.





NOTICE:
With connector connected, perform inspection from the backside of the connector.

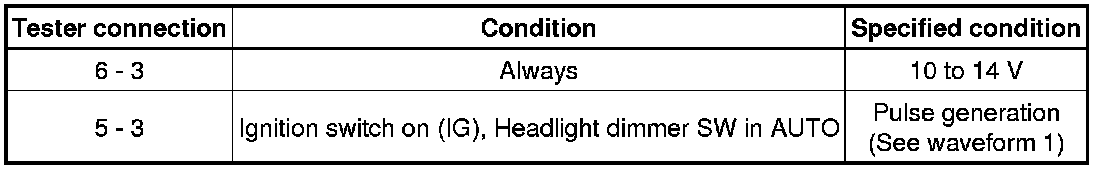

Standard voltage:





Standard resistance:

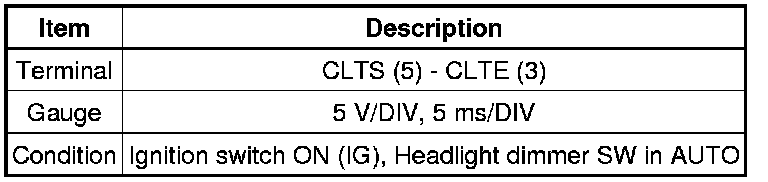

(b) Waveform 1









HINT
If the ambient light becomes brighter, width A will become narrower.
