Key Cylinder Lamp: Testing and Inspection

LIGHTING: IGNITION KEY CYLINDER LIGHT: INSPECTION

1. INSPECT TRANSPONDER KEY AMPLIFIER

(a) Inspect key cylinder light operation.

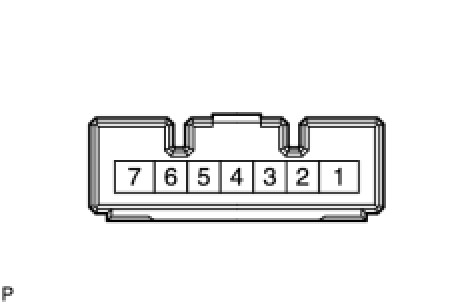

(1) Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 6, and check that the light comes on.

Standard:

The light comes on.
