Room Light Assembly (for Rear)

LIGHTING: ROOM LIGHT ASSEMBLY (for Rear): INSPECTION

1. INSPECT REAR ROOM LIGHT ASSEMBLY

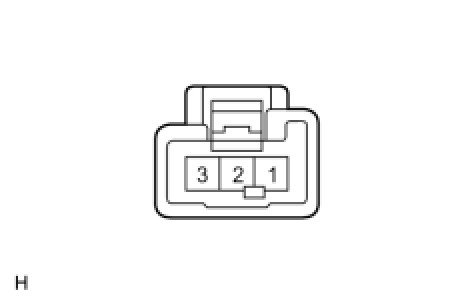

(a) Connect the (+) lead from the battery to terminal 3 and the (-) lead to terminal 2, and check that the rear room light comes on when the switch is in the ON position.





OK:

The light comes on.

(b) Connect the (+) lead from the battery to terminal 3 and the (-) lead to terminal 1, and check that the rear room light comes on when the switch is in the DOOR position.

OK:

The light comes on.
