Problem Symptoms Table (to 12/2010)





METER: METER / GAUGE SYSTEM: PROBLEM SYMPTOMS TABLE

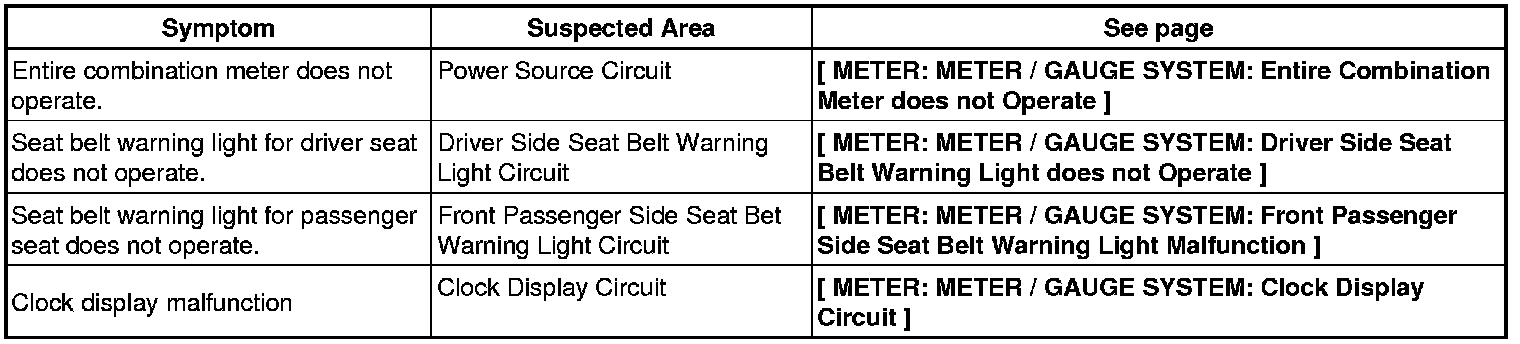

Entire System

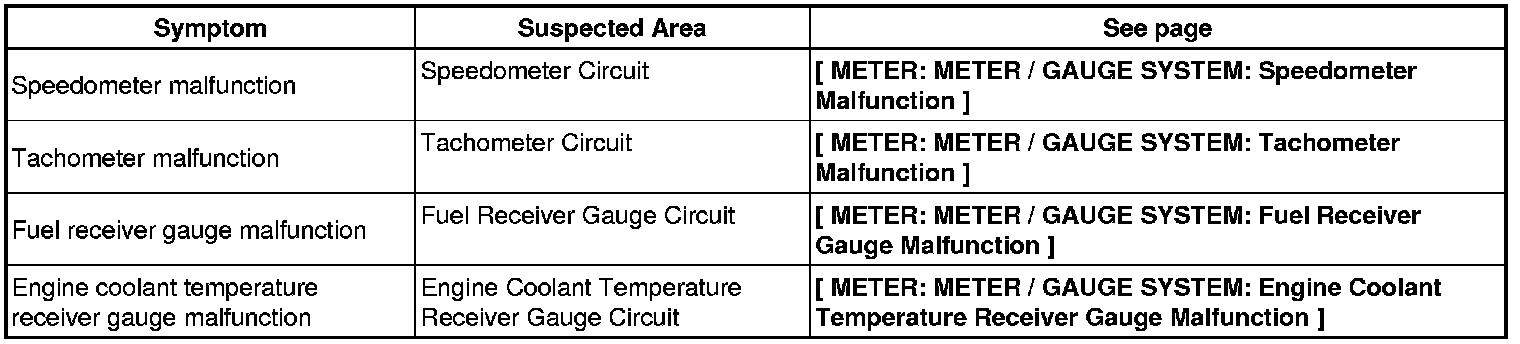

Meter or Gauge

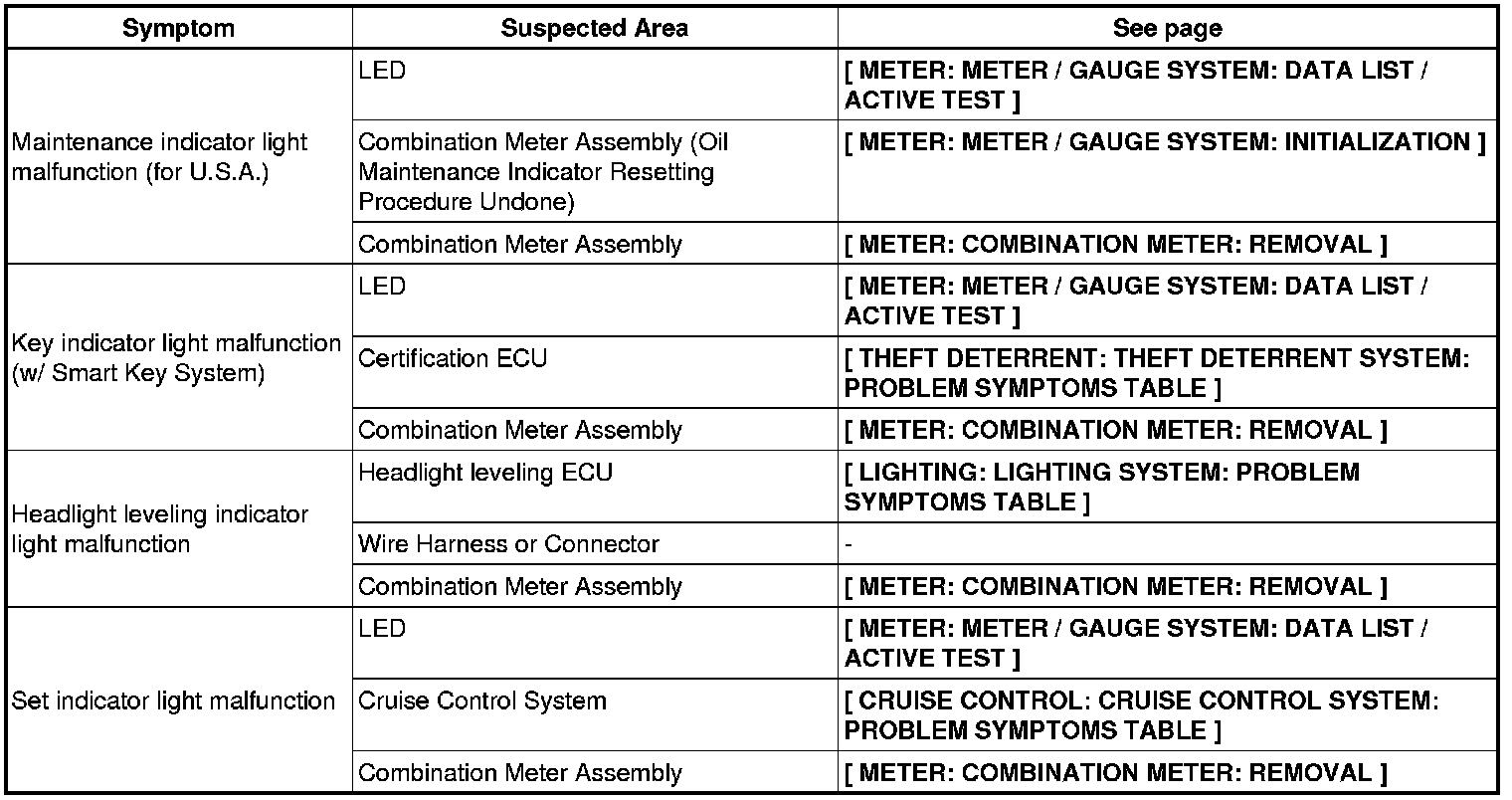

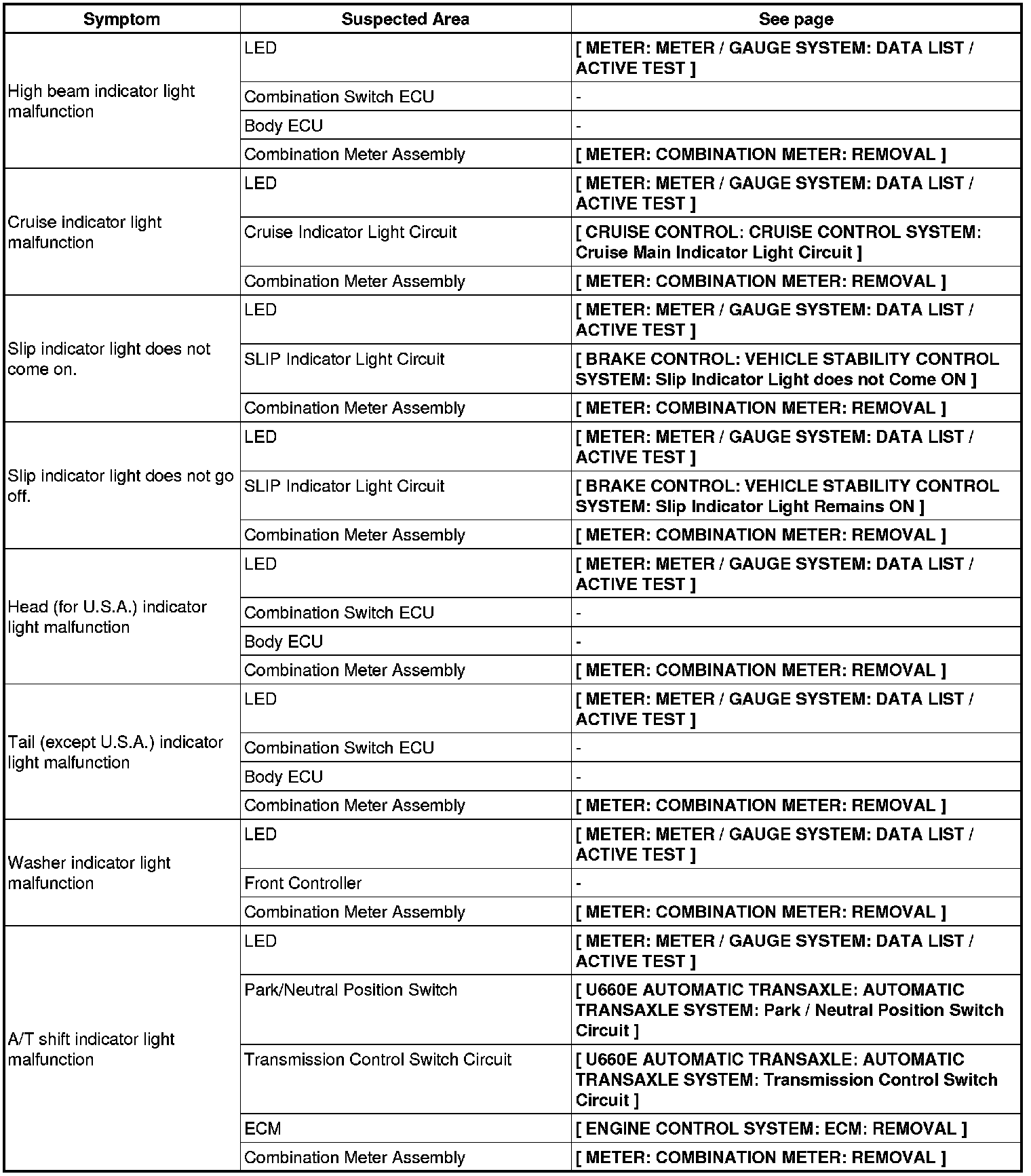

Warning Light, Indicator Light

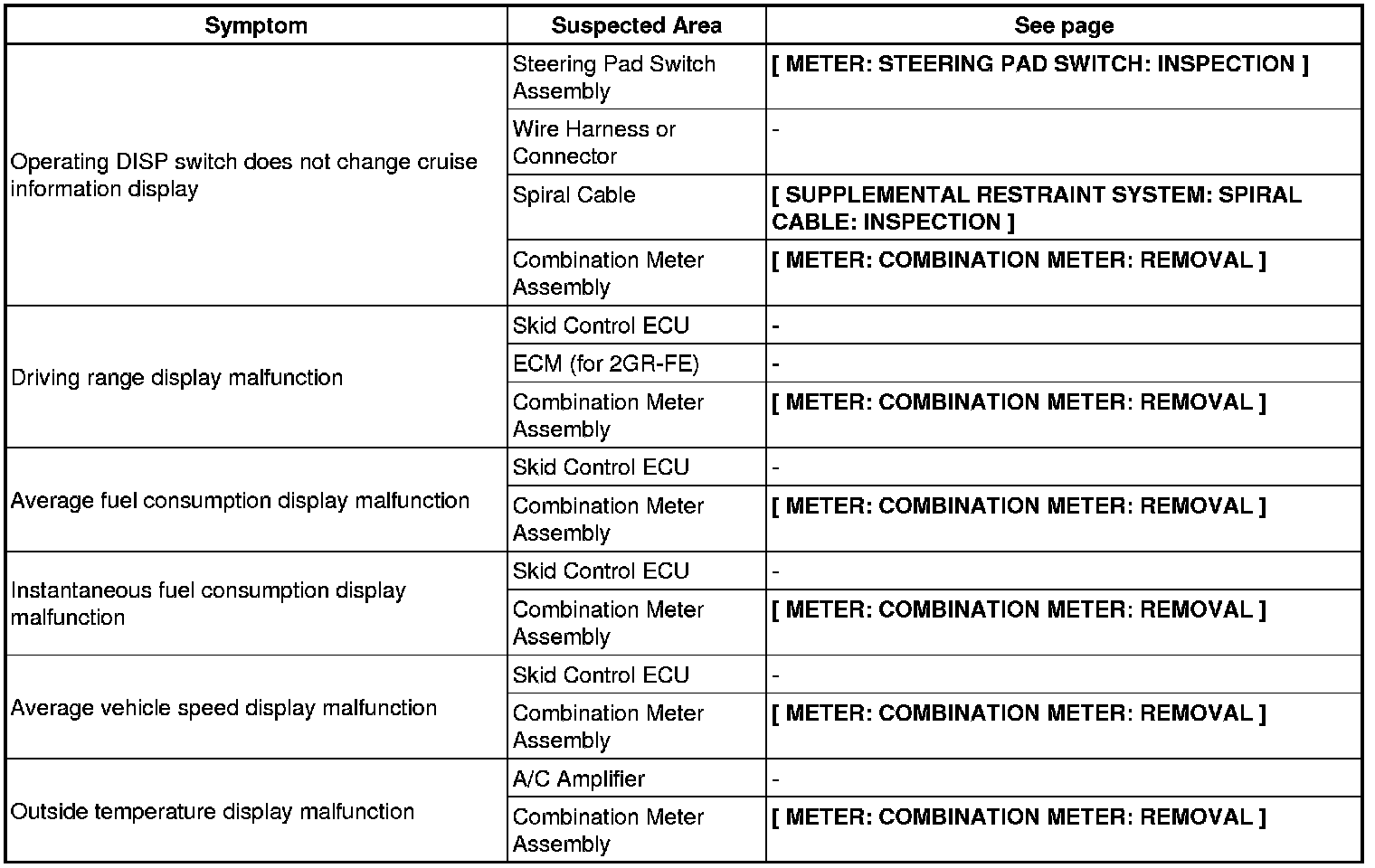

Cruise Information Display





Buzzer
