Terminals of ECU (from 12/2010)

METER: METER / GAUGE SYSTEM: TERMINALS OF ECU

1. COMBINATION METER ASSEMBLY

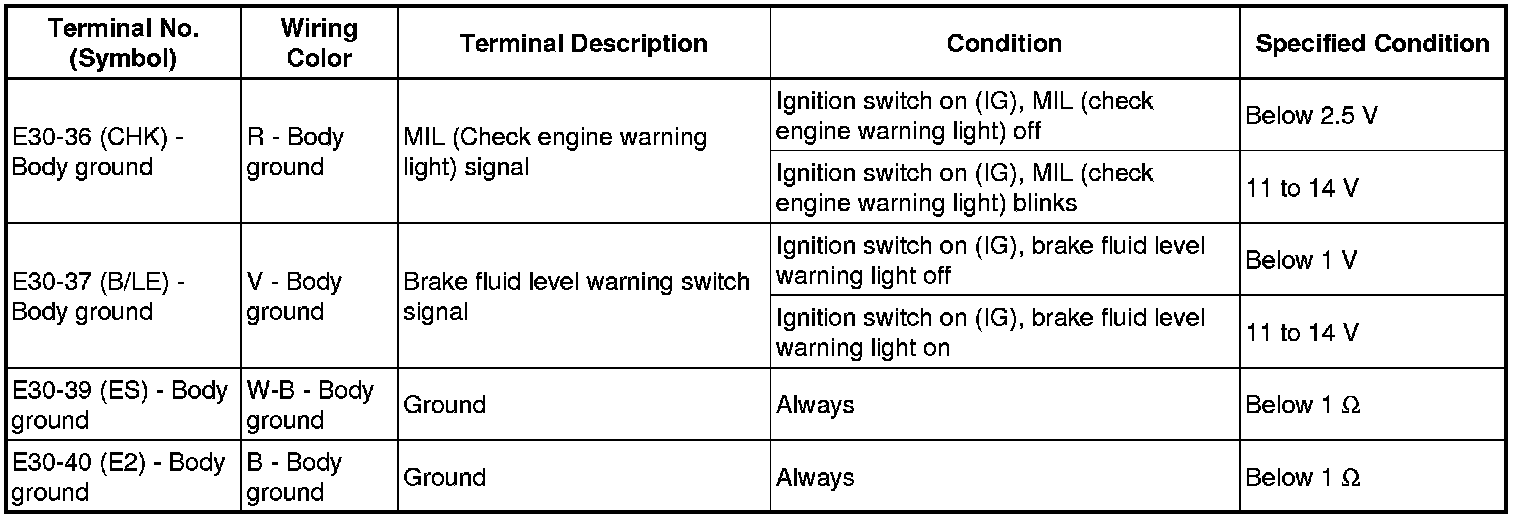

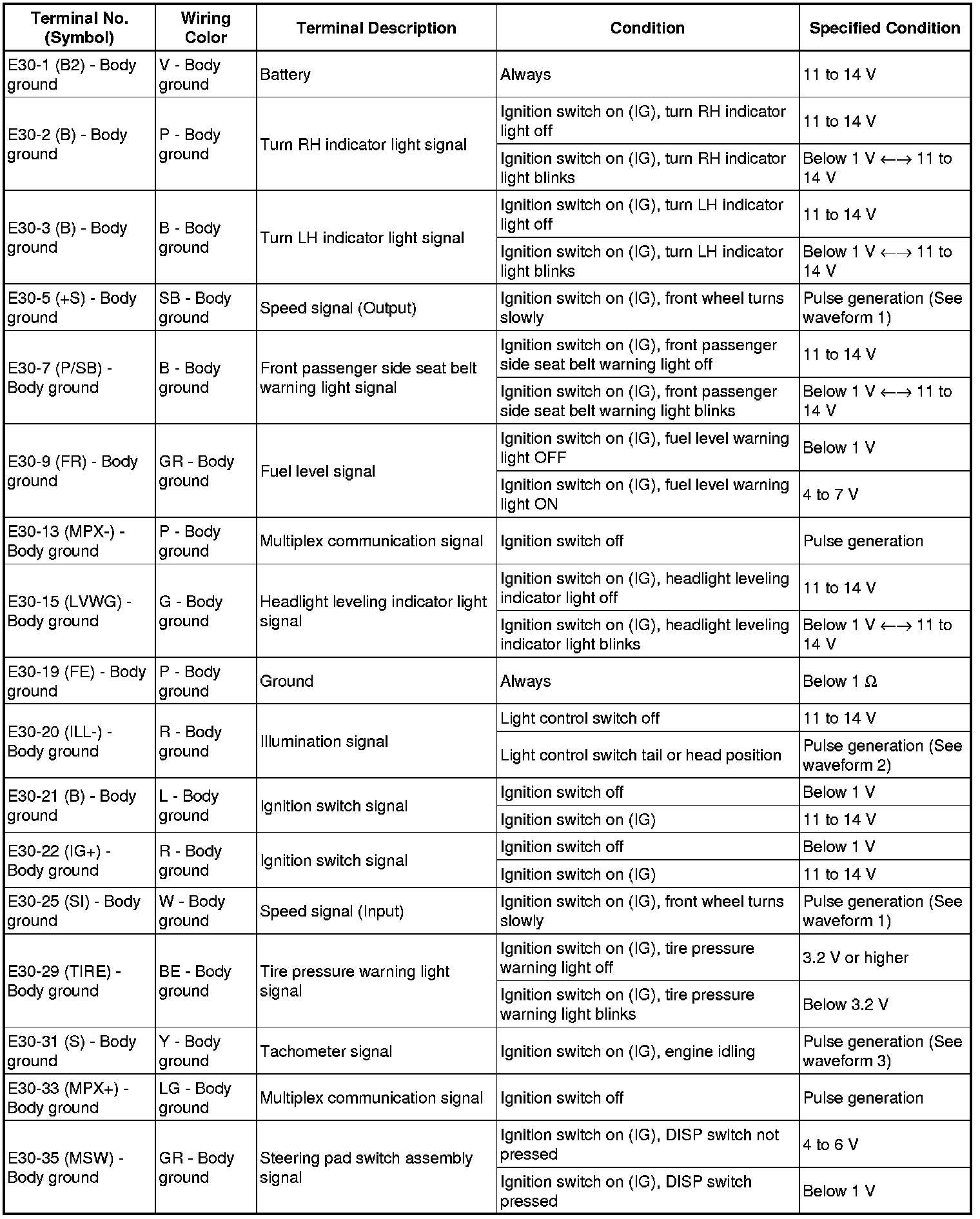

(a) Measure the voltage and resistance according to the value(s) in the table below.

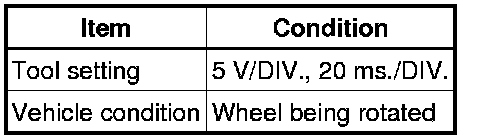

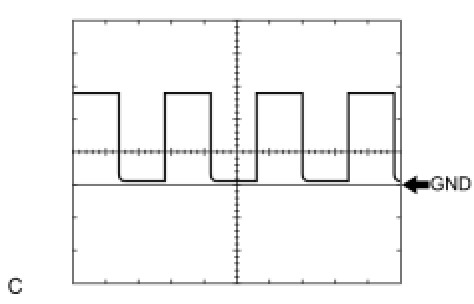

(b) Waveform 1 (Reference): Using an oscilloscope:









HINT

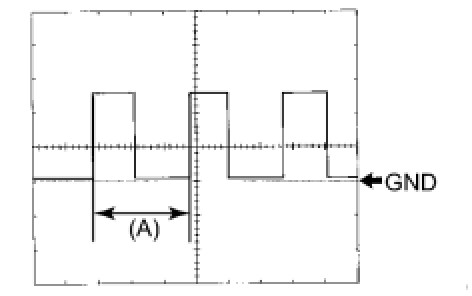

When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

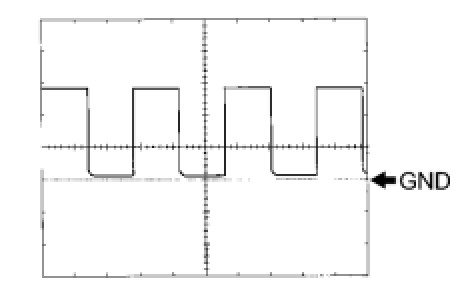

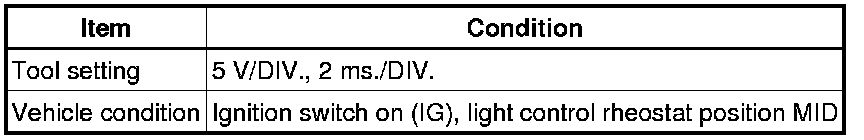

(c) Waveform 2 (Reference): Using an oscilloscope:

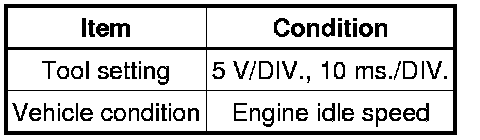

(d) Waveform 3 (Reference): Using an oscilloscope:









2. ECM

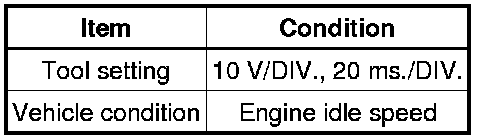

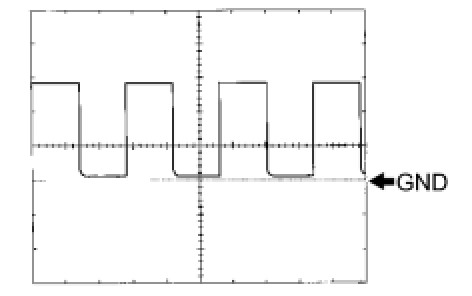

(a) Waveform 1 (Reference): Using an oscilloscope:

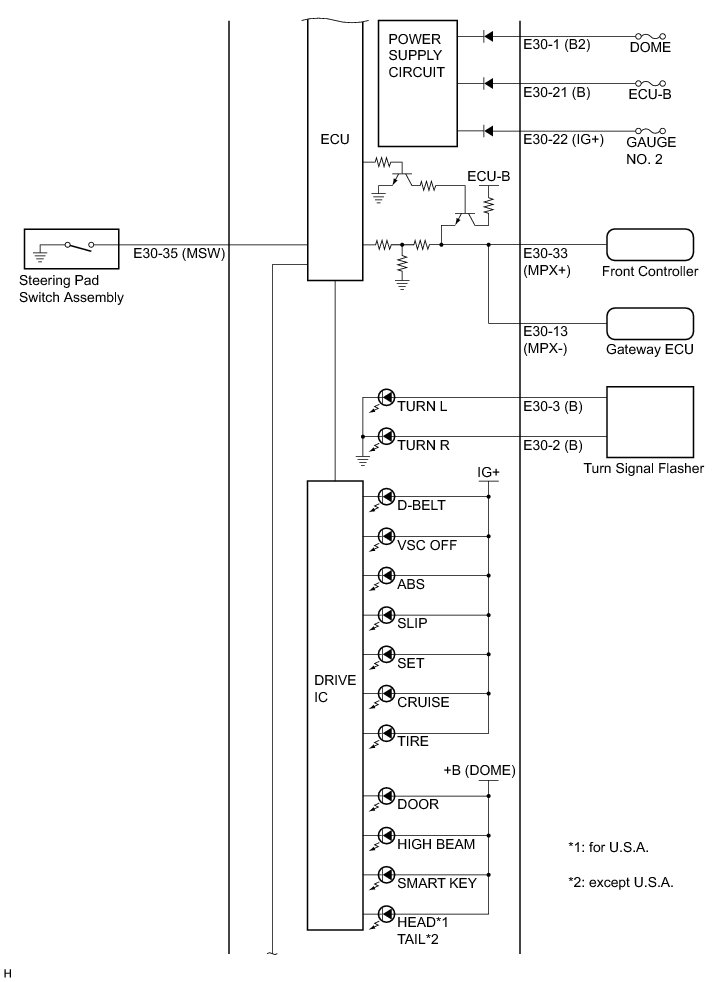

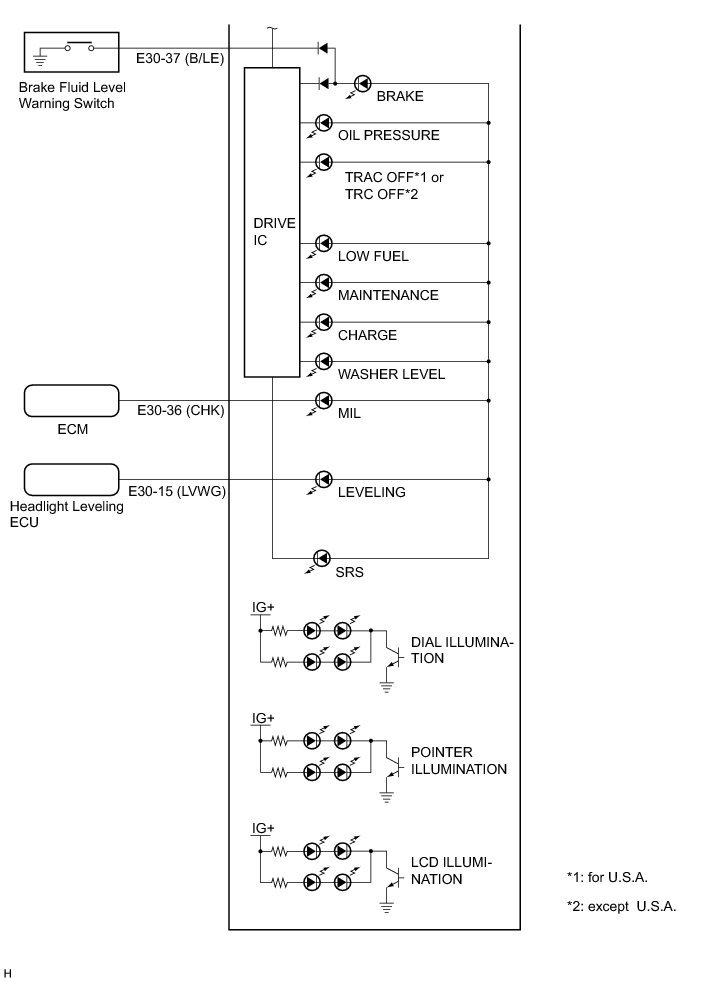

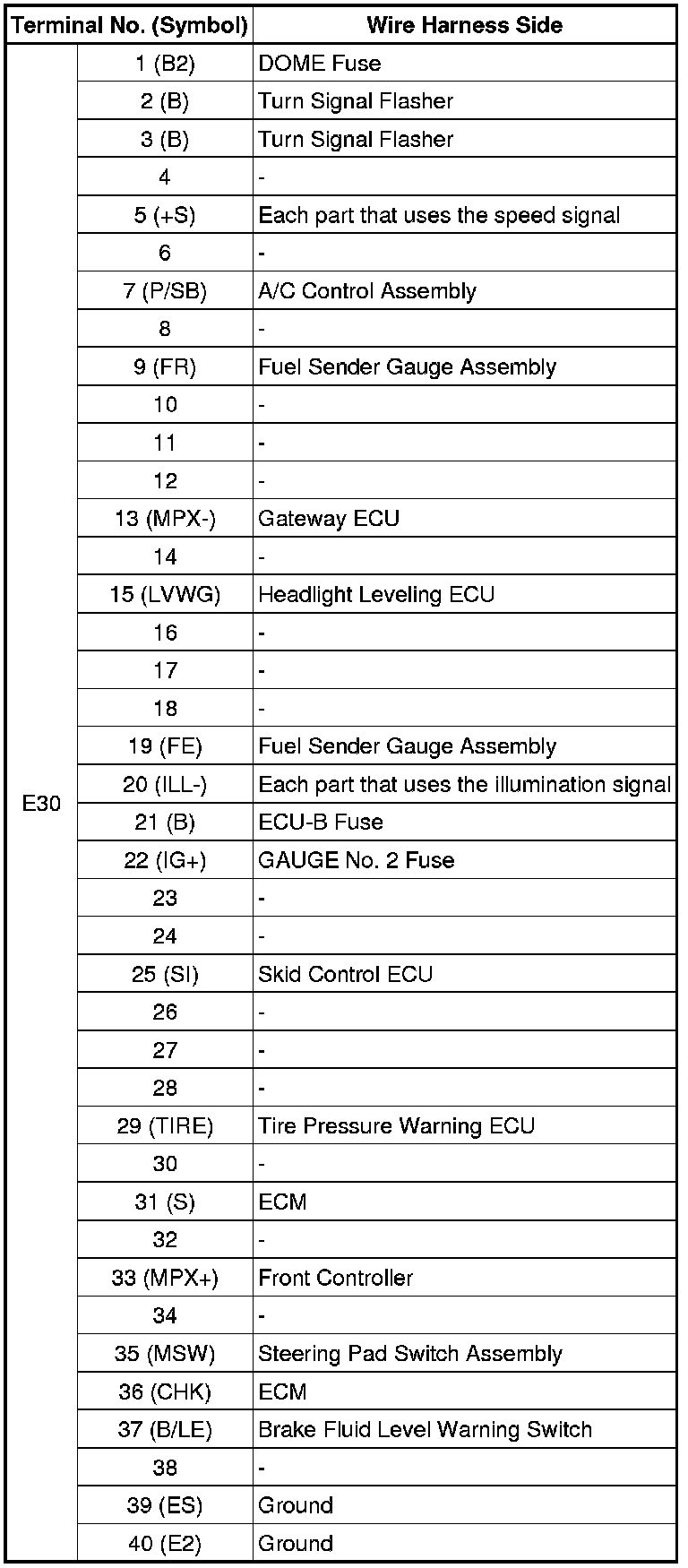

3. COMBINATION METER INNER CIRCUIT

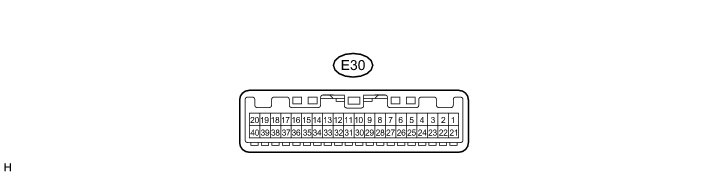

Connectors:
