System Diagram (to 12/2010)

METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

1. COMBINATION METER ASSEMBLY










SYSTEM DESCRIPTION

1. COMBINATION METER ASSEMBLY





HINT

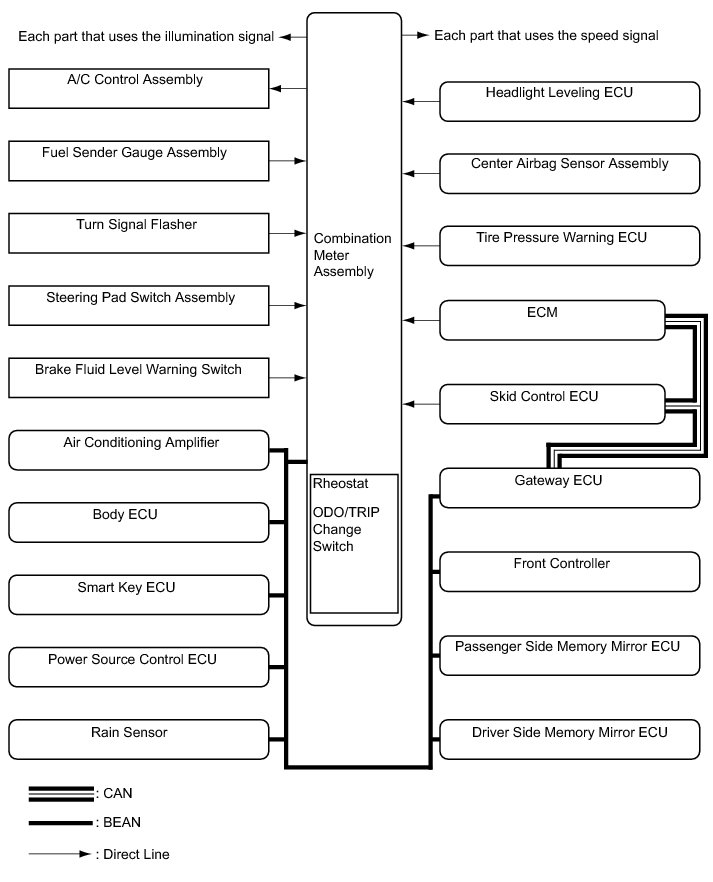

CAN signals are transmitted to or received from the combination meter assembly through the gateway ECU.

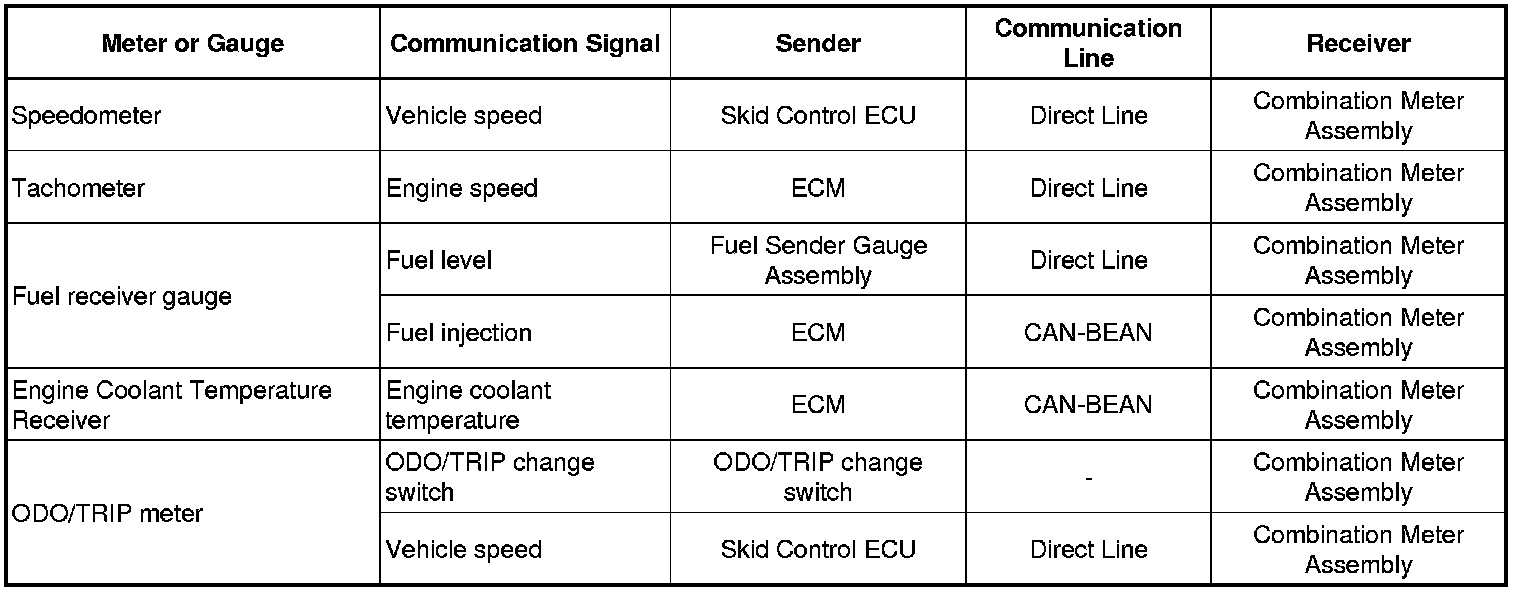

(a) Meter or Gauge

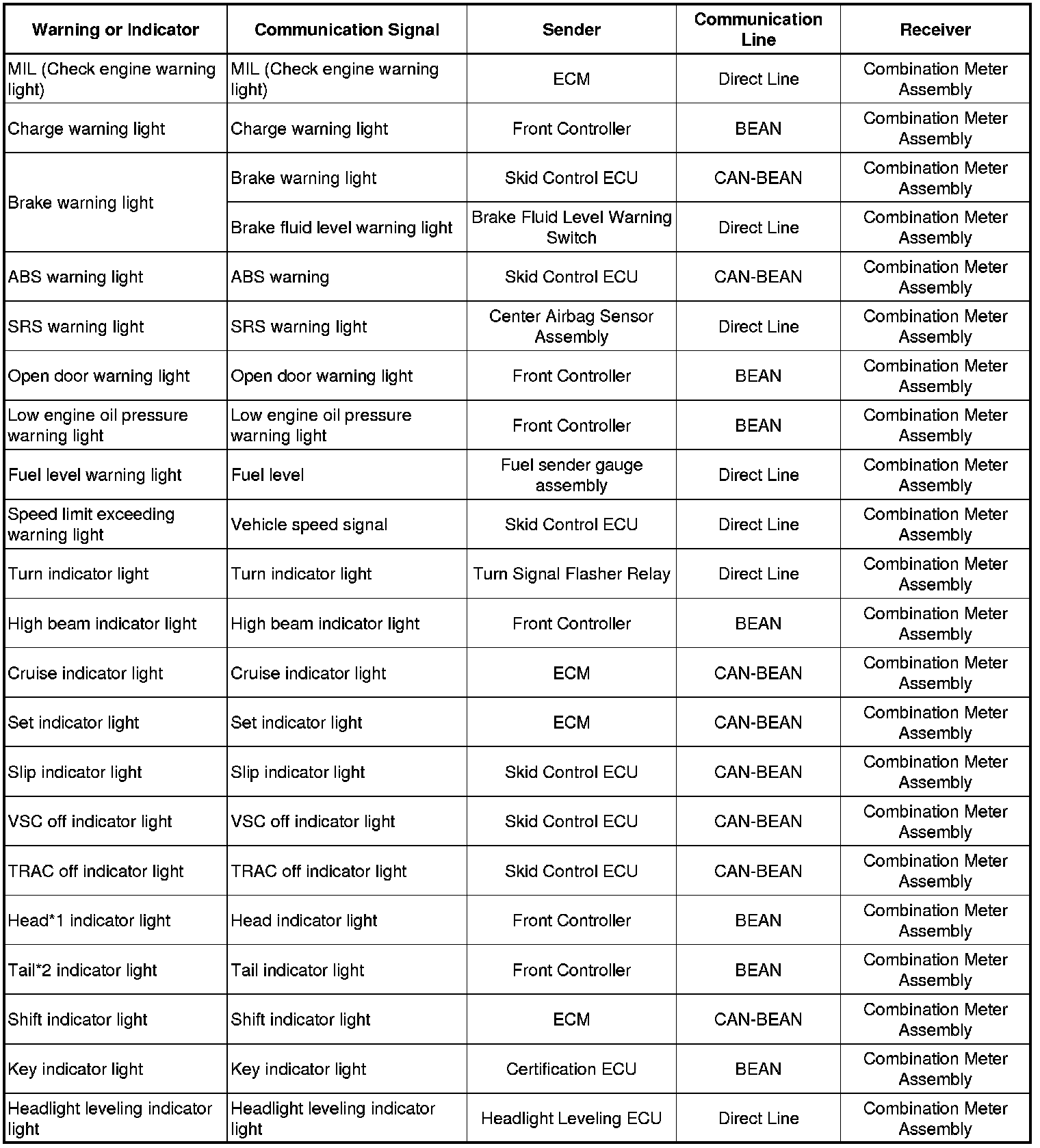

(b) Warning or Indicator





* *1: for U.S.A.

* *2: except U.S.A.

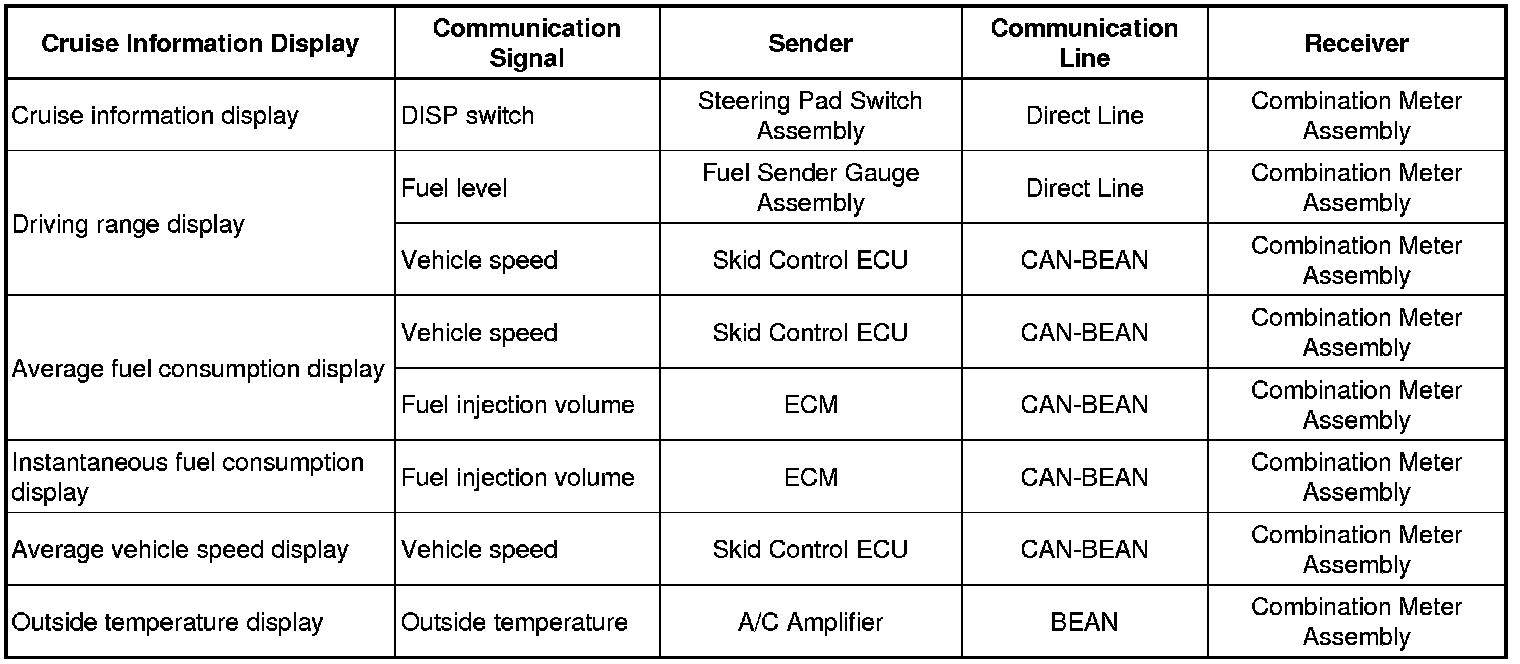

(c) Cruise Information Display

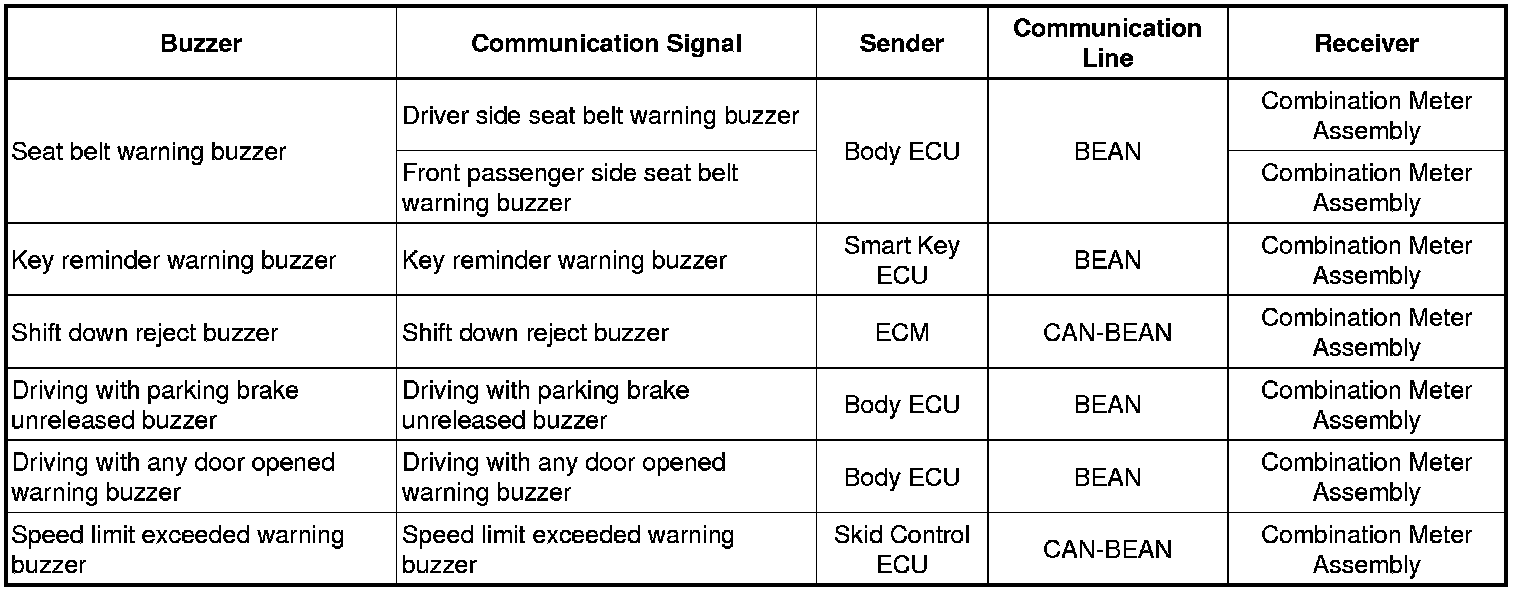

(d) Buzzer





2. LED CHECK

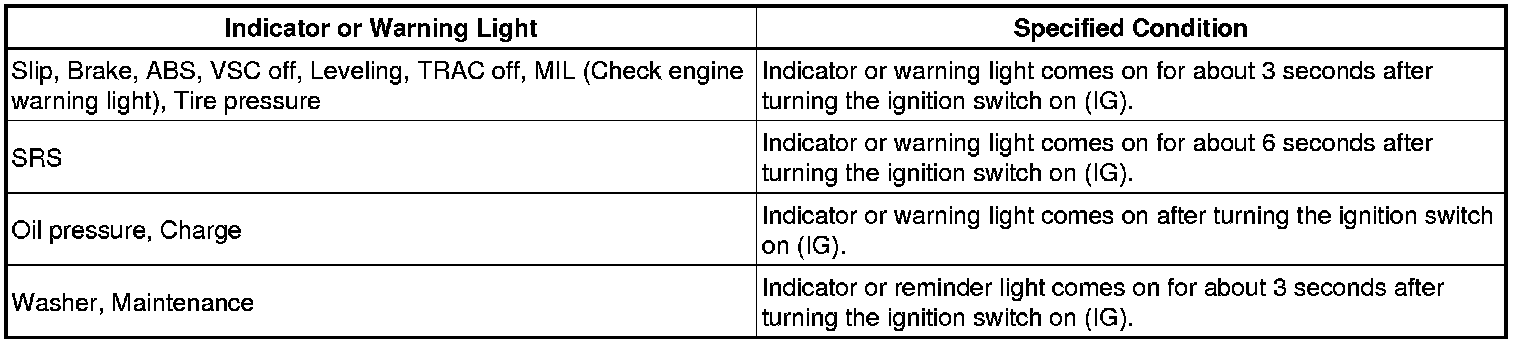

(a) Check the illumination function of the warning or indicator light listed below when turn the ignition switch on (IG).

OK:
