Problem Symptoms Table (to 12/2010)

AIR CONDITIONING: AIR CONDITIONING SYSTEM: PROBLEM SYMPTOMS TABLE

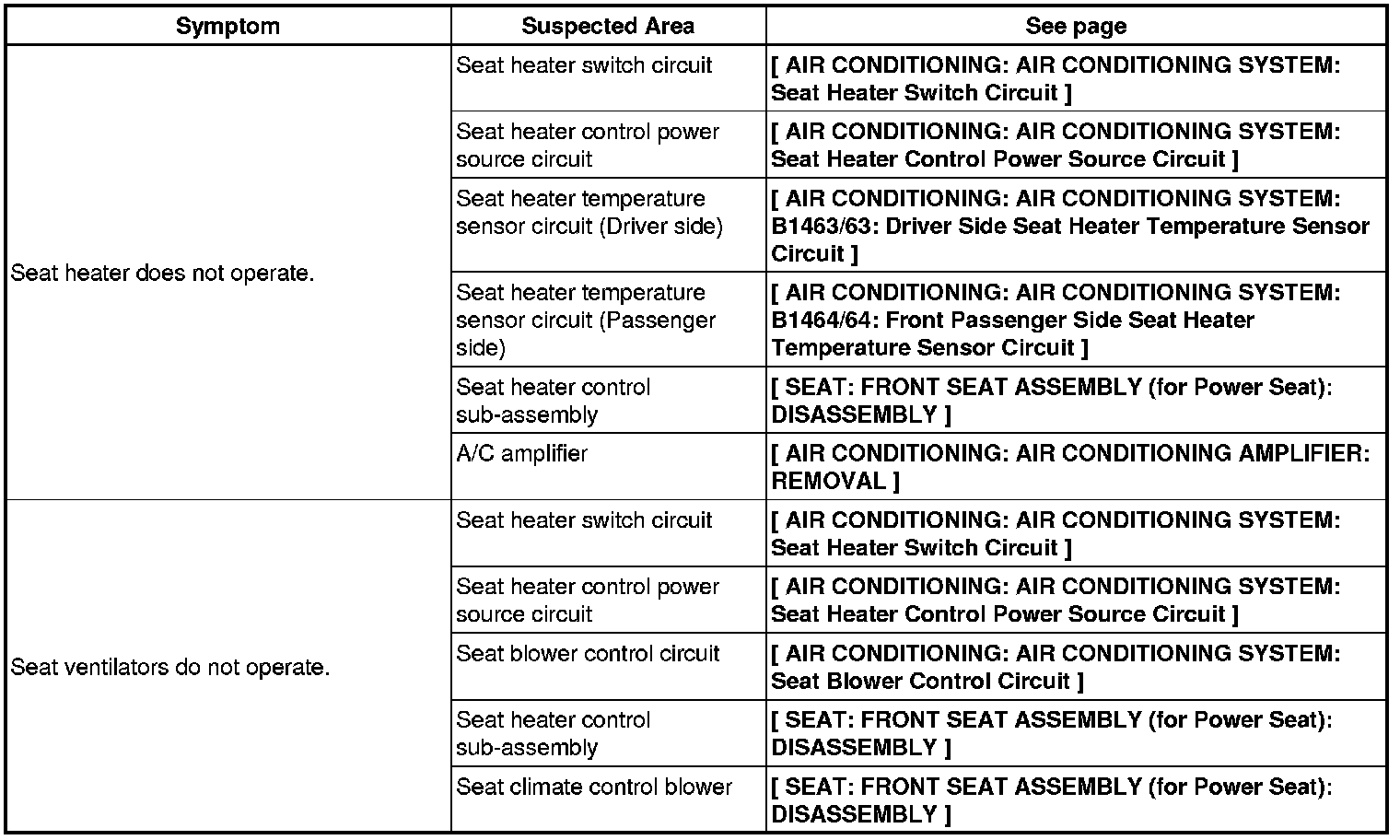

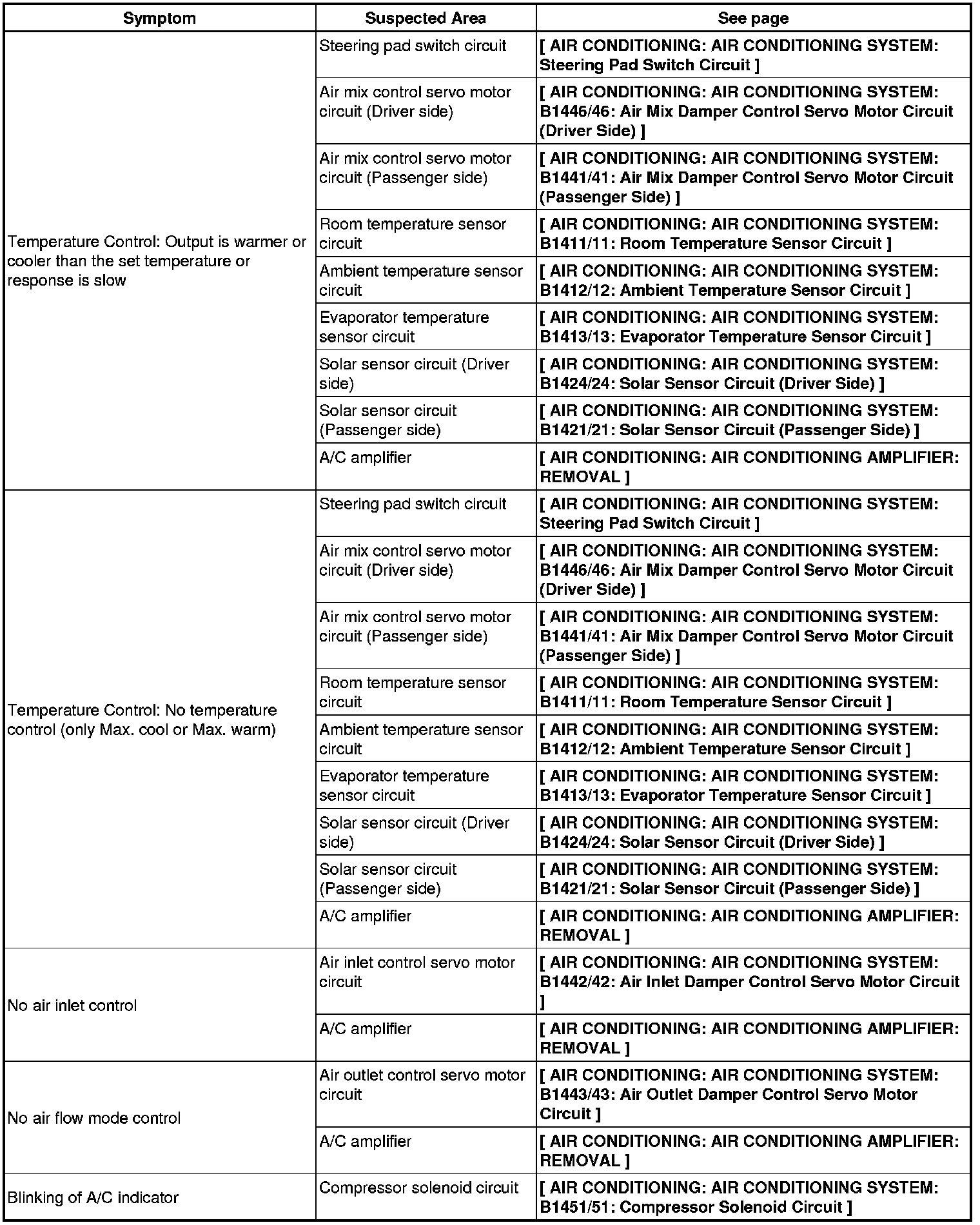

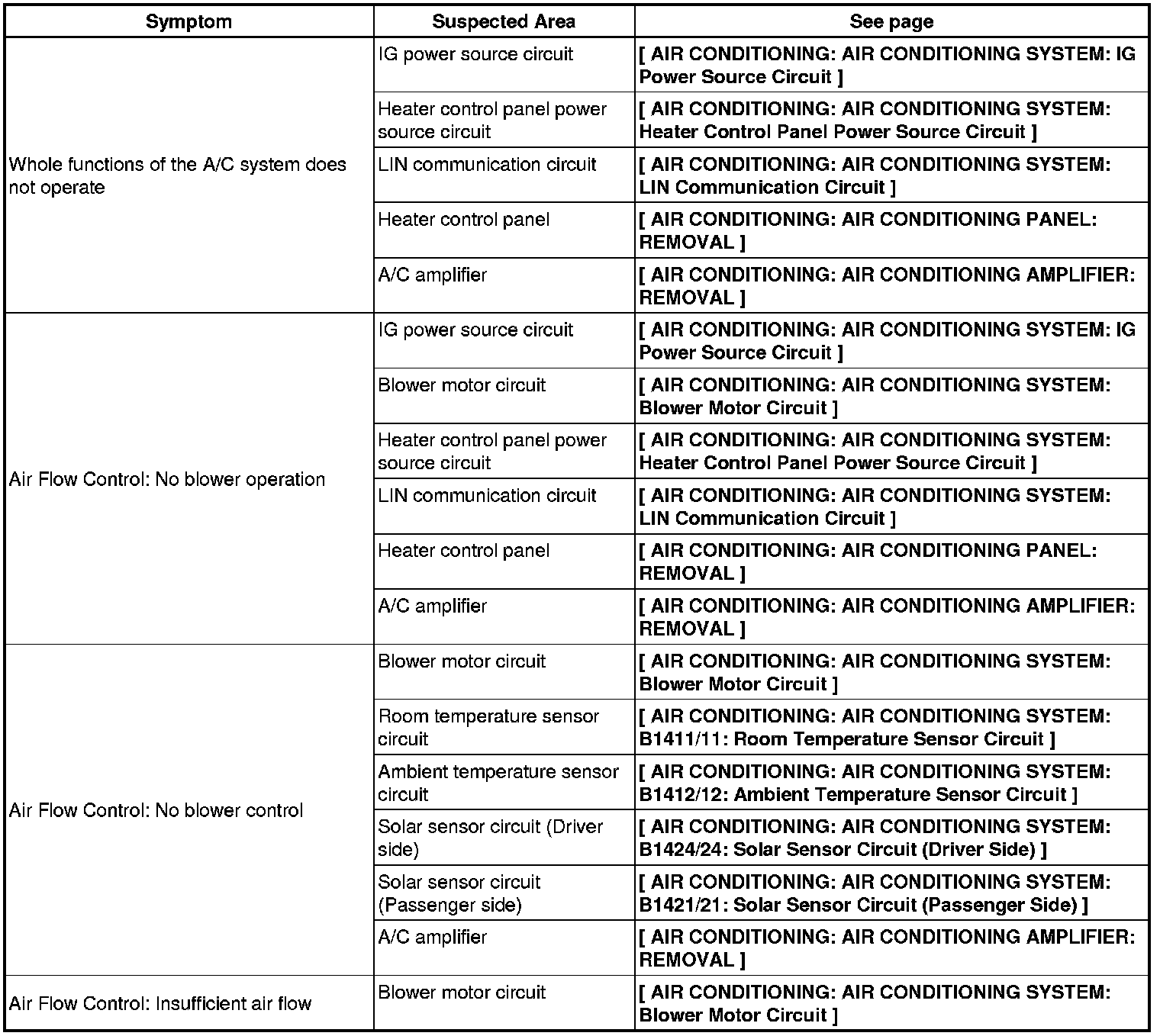

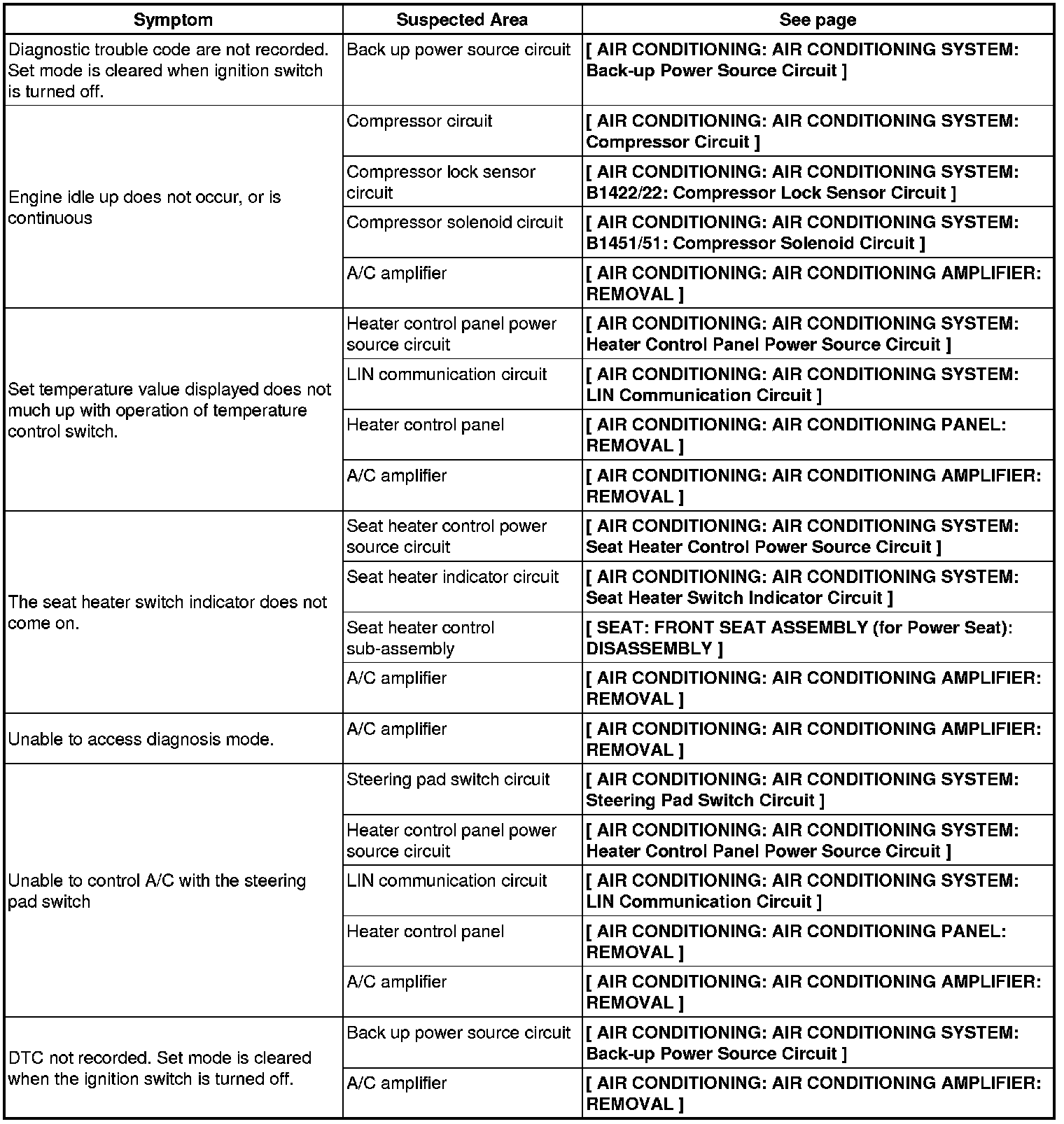

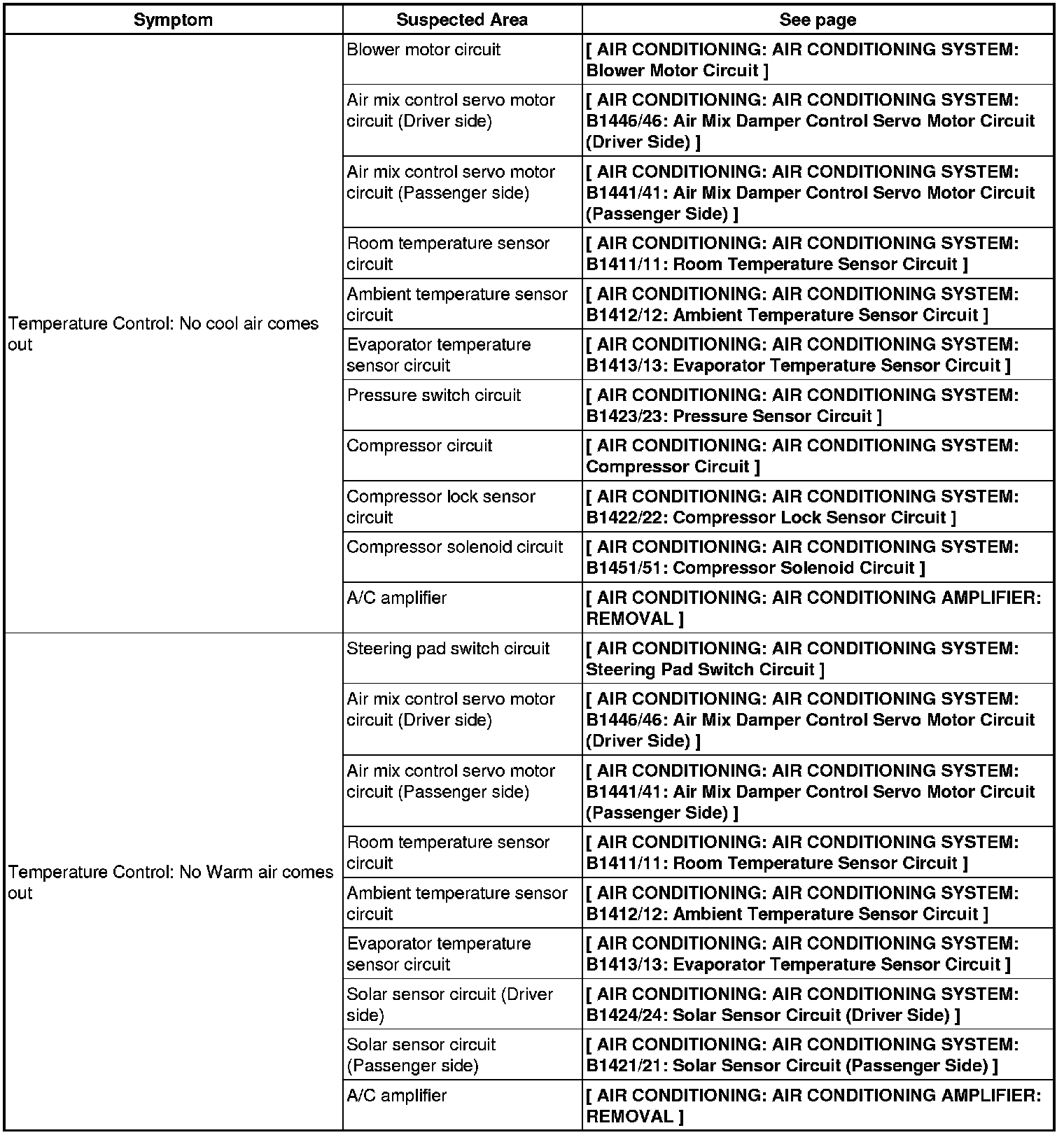

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting page.

HINT
Inspect the "Fuse" and "Relay" before confirming the suspected area as shown in the charts below.

If any malfunction still exists even after checking and confirming that all the circuits are normal, replace the ECU.

AIR CONDITIONING SYSTEM
