Replacement

2GR-FE LUBRICATION: OIL AND OIL FILTER: REPLACEMENT

CAUTION:
* Prolonged and repeated contact with engine oil will result in the removal of natural oils from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
* Precautions should be taken when replacing engine oil to minimize the risk of your skin making contact with used engine oil. Protective clothing and gloves that cannot be penetrated by oil should be worn. The skin should be washed with soap and water, or use water-less hand cleaner, to remove any used engine oil thoroughly. Do not use gasoline, thinners, or solvents.
* In order to preserve the environment, used oil and used oil filters must be disposed of at designated disposal sites.
1. REMOVE OIL FILTER ELEMENT

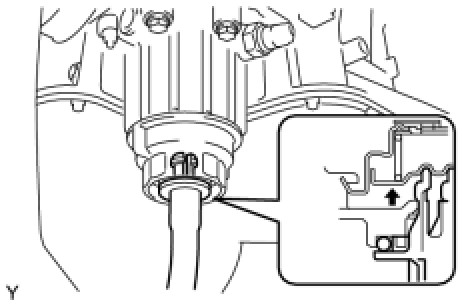

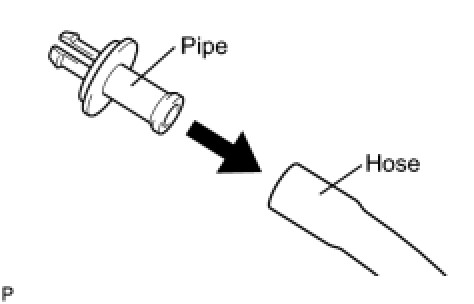

(a) Connect the hose (15 mm) to the pipe.

(b) Remove the oil filter drain plug from the oil filter cap.

NOTICE:

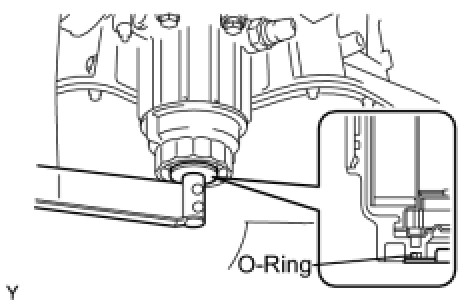

Be sure to insert the pipe with the O-ring installed on the oil filter cap side.

HINT
Place the hose end into a container before draining the oil from the hose.

(d) Make sure that oil is completely drained, and remove the pipe and O-ring.

HINT

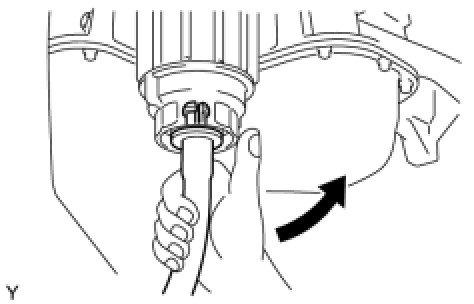

Be sure to turn the pipe in the direction of the arrow to remove it.

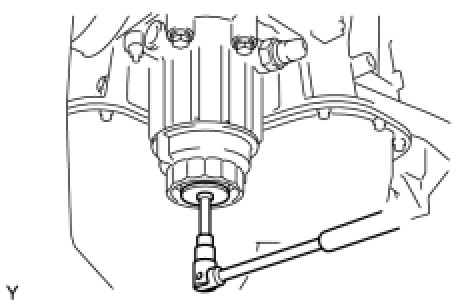

(e) Using SST, remove the oil filter cap.

SST : 09228-06501

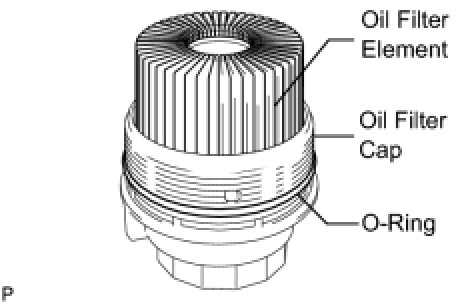

(f) Remove the oil filter element and O-ring from the oil filter cap.

NOTICE:
Do not use any tools to remove the O-ring in order to prevent the cap from being damaged. Be sure to remove it by hand.

2. INSTALL OIL FILTER ELEMENT

(a) Clean the inside of the oil filter cap, threads, and O-ring groove.

(b) Apply a light coat of engine oil to a new O-ring and install it to the oil filter cap.

NOTICE:
Make sure that the O-ring does not get twisted on the groove.

(c) Install a new oil filter element to the oil filter cap.

(d) Remove all dirt and foreign matter from the installation surface and the inside of the cap on the engine side.

(e) Apply a light coat of engine oil to the O-ring again and install the oil filter cap.

NOTICE:
Make sure that the O-ring does not get caught between the parts.

(f) Using SST, install the oil filter cap.

SST : 09228-06501

Torque : 25 Nm (255 kgf-cm, 18 ft-lbf)

NOTICE:
Make sure that there is no clearance between the parts after tightening the oil filter cap.

(g) Apply a light coat of engine oil to a new O-ring and install it to the oil filter cap.

NOTICE:
Remove all dirt and foreign matter from the installation surface.

(h) Install the oil filter drain plug to the oil filter cap.

Torque : 13 Nm (127 kgf-cm, 10 ft-lbf)

NOTICE:
Make sure that the O-ring does not get caught between the parts.

3. ADD ENGINE OIL

(a) Add fresh engine oil and install the oil filler cap.

Engine oil:

Standard capacity:

4. INSPECT FOR OIL LEAK

(a) Start the engine. Inspect for oil leak from the connected parts of the oil filter cap and oil filter drain plug.
