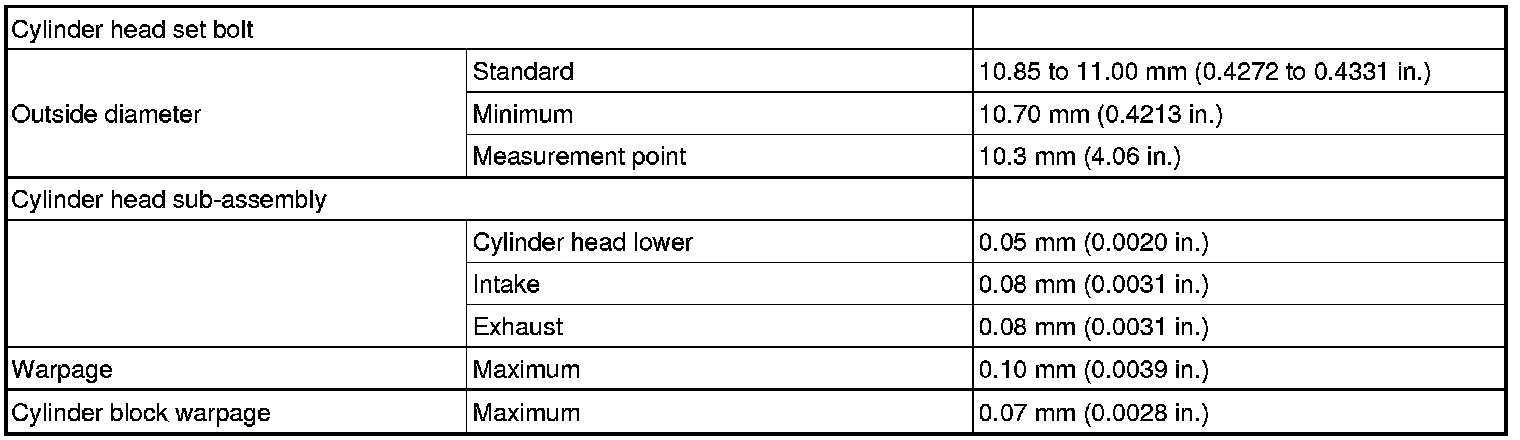

Cylinder Head Assembly: Specifications
CYLINDER HEAD SUB-ASSEMBLY RHThe cylinder head bolts are tightened in 3 progressive steps.
Step 1
Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 8 cylinder head bolts with the plate washers in several steps and in the sequence shown in the illustration.
Torque 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2
Mark the cylinder head bolt head with paint as shown in the illustration.
Tighten the cylinder head bolts another 90°.
Step 3
Tighten the cylinder head bolts by an additional 90°.
Check that the painted mark is now facing rearward.
CYLINDER HEAD SUB-ASSEMBLY LH
the cylinder head bolts are tightened in 3 progressive steps.
Step 1
Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 8 cylinder head bolts with the plate washers in several steps in the sequence shown in the illustration.
Torque 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2
Mark the cylinder head bolt head with paint as shown in the illustration.
Tighten the cylinder head bolts another 90°.
Step 3
Tighten the cylinder head bolts by an additional 90°.
Check that the painted mark is now facing rearward.
CYLINDER HEAD
CAMSHAFT BEARING CAP RH
Temporarily tighten the 8 bolts in the order shown in the illustration.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
CAMSHAFT BEARING CAP
Temporarily tighten the 8 bolts in the order shown in the illustration.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
CAMSHAFT HOUSING SUB-ASSEMBLY LH
Install the camshaft housing sub-assembly LH and tighten the 13 bolts in the order shown in the illustration.
Torque 28 Nm (286 kgf-cm, 21 ft-lbf)
Tighten the 8 bolts in the order shown in the illustration.
Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
CAMSHAFT HOUSING SUB-ASSEMBLY RH
Install the camshaft housing sub-assembly RH and tighten the 12 bolts in the order shown in the illustration.
Torque 28 Nm (286 kgf-cm, 21 ft-lbf)
Tighten the 8 bolts in the order shown in the illustration.
Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
