Inspection

2GR-FE COOLING: COOLING FAN SYSTEM: INSPECTION

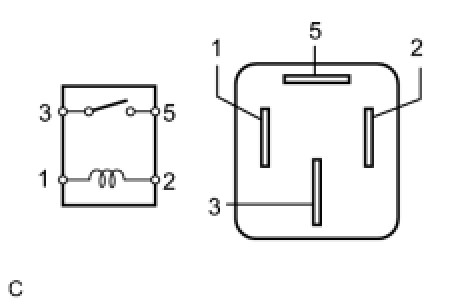

1. INSPECT RELAY

(a) Check the resistance of the relay.

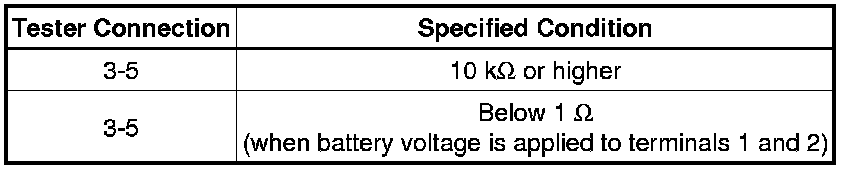

Resistance:





If the result is not as specified, replace the relay.

2. INSPECT ECT SWITCH

(a) Check the resistance.

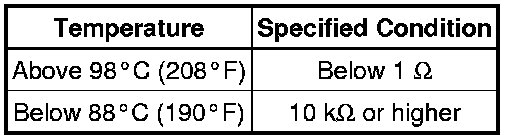

Resistance:





If the result is not as specified, replace the switch.

NOTICE:
When checking the ECT switch in the water, the terminals should be kept dry. After the check, dry the switch.
