How to Proceed with Troubleshooting (from 12/2010)

CRUISE CONTROL: CRUISE CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. PROBLEM SYMPTOM CONFIRMATION

NEXT -- Continue to next step.

3. CHECK MULTIPLEX COMMUNICATION SYSTEM

Refer to the how to proceed with troubleshooting Reading and Clearing Diagnostic Trouble Codes.

(a) Check for output DTCs.

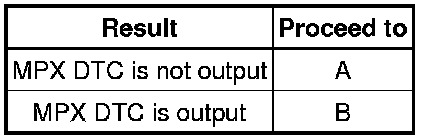

Result:





HINT
The ECM of this system is connected to the multiplex communication system. Therefore, before starting troubleshooting, make sure to check that there is no trouble in the multiplex communication system.

B -- PROCEED TO "MULTIPLEX COMMUNICATION SYSTEM"
A -- Continue to next step.

4. CHECK CAN COMMUNICATION SYSTEM

Refer to the precaution Precaution (from 12/2010).

(a) Check for output DTCs.

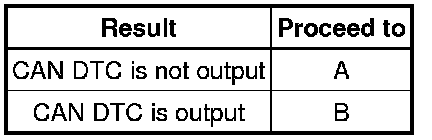

Result:





HINT
The ECM of this system is connected to the CAN communication system. Therefore, before starting troubleshooting, make sure to check that there is no trouble in the CAN communication system.

B -- PROCEED TO "CAN COMMUNICATION SYSTEM"
A -- Continue to next step.

5. DTC CHECK AND CLEAR

Refer to the DTC check/clear DTC Check / Clear (from 12/2010).

NEXT -- Continue to next step.

6. DTC CHECK (OTHER THAN MPX AND CAN SYSTEM DTC)

Refer to the DTC check/clear DTC Check / Clear (from 12/2010).

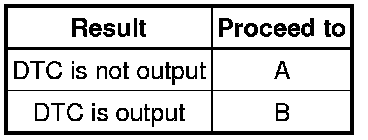

Result:





A -- GO TO STEP 8
B -- Continue to next step.

7. DTC CHART

Refer to the diagnostic trouble code chart Diagnostic Trouble Code Chart (from 12/2010).

NEXT -- GO TO STEP 11

8. PROBLEM SYMPTOM SIMULATION

Result:





B -- GO TO STEP 10
A -- Continue to next step.

9. SYMPTOM SIMULATION

Refer to the electronic circuit inspection procedure Electronic Circuit Inspection Procedure.

NEXT -- Continue to next step.

10. PROBLEM SYMPTOMS TABLE

Refer to the problem symptoms table Problem Symptoms Table (from 12/2010).

NEXT -- Continue to next step.

11. CIRCUIT INSPECTION

NEXT -- Continue to next step.

12. TERMINALS OF ECU

Refer to the terminals of ECU Pinout Values and Diagnostic Parameters.

NEXT -- Continue to next step.

13. IDENTIFICATION OF PROBLEM

NEXT -- Continue to next step.

14. REPAIR OR REPLACE

NEXT -- Continue to next step.

15. CONFIRMATION TEST

NEXT -- END
