Cruise Main Indicator Light Circuit

CRUISE CONTROL: CRUISE CONTROL SYSTEM: Cruise Main Indicator Light Circuit
- Cruise Main Indicator Light Circuit

DESCRIPTION

* The ECM detects a cruise control switch signal and sends it to the combination meter via CAN and BEAN. Then the CRUISE main indicator light comes on.

* The CRUISE main indicator light circuit uses CAN and BEAN for communication. If there is a malfunction in this circuit, check for DTCs in the CAN communication system and multiplex communication system before troubleshooting this circuit.

INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Combination Meter / Active Test.

(e) Check the CRUISE main indicator light by performing the Active Test.

Combination Meter:





OK:

Indicator light blinks or goes off according to tester operation.

NG -- REPLACE COMBINATION METER
OK -- Continue to next step.

2. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Cruise Control / Data List.

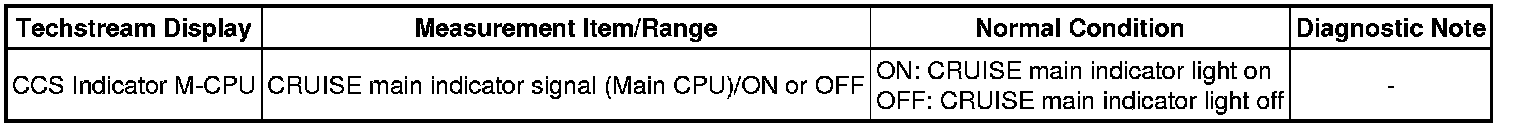

(e) Check the Data List for proper functioning of the CRUISE main indicator light.

Cruise Control:





OK:

The result will be same as above according to switch operation.

NG -- REPLACE ECM

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
