Cruise Control Switch Circuit (to 12/2010)

CRUISE CONTROL: CRUISE CONTROL SYSTEM: Cruise Control Switch Circuit
- Cruise Control Switch Circuit

DESCRIPTION

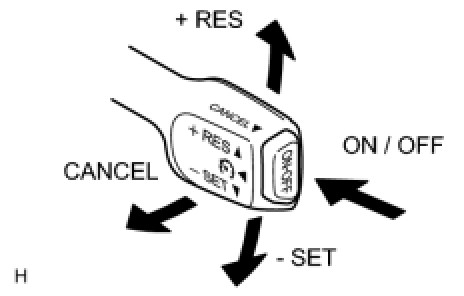

The cruise control main switch operates 7 functions: SET, COAST, TAP-DOWN, RESUME, ACCEL, TAP-UP, and CANCEL. The SET, TAP-DOWN and COAST functions, and the RESUME, TAP-UP and ACCEL functions are operated with the same switch. The cruise control main switch is an automatic return type switch which turns on only while it is being operated in each arrow direction and turns off after being released. The internal contact point of the cruise control main switch is turned on with the switch operation. Then the ECM reads the resistance value that has been changed by the switch operation to control SET, COAST, RESUME, ACCEL and CANCEL.

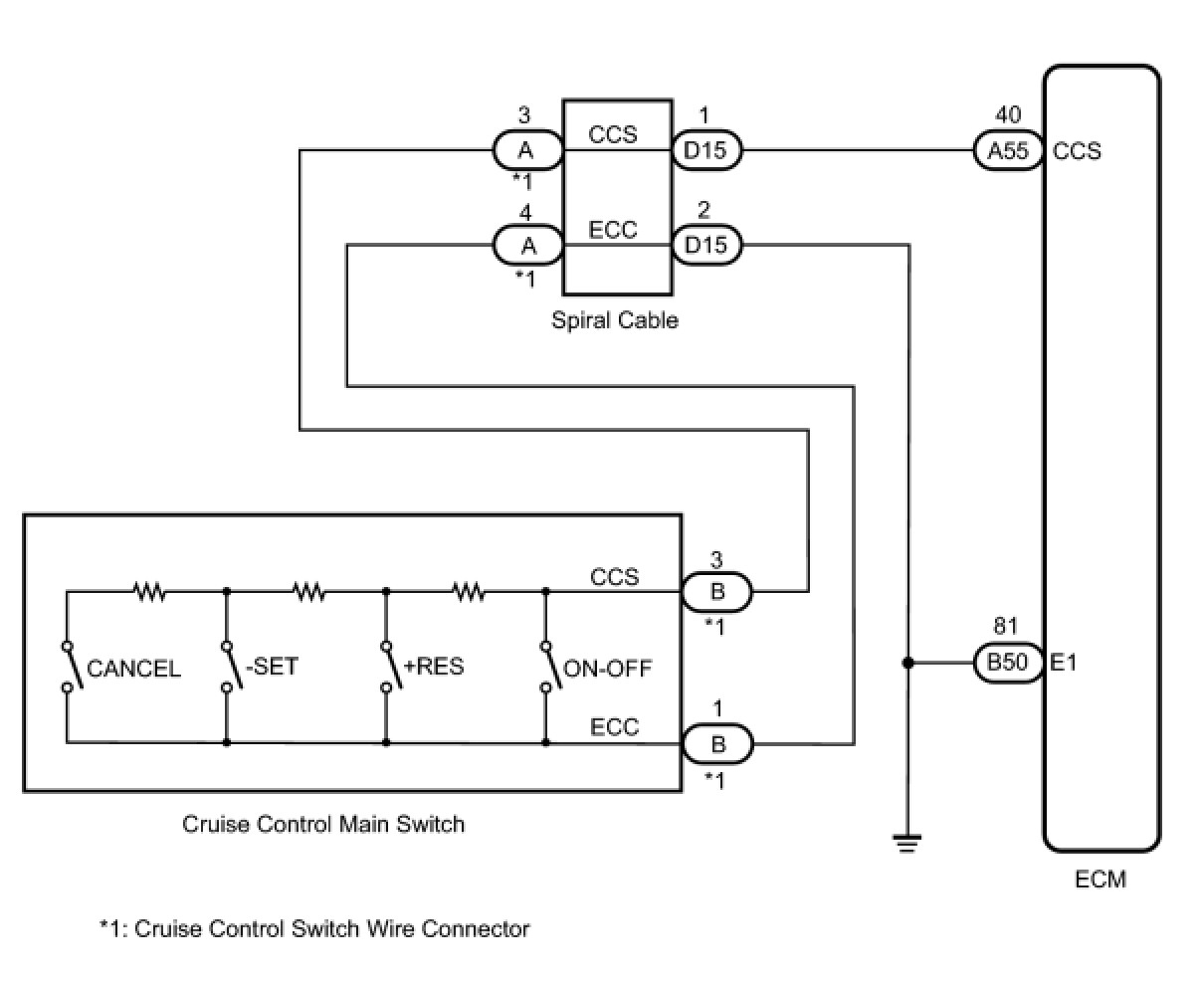

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM





(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Cruise Control / Data List.

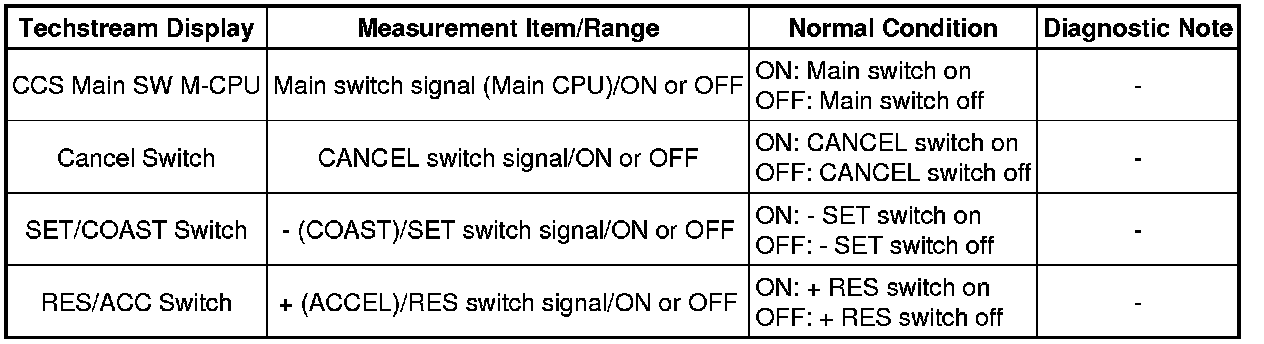

(e) Check the Data List for proper functioning of the cruise control main switch.

Cruise Control:





OK:

The display changes as shown above according to switch operation.

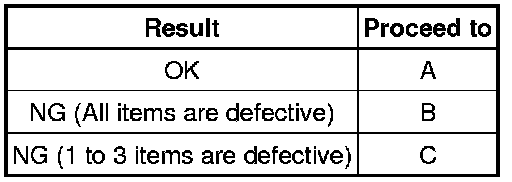

Result:





C -- REPLACE CRUISE CONTROL MAIN SWITCH

A -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
B -- Continue to next step.

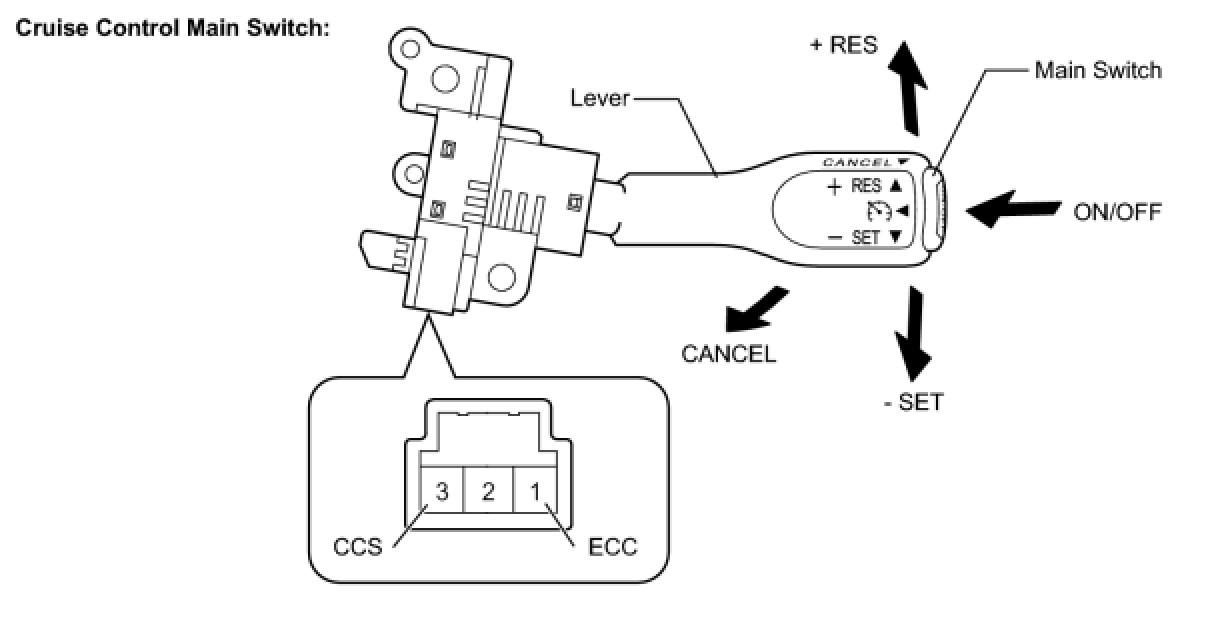

2. INSPECT CRUISE CONTROL MAIN SWITCH

(a) Disconnect the cruise control main switch connector.

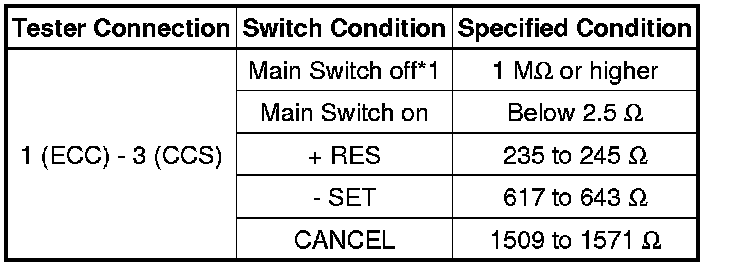

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





*1: Lever is in the neutral position

(c) Connect the cruise control main switch connector.

NG -- REPLACE CRUISE CONTROL MAIN SWITCH
OK -- Continue to next step.

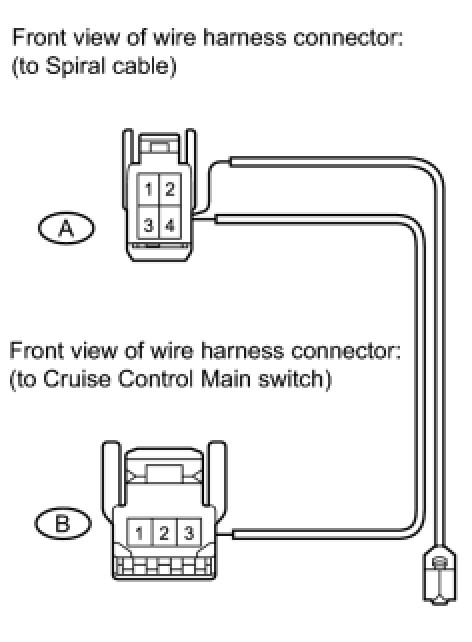

3. CHECK HARNESS AND CONNECTOR (CRUISE CONTROL SWITCH WIRE)

(a) Disconnect the cruise control switch wire connector from the spiral cable and cruise control main switch.

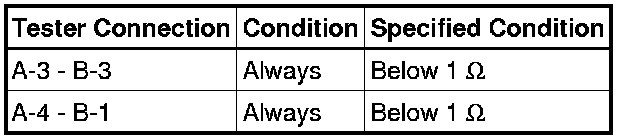

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Connect the cruise control switch wire connector to the spiral cable and cruise control main switch.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. INSPECT SPIRAL CABLE

NOTICE:
The spiral cable is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable may prevent the airbag from deploying. Be sure to read the page shown in the brackets.

(a) Remove the spiral cable Removal (to 12/2010).





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





HINT
The spiral cable makes a maximum of approximately 5 rotations.

(c) Install the spiral cable Installation (to 12/2010).

NG -- REPLACE SPIRAL CABLE
OK -- Continue to next step.

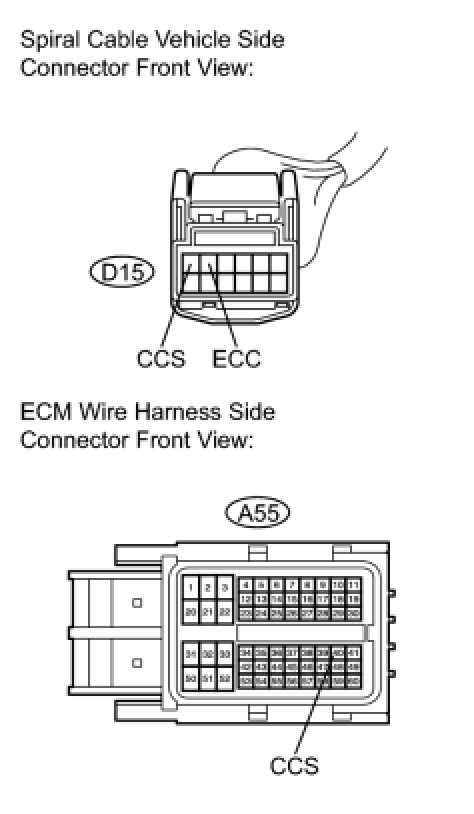

5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - ECM AND BODY GROUND)

(a) Disconnect the spiral cable.





(b) Disconnect the ECM connector.

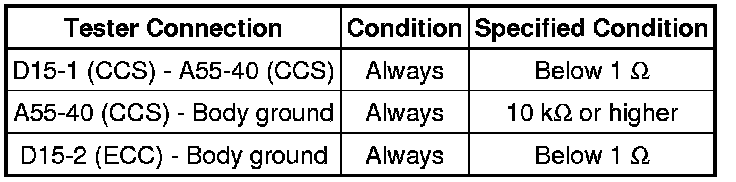

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(d) Connect the ECM connector.

(e) Connect the spiral cable.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
