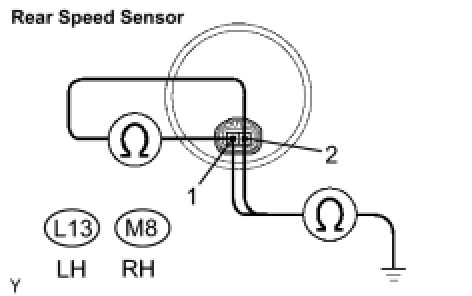

Rear Speed Sensor

BRAKE CONTROL: REAR SPEED SENSOR: INSPECTION

1. INSPECT REAR SPEED SENSOR

(a) Disconnect the rear speed sensor connector.





(b) Measure the resistance according to the value(s) in the table below.

Resistance:

LH

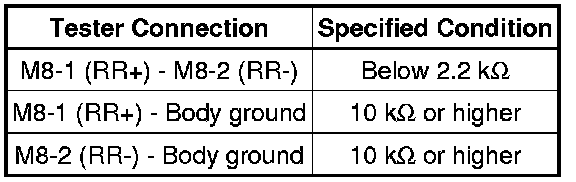

RH
