Removal

BRAKE CONTROL: FRONT SPEED SENSOR: REMOVAL

1. REMOVE FRONT WHEEL

2. REMOVE FRONT FENDER LINER LH

3. REMOVE FRONT SPEED SENSOR

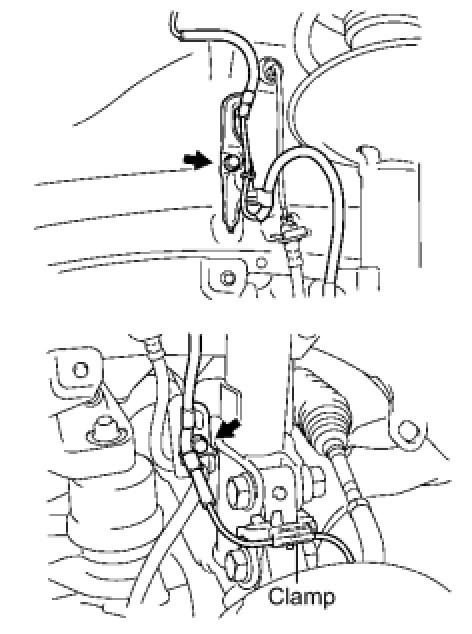

(a) Disconnect the speed sensor connector and clamp.





(b) Remove the 2 bolts and separate the speed sensor harness from the body and shock absorber assembly.





(c) Remove the clamp from the steering knuckle.

(d) Remove the bolt and the front speed sensor.





NOTICE:
* Prevent foreign matter from attaching to the sensor tip.
* Clean the installation hole and surface for the speed sensor every time the speed sensor is removed.
