Problem Symptoms Table (from 12/2010)

BRAKE: BRAKE SYSTEM: PROBLEM SYMPTOMS TABLE

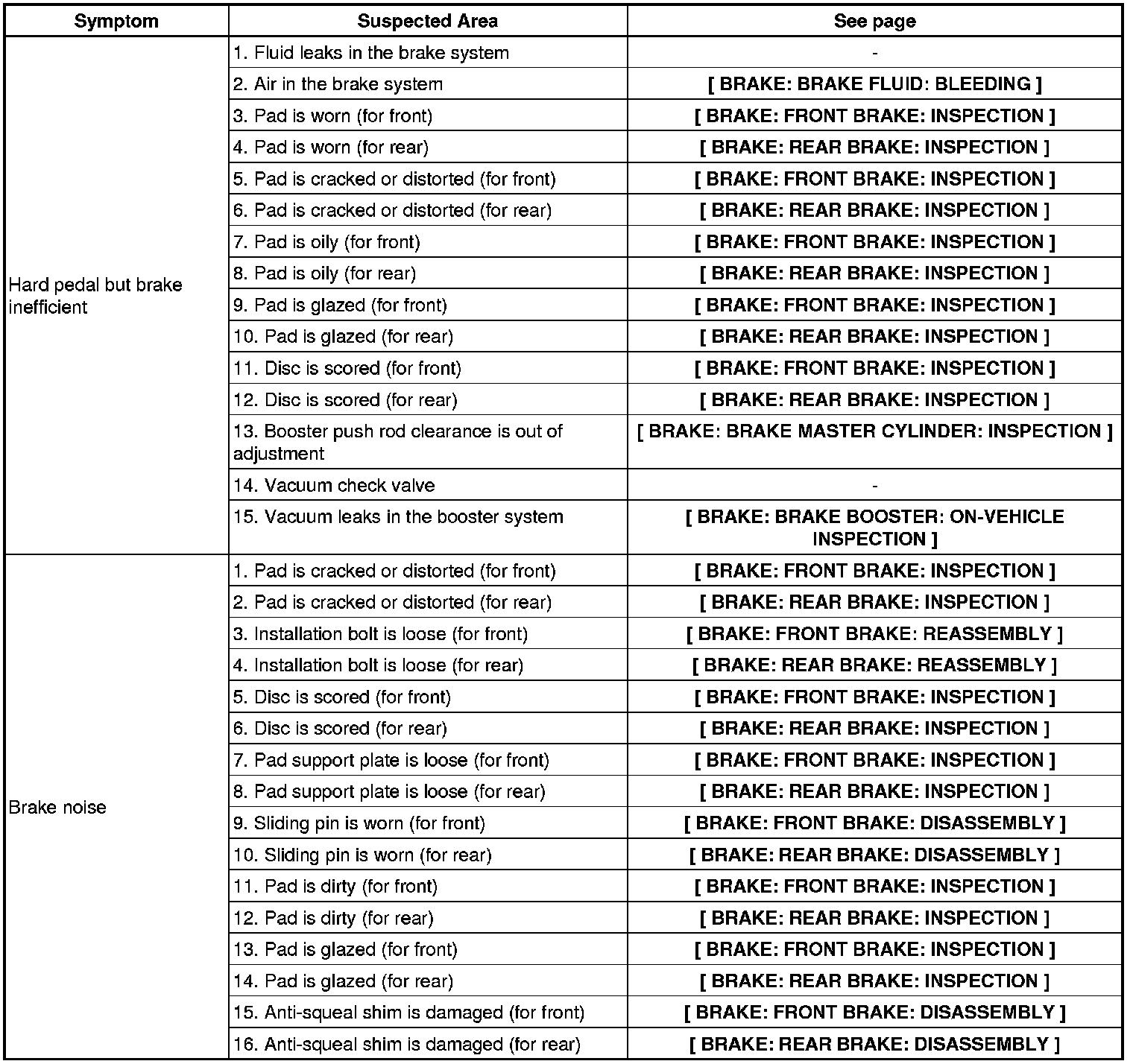

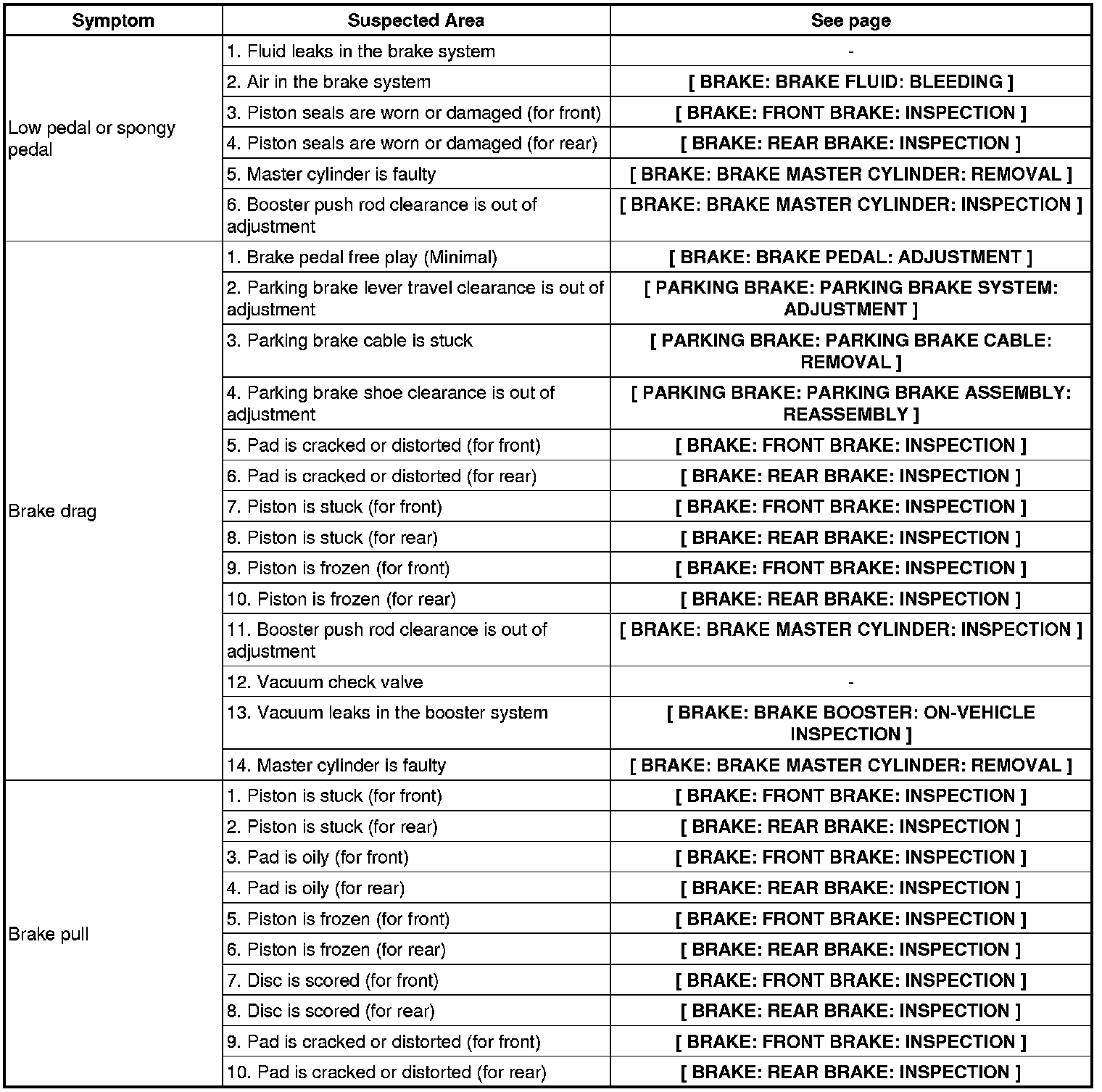

Use the table below to help find the cause of each problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

BRAKE SYSTEM
