Data List / Active Test

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST

HINT

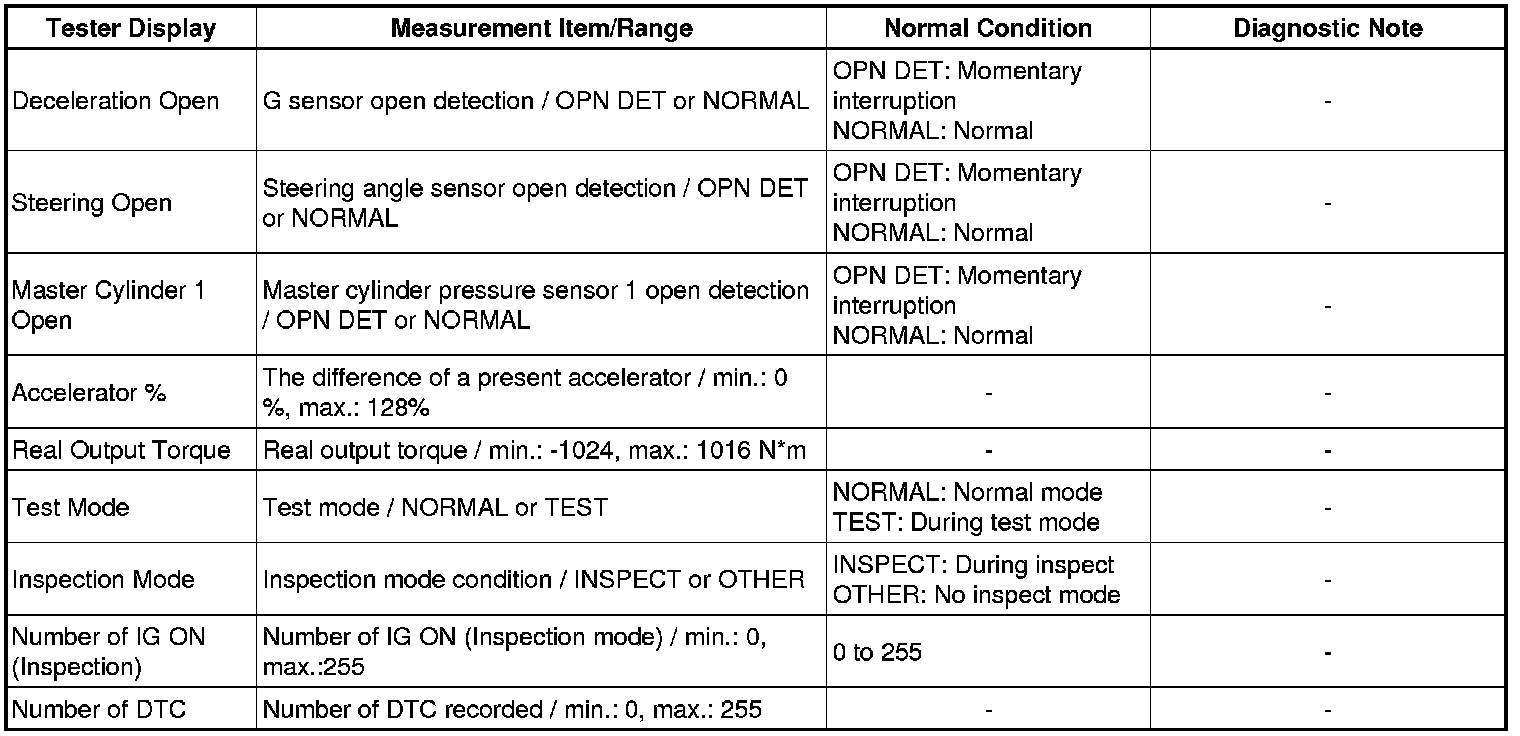

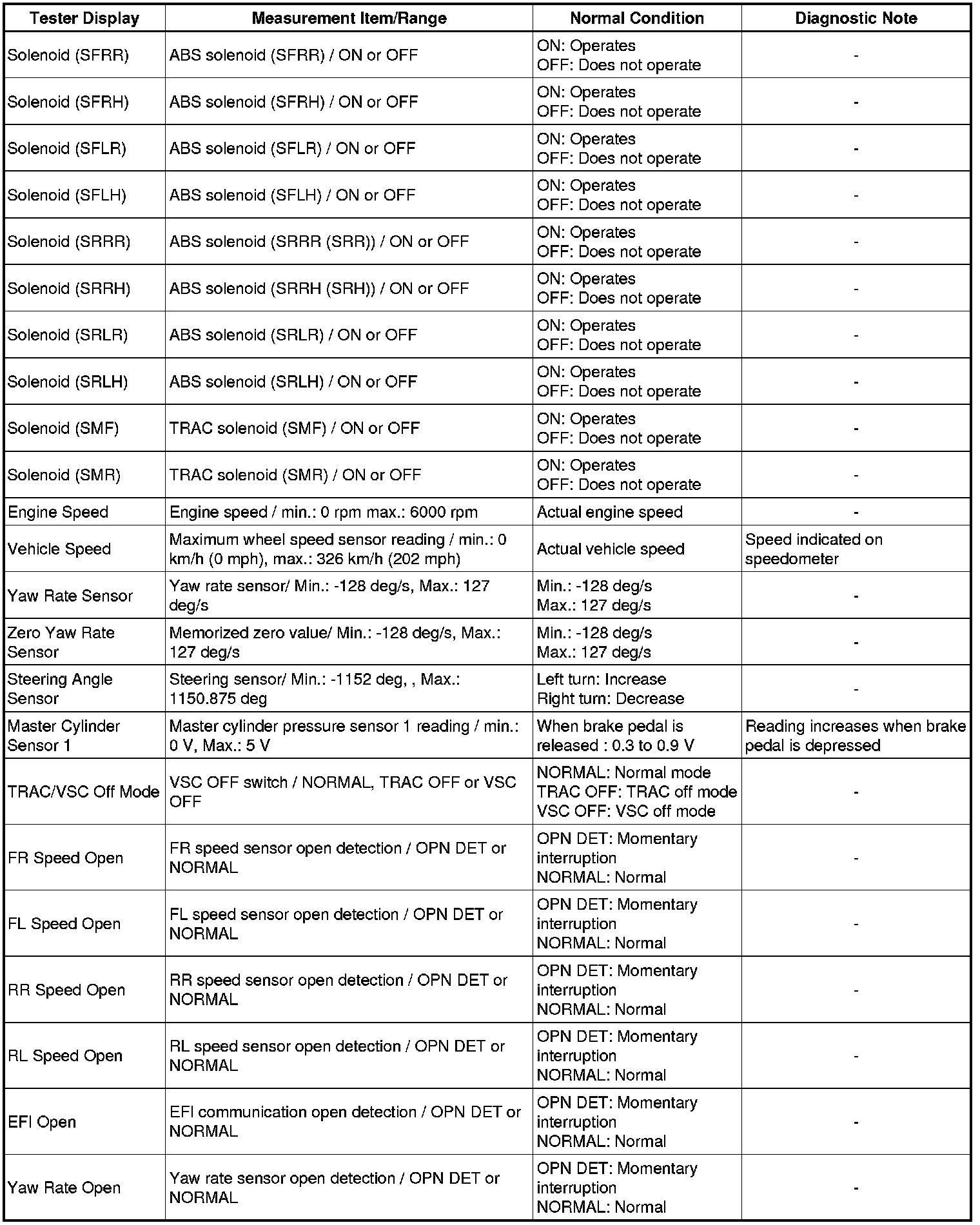

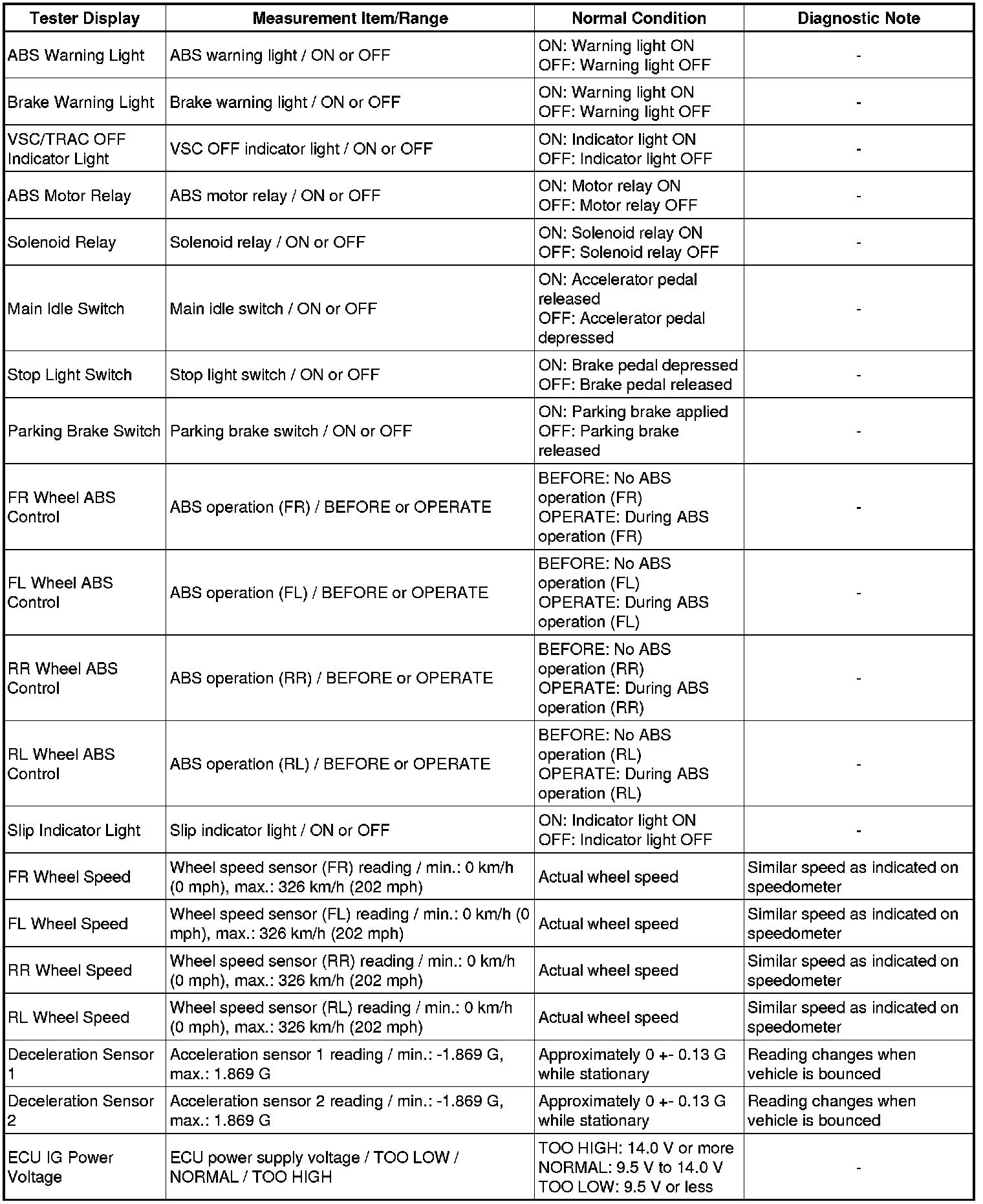

Using the Techstream connected to the DLC3 and the ignition switch on (IG), the ABS, TRAC and VSC Data List can be displayed. Follow the prompts on the Techstream screen to read the Data List.













2. ACTIVE TEST

HINT
Performing the Active Test using the Techstream allows the relay, actuator, etc. to operate without removing any parts. Performing the Active Test as the first step of troubleshooting is one of the methods to shorten labor time.

It is possible to display the Data List during the Active Test.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) According to the display on the Techstream, perform the "Active Test".

HINT
The ignition switch must be turned on (IG) to proceed to the Active Test using the Techstream.
