VSC Buzzer Circuit (from 12/2010)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: VSC Buzzer Circuit
- VSC Buzzer Circuit

DESCRIPTION

The skid control ECU is connected to the combination meter via the CAN and multiplex communication systems.

The combination meter has a built-in buzzer. The meter buzzer sounds when yaw rate sensor check is completed.

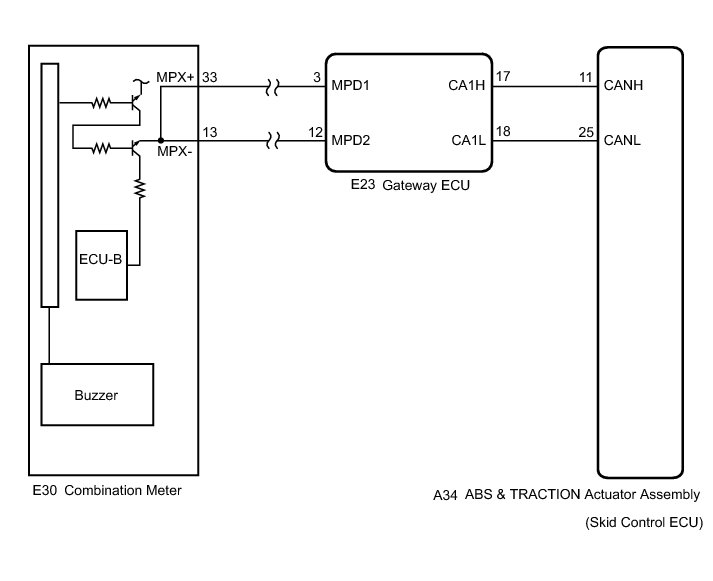

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When replacing the ABS & TRACTION actuator assembly, perform zero point calibration Calibration (from 12/2010).

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

(a) Check if a CAN communication system DTC is output Reading and Clearing Diagnostic Trouble Codes.

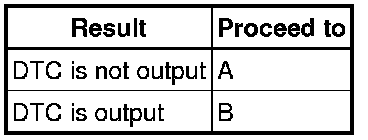

Result:





B -- INSPECT CAN COMMUNICATION SYSTEM Initial Inspection and Diagnostic Overview
A -- Continue to next step.

2. CHECK MULTIPLEX COMMUNICATION SYSTEM

(a) Check if a multiplex communication system DTC is output Reading and Clearing Diagnostic Trouble Codes.





B -- INSPECT MULTIPLEX COMMUNICATION SYSTEM Reading and Clearing Diagnostic Trouble Codes
A -- Continue to next step.

3. INSPECT COMBINATION METER ASSEMBLY

(a) Turn the ignition switch off.

(b) Check the combination meter How To Proceed With Troubleshooting (from 12/2010).

OK:

The combination meter is normal.

HINT
If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table (from 12/2010).

NG -- REPLACE COMBINATION METER ASSEMBLY Removal (from 12/2010)

OK -- REPLACE ABS & TRACTION ACTUATOR ASSEMBLY
