Power Door Lock Switch: Testing and Inspection

DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

1. INSPECT DOOR CONTROL SWITCH (MULTIPLEX NETWORK MASTER SWITCH) (for Driver Side)

(a) Measure the resistance of the multiplex network master switch.

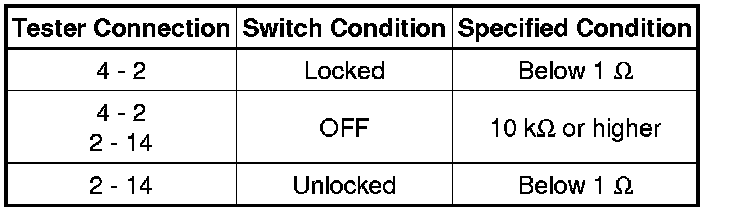

Resistance:





If the result is not as specified, replace the multiplex network master switch assembly.

2. INSPECT DOOR CONTROL SWITCH ASSEMBLY (for Front Passenger Side)

(a) Measure the resistance of the door control switch.





Resistance:





If the result is not as specified, replace the door control switch assembly.
