Front Seat Frame With Adjuster

SEAT: FRONT SEAT FRAME WITH ADJUSTER: INSPECTION

1. INSPECT FRONT SEAT ADJUSTER LH

(a) Check slide motor operation.

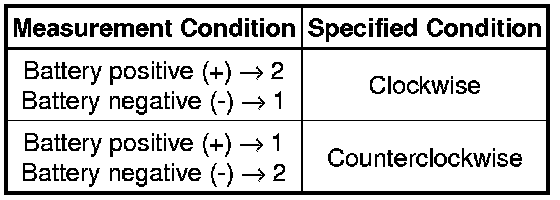

(1) Check that the motor rotates smoothly in the direction indicated when the battery is connected to the slide motor connector terminals.

OK:





If the result is not as specified, replace the front seat adjuster LH.

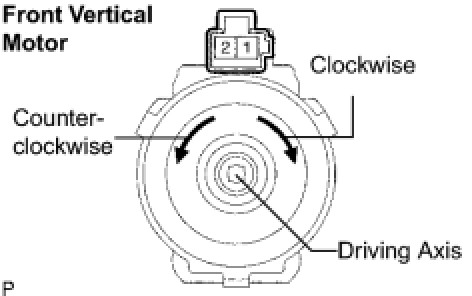

(b) Check front vertical motor operation.

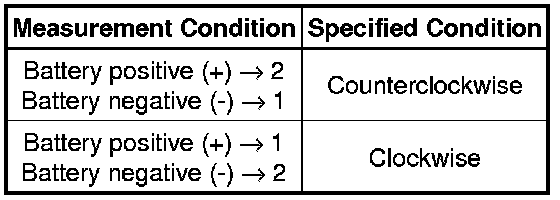

(1) Check that the motor rotates smoothly in the direction indicated when the battery is connected to the vertical motor connector terminals.

OK:





If the result is not as specified, replace the front seat adjuster LH.

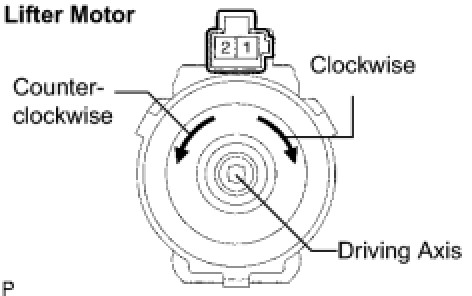

(c) Check lifter motor operation.





(1) Check that the motor rotates smoothly in the direction indicated when the battery is connected to the rear vertical motor connector terminals.

OK:





If the result is not as specified, replace the front seat adjuster LH.

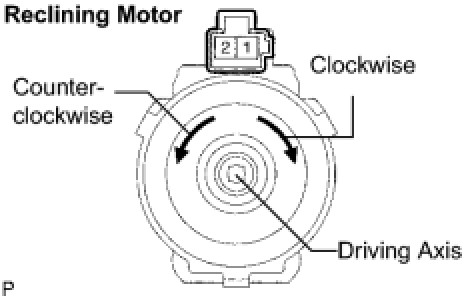

(d) Check reclining motor operation.





(1) Check that the motor rotates smoothly in the direction indicated when the battery is connected to the reclining motor connector terminals.

OK:





If the result is not as specified, replace the front seat adjuster LH.

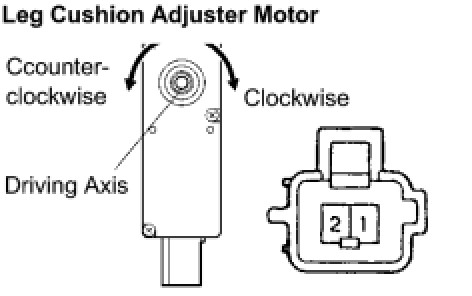

(e) Check leg cushion adjuster motor operation.





(1) Check that the motor rotates smoothly in the direction indicated when the battery is connected to reclining slide motor connector terminals.

OK:





If the result is not as specified, replace the front seat adjuster LH.

2. INSPECT FRONT SEAT ADJUSTER RH

(a) Check slide motor operation.





(1) Check that the motor rotates smoothly in the direction indicated when the battery is connected to the slide motor connector terminals.

OK:





If the result is not as specified, replace the front seat adjuster RH.

(b) Check reclining motor operation.





(1) Check that the motor rotates smoothly in the direction indicated when the battery is connected to the reclining motor connector terminals.

OK:





If the result is not as specified, replace the front seat adjuster RH.
