Seats: Specifications





SERVICE SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

FRONT SEAT ASSEMBLY (for Manual Seat Type RH Side)

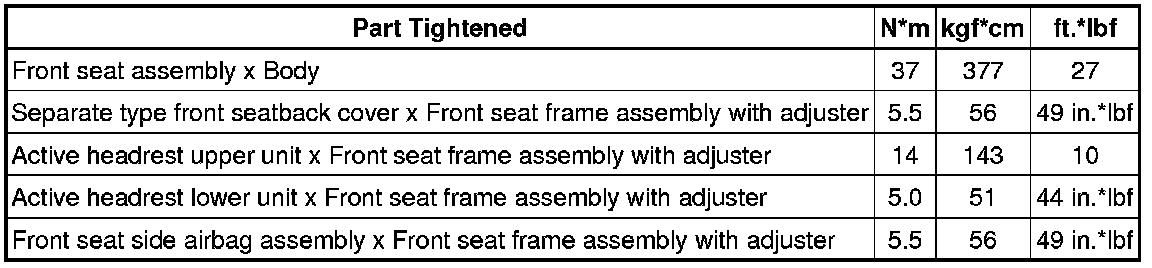

FRONT SEAT ASSEMBLY (for Power Seat)

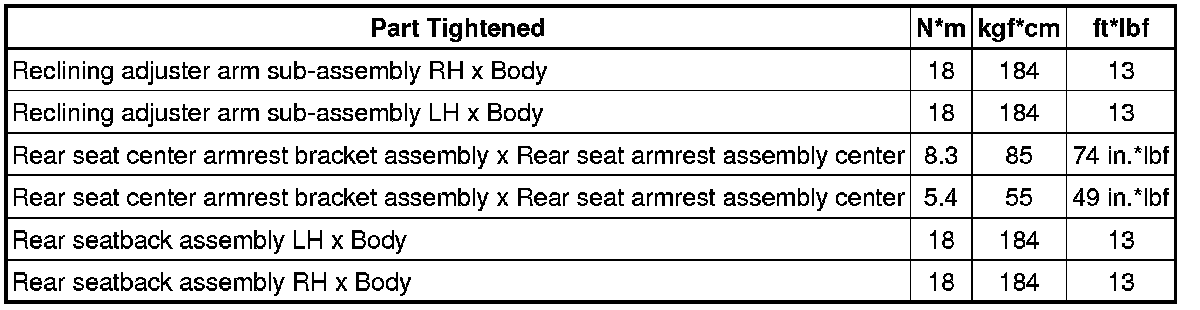

REAR SEAT ASSEMBLY
