Installation

SEAT: REAR SEAT ASSEMBLY: INSTALLATION

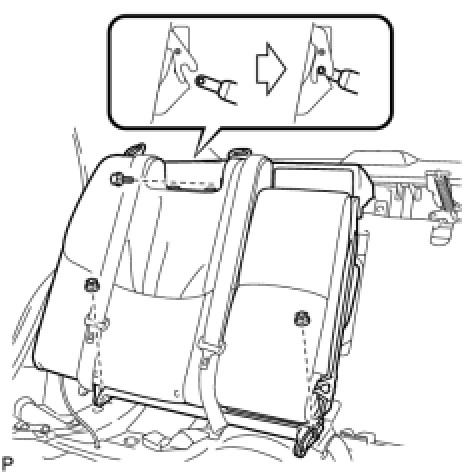

1. INSTALL REAR SEATBACK ASSEMBLY RH

(a) Engage the rear seatback frame sub-assembly RH with the end of the reclining adjuster arm sub-assembly RH.





(b) Install the rear seatback assembly RH with the bolt and 2 nuts.

Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

HINT
Compress completely adjuster arm sub-assembly before engage rear seatback frame sub-assembly.

(c) Install the rear seat belt to the rear seat shoulder belt guide center.





(d) Install the rear seat belt to the rear seat shoulder belt guide RH.





2. INSTALL REAR SEATBACK ASSEMBLY LH

(a) Engage the rear seatback frame sub-assembly LH with the end of the reclining adjuster arm sub-assembly LH.





(b) Install the rear seatback assembly LH with the bolt and 2 nuts.

Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

HINT
Compress completely adjuster arm sub-assembly before engage rear seatback frame sub-assembly.

(c) Install the rear seat belt to the rear seat shoulder belt guide LH.
