Reassembly

SEAT: REAR SEAT ASSEMBLY: REASSEMBLY

1. INSTALL UPPER NO.2 LH ARM SUB-ASSEMBLY NO.1 SEAT RECLINING ADJUSTER

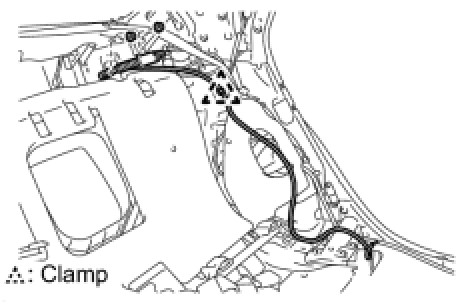

(a) Install the reclining adjuster arm sub-assembly LH with the 2 nuts.





Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

(b) Engage the clamp.

2. INSTALL NO.1 SEAT RECLINING ADJUSTER ARM SUB-ASSEMBLY UPPER NO.2 RH

HINT
Use the same procedures for the RH side and LH side.

3. INSTALL SEPARATE TYPE REAR SEATBACK COVER

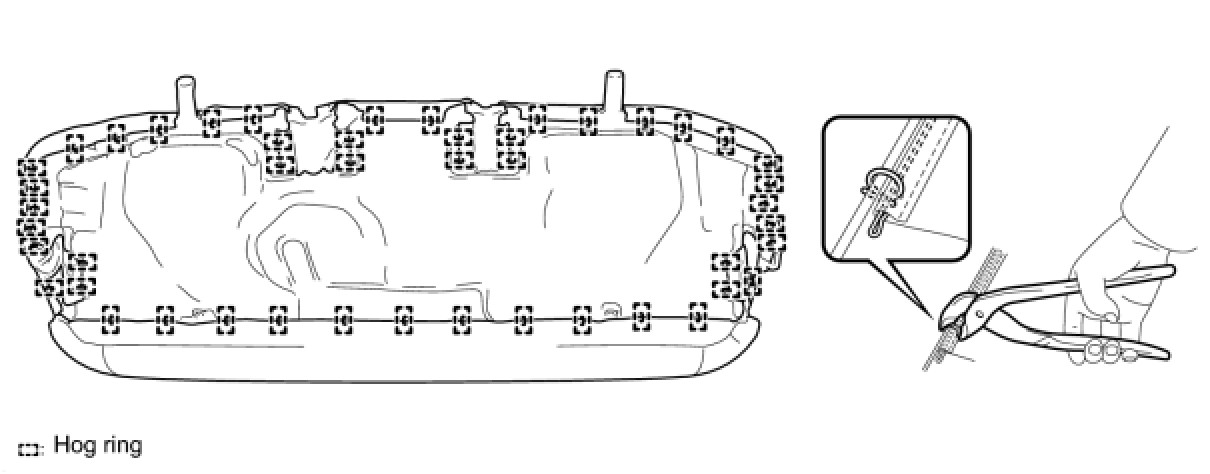

(a) Using hog ring pliers, install the separate type rear seat back cover with 13 new hog rings.





NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

4. INSTALL SEPARATE TYPE REAR SEATBACK COVER

HINT
Use the same procedures for the RH side and LH side.

5. INSTALL BRACKET

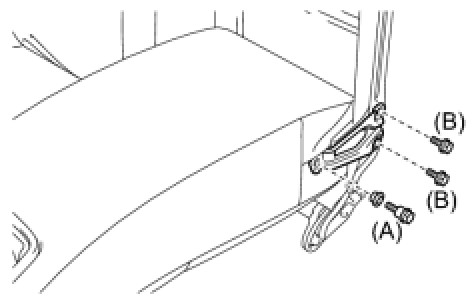

(a) Install the rear seat center armrest bracket LH with the 3 bolts.

Bolt A - Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

Bolt B - Torque : 8.3 Nm (85 kgf-cm, 74 in-lbf)





(b) Install the E-ring.

6. INSTALL BENCH TYPE REAR SEAT CUSHION COVER

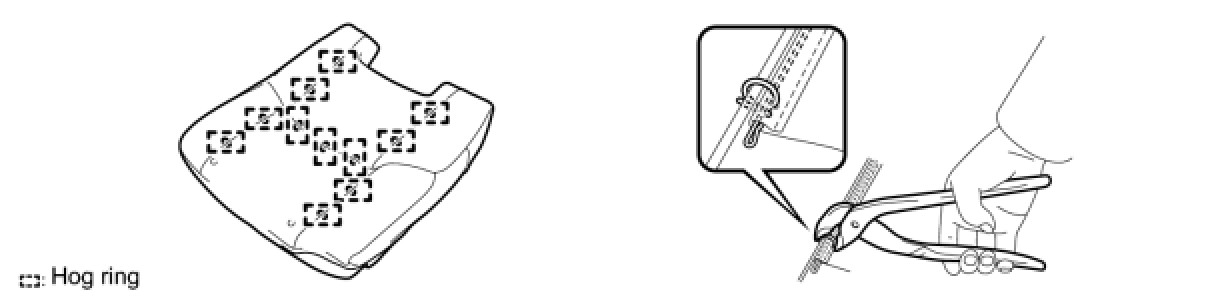

(a) Using hog ring pliers, install the bench type rear seat cushion cover with 18 new hog rings.

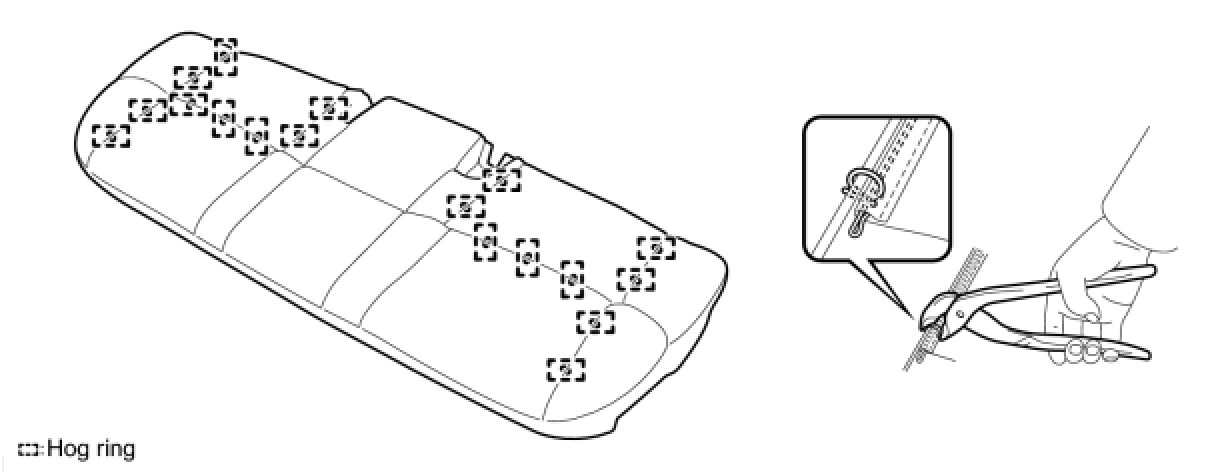

(b) Using hog ring pliers, install the bench type rear seat cover with 47 new hog rings.





NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.
