Disassembly

SEAT: REAR SEAT ASSEMBLY: DISASSEMBLY

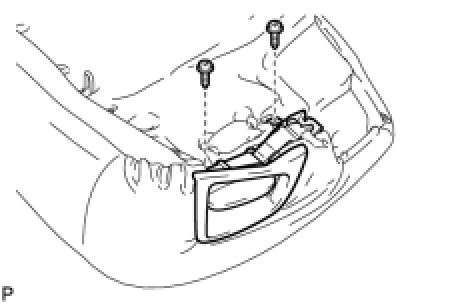

1. REMOVE RECLINING RELEASE HANDLE SUB-ASSEMBLY LH

(a) Remove the 2 screws and the reclining release handle sub-assembly LH.





2. REMOVE RECLINING RELEASE HANDLE SUB-ASSEMBLY RH

HINT
Use the same procedures for the RH side and LH side.

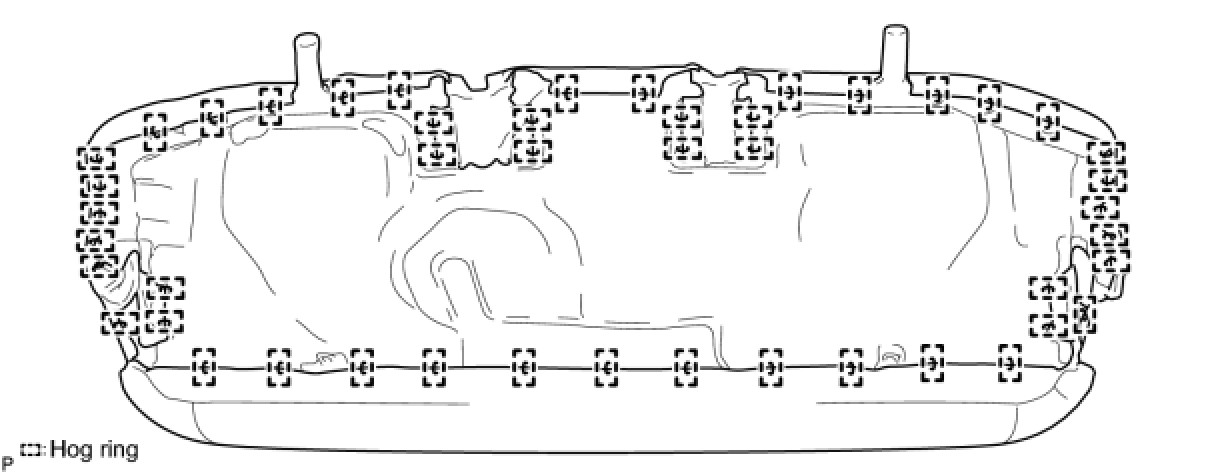

3. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

(a) Remove the 47 hog rings.

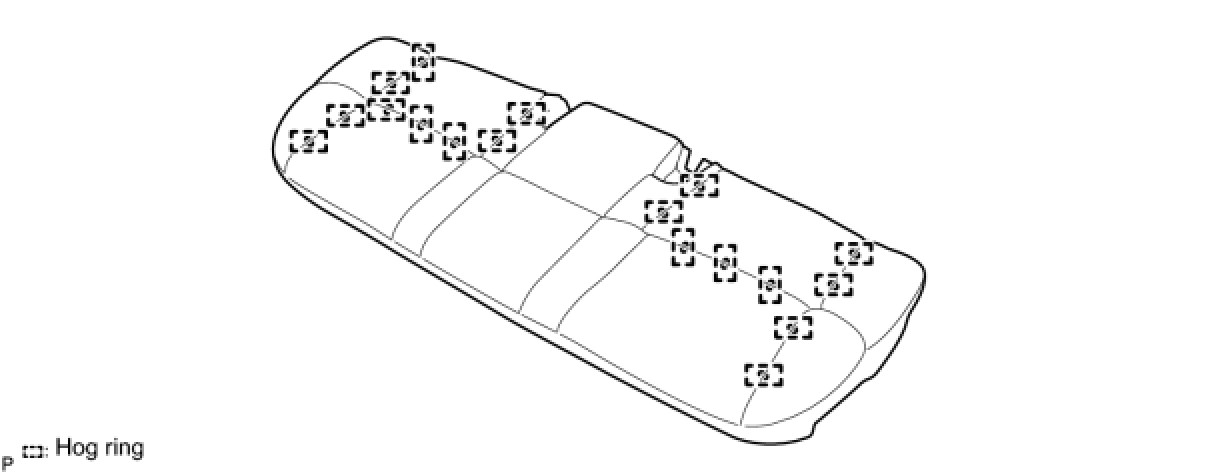

(b) Remove the 18 hog rings and the bench type rear seat cushion cover.

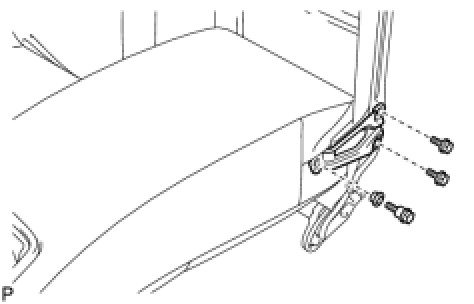

4. REMOVE BRACKET

(a) Remove the 3 bolts, E-ring and the rear seat center armrest bracket LH.

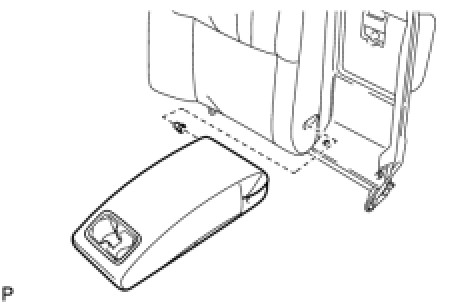

5. REMOVE REAR SEAT ARMREST ASSEMBLY CENTER

(a) Remove the rear seat armrest assembly center.

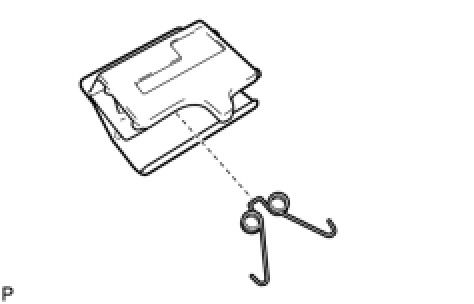

6. REMOVE REAR SEAT ARMREST HANDLE

(a) Open the rear seat center armrest door sub-assembly as shown in the illustration.





(b) Remove the ring and remove the rear seat armrest handle and spring as a unit.

(c) Remove the rear seat armrest handle.

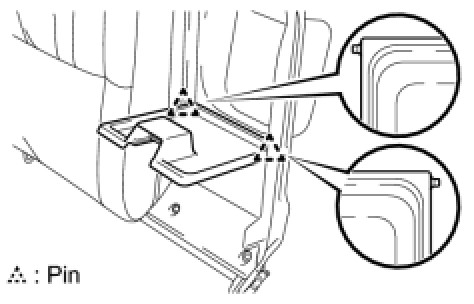

7. REMOVE REAR SEAT CENTER ARMREST DOOR SUB-ASSEMBLY

(a) Disengage the RH side pin.





(b) Disengage the LH side pin and remove the rear seat center armrest door sub-assembly.

8. REMOVE REAR SEAT HEADREST SUPPORT

(a) Disengage the 6 claws and remove the 3 rear seat headrest supports (LH side).





9. REMOVE REAR SEAT HEADREST SUPPORT

HINT
Use the same procedures for the RH side and LH side.

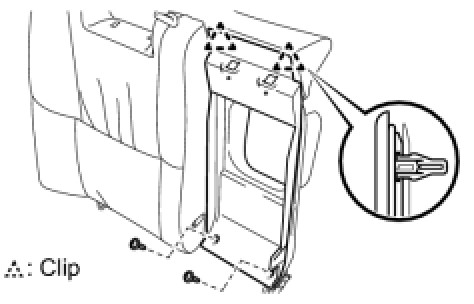

10. REMOVE REAR SEAT CENTER ARMREST BOX

(a) Remove the 2 screws.





(b) Disengage the 2 clips and remove the rear seat center armrest box.

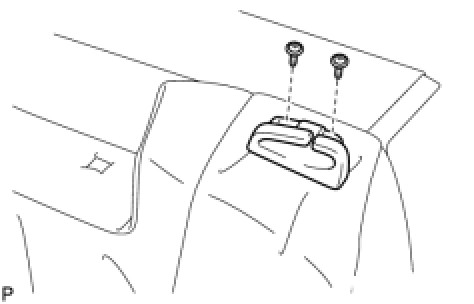

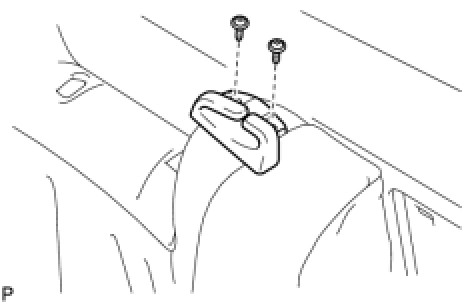

11. REMOVE REAR SEAT SHOULDER BELT GUIDE LH

(a) Remove the 2 screws and the rear seat shoulder belt guide LH.





12. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

HINT
Use the same procedures for the RH side and LH side.

13. REMOVE REAR SEAT SHOULDER BELT GUIDE CENTER

(a) Remove the 2 screws and the rear seat shoulder belt guide center.

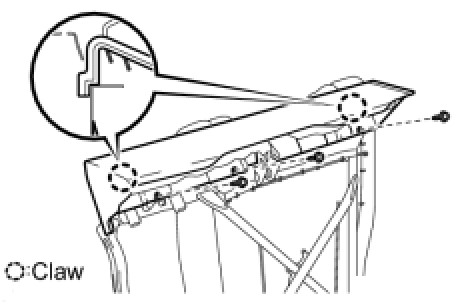

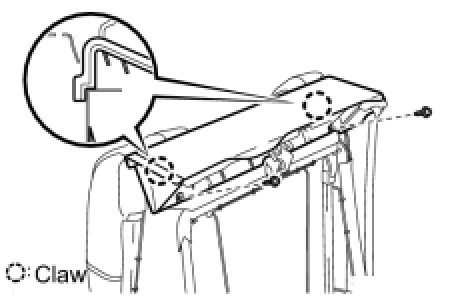

14. REMOVE REAR SEATBACK COVER LH

(a) Remove the 2 screws.





(b) Disengage the 2 claws and remove the rear seatback cover LH.

15. REMOVE REAR SEATBACK COVER RH

(a) Remove the 3 screws.





(b) Disengage the 2 claws and remove the rear seatback cover RH.

16. REMOVE RR SEAT BELT HOOK

(a) Remove the 5 hog rings and the RR seat belt hook.





HINT
Use the same procedures for the RH side and LH side.

17. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH

(a) Disengage the 2 J-clips.





(b) Remove the 10 hog rings.

(c) Disengage the 2 hooks and remove the rear seatback frame sub-assembly LH.

18. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH

(a) Disengage the 2 J-clips.





(b) Remove the 10 hog rings and the rear seatback frame sub-assembly RH.

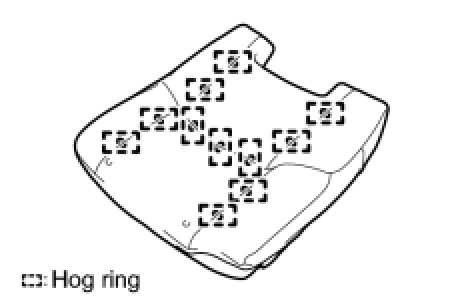

19. REMOVE SEPARATE TYPE REAR SEATBACK COVER

(a) Remove the 11 hog rings and the separate type rear seatback cover.





20. REMOVE SEPARATE TYPE REAR SEATBACK COVER

HINT
Use the same procedures for the RH side and LH side.

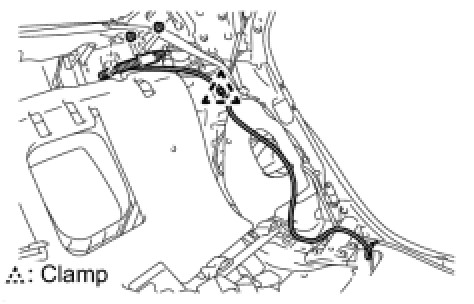

21. REMOVE UPPER NO.2 LH ARM SUB-ASSEMBLY NO.1 SEAT RECLINING ADJUSTER

(a) Disengage the clamp and remove the 2 nuts and the reclining adjuster arm sub-assembly LH.





22. REMOVE NO.1 SEAT RECLINING ADJUSTER ARM SUB-ASSEMBLY UPPER NO.2 RH

HINT
Use the same procedures for the RH side and LH side.
