Pinout Values and Diagnostic Parameters

MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): TERMINALS OF ECU

1. CHECK OUTER MIRROR CONTROL ECU ASSEMBLY LH

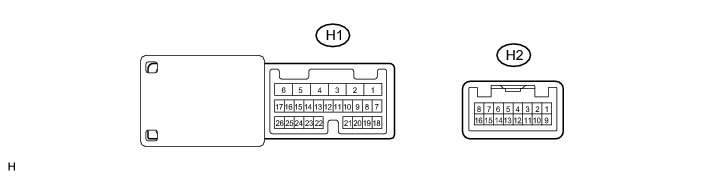

(a) Disconnect the H1 connector.

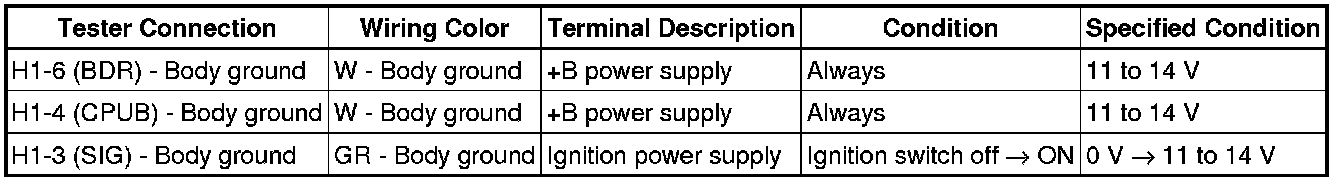

(b) Measure the voltage according to the value(s) in the table below.

HINT
Measure the values on the wire harness side with the connector disconnected.

Standard Voltage





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Measure the resistance according to the value(s) in the table below.

HINT
Measure the values on the wire harness side with the connector disconnected.

Standard Resistance





If the result is not as specified, there may be a malfunction on the wire harness side.

(d) Reconnect the H1 connector.

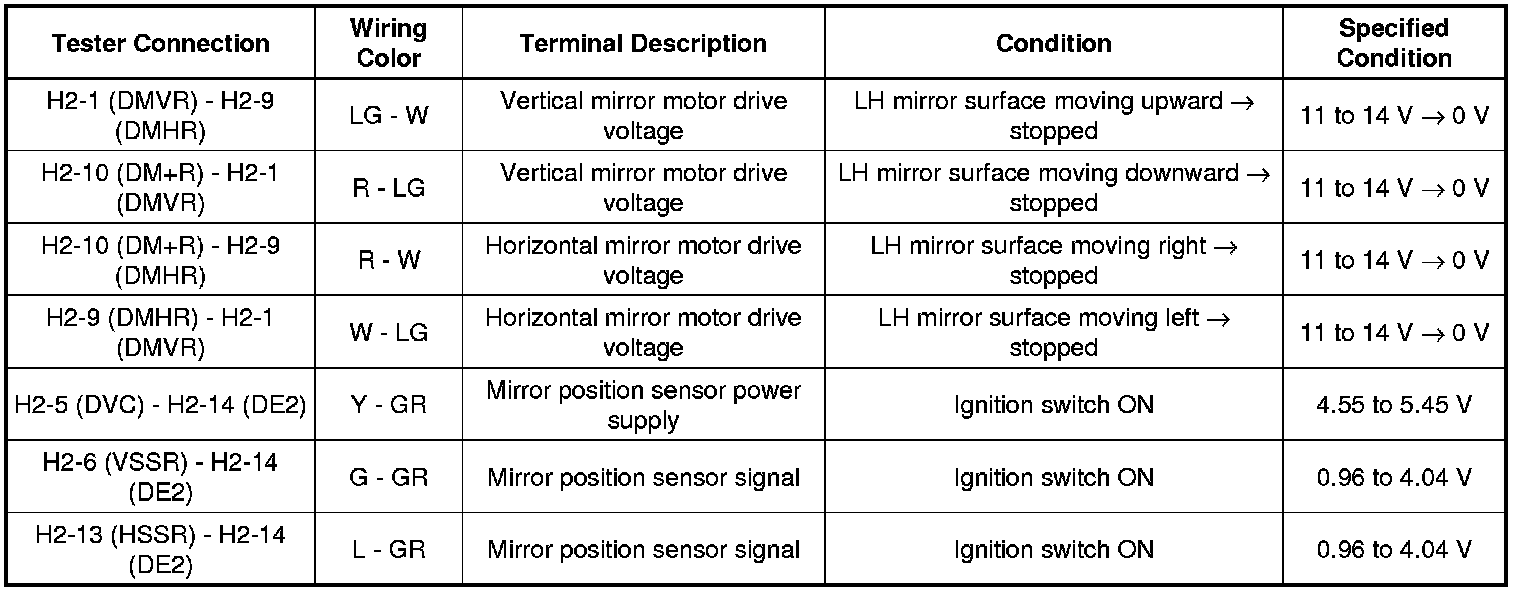

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage





2. CHECK OUTER MIRROR CONTROL ECU ASSEMBLY RH

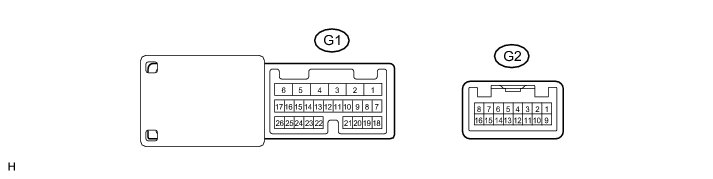

(a) Disconnect the G1 connector.

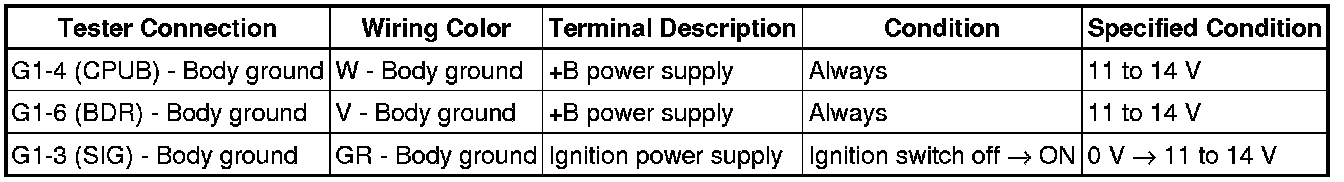

(b) Measure the voltage according to the value(s) in the table below.

HINT
Measure the values on the wire harness side with the connector disconnected.

Standard Voltage





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Measure the resistance according to the value(s) in the table below.

HINT
Measure the values on the wire harness side with the connector disconnected.

Standard Resistance





If the result is not as specified, there may be a malfunction on the wire harness side.

(d) Reconnect the G1 connector.

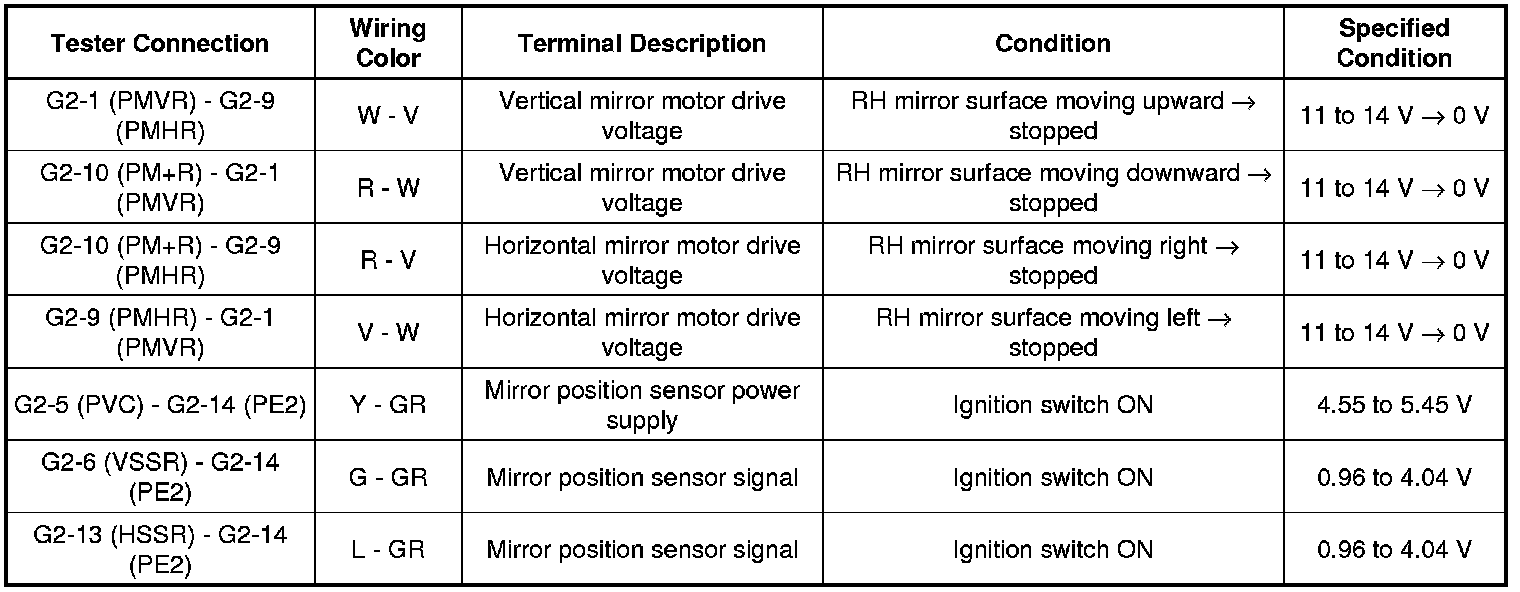

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage
