Power Mirror Control System (w/ Memory)

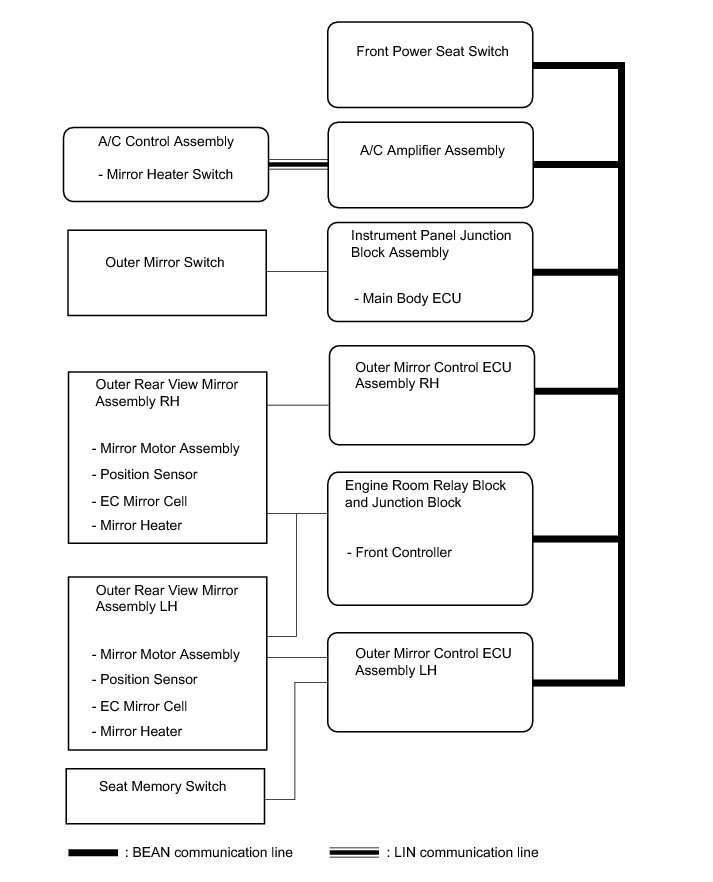

MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): SYSTEM DIAGRAM

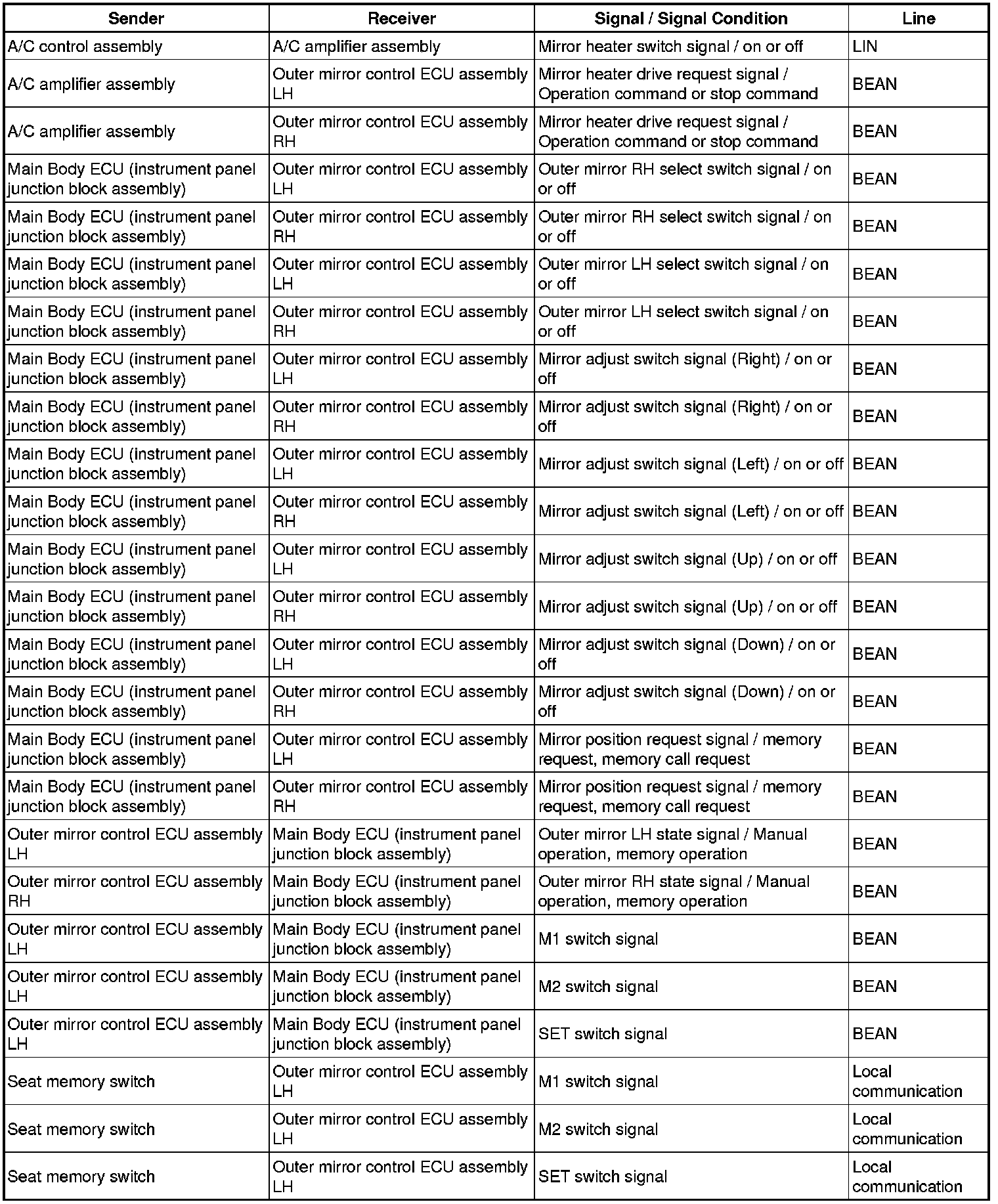

Communication Table











SYSTEM DESCRIPTION

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION

(a) This system has the following functions: automatic glare-resistant electrochromic (EC) mirror function, electrical remote control function, memory function and mirror heater function.

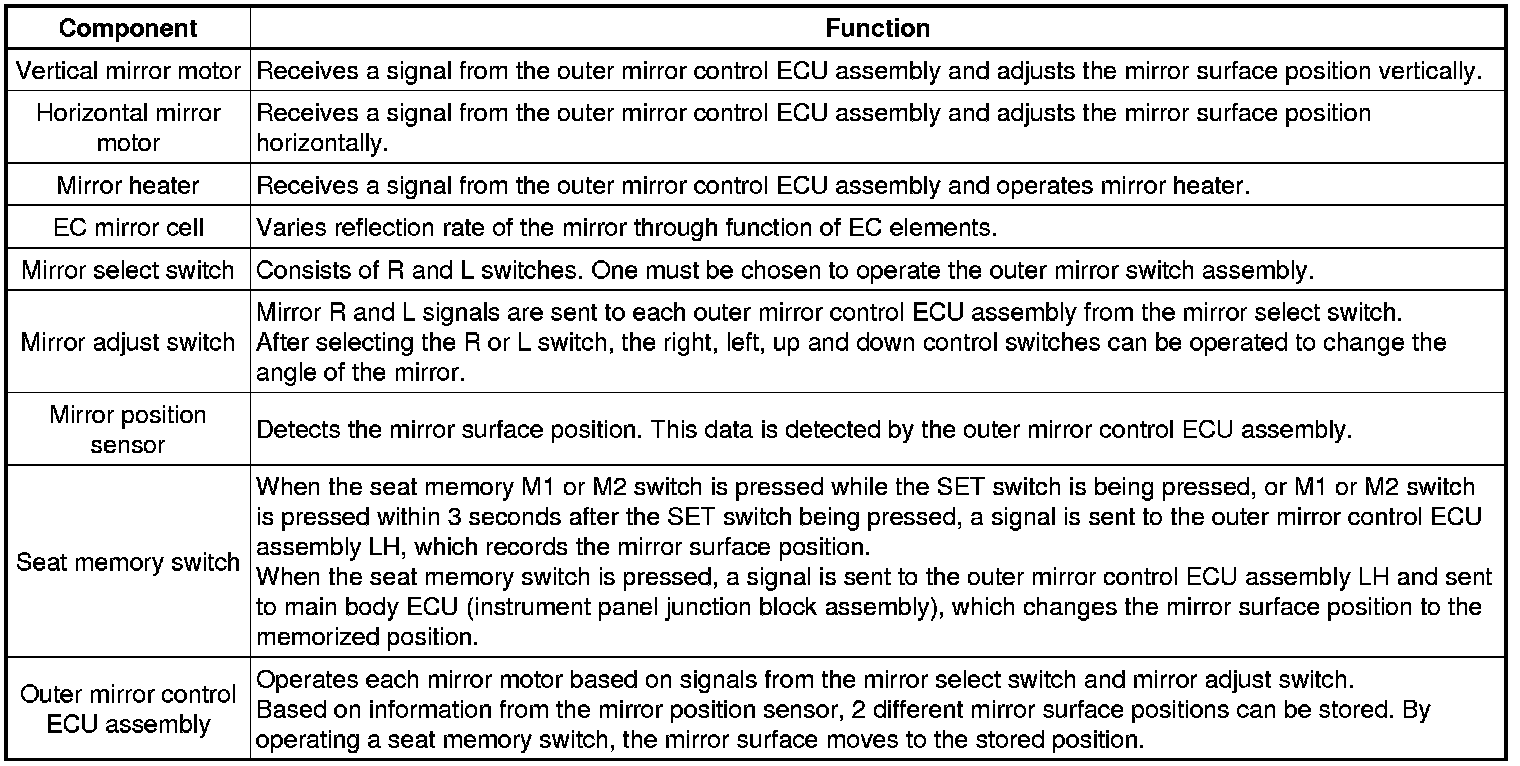

2. FUNCTION OF MAIN COMPONENT

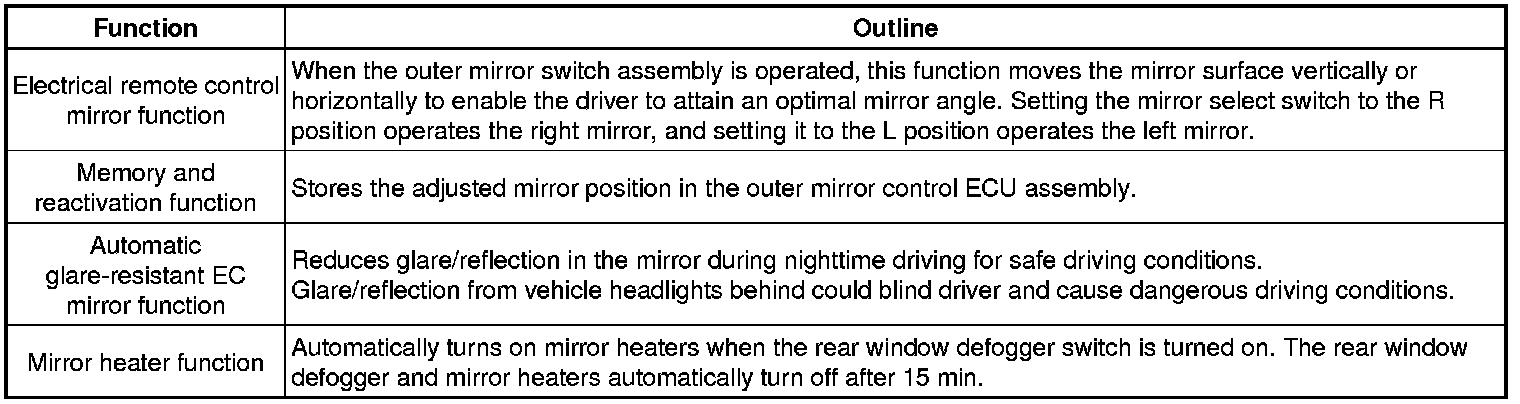

3. SYSTEM OPERATION

(a) The remote control mirror has the following features.
