Programming and Relearning

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* After confirming whether items requested by the customer are applicable or not for customization, perform customize operations.
* Be sure to record the current settings before customizing.
* When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization.

1. MAIN BODY ECU (Using Techstream):

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn the tester on.

(d) Enter the following menus: Customize Setting / Door Lock.

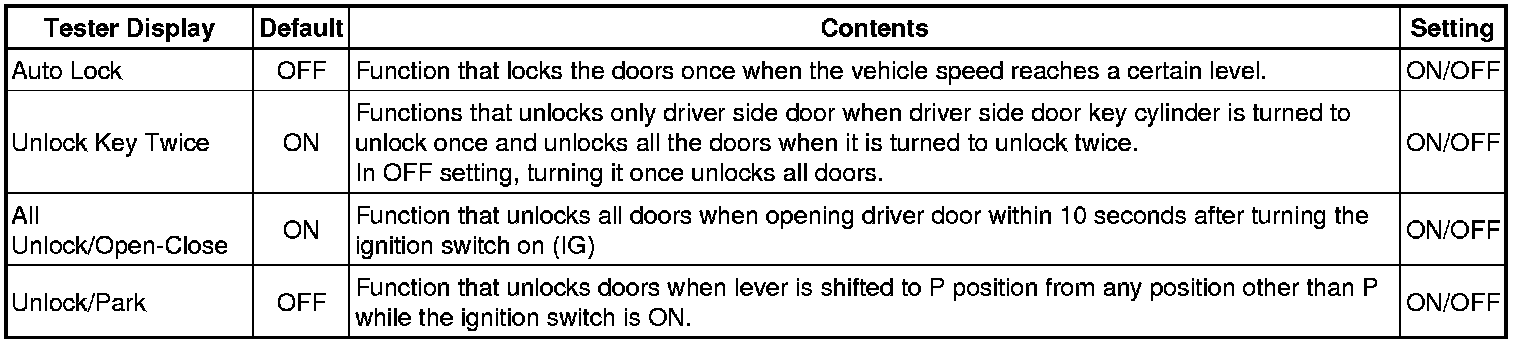

(e) Select setting by referring to the table below





2. MANUAL SETTING (Switch operation)

(a) Close all the doors.

(b) Turn the ignition switch on (IG).

(c) Within ten seconds after the ignition switch on (IG).

* To set function (Shift-linked Automatic Door Lock)

Push and hold the LOCK side of the power door lock switch for five seconds with the shift lever in the P.

* To set function (Speed-sensitive Automatic Door Lock)

Push and hold the LOCK side of the power door lock switch for five seconds with the shift lever in any position except P.

* To set function (Shift-linked Automatic Door Unlock)

Push and hold the UNLOCK side of the power door lock switch for five seconds with the shift lever in the P.

* To set function (Opening Driver's Door-linked Automatic Door Unlock)

Push and hold the UNLOCK side of the power door lock switch for five seconds with the shift lever in any position except P.

If user wants to cancel a function, repeat the procedure. Each time user perform the procedure, the function is set or cancelled.
