Pinout Values and Diagnostic Parameters





DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: TERMINALS OF ECU

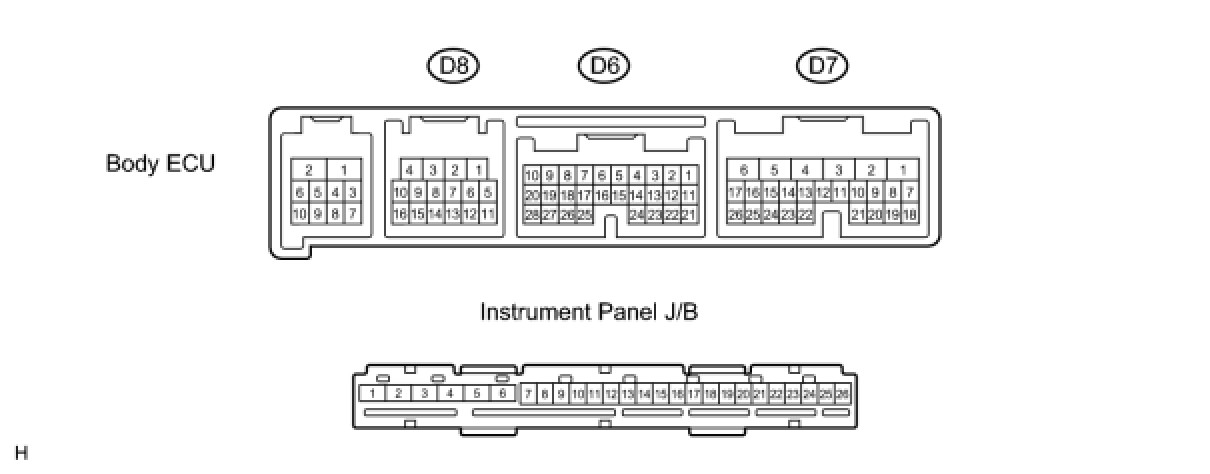

1. INSTRUMENT PANEL J/B (BODY ECU)





BODY ECU:

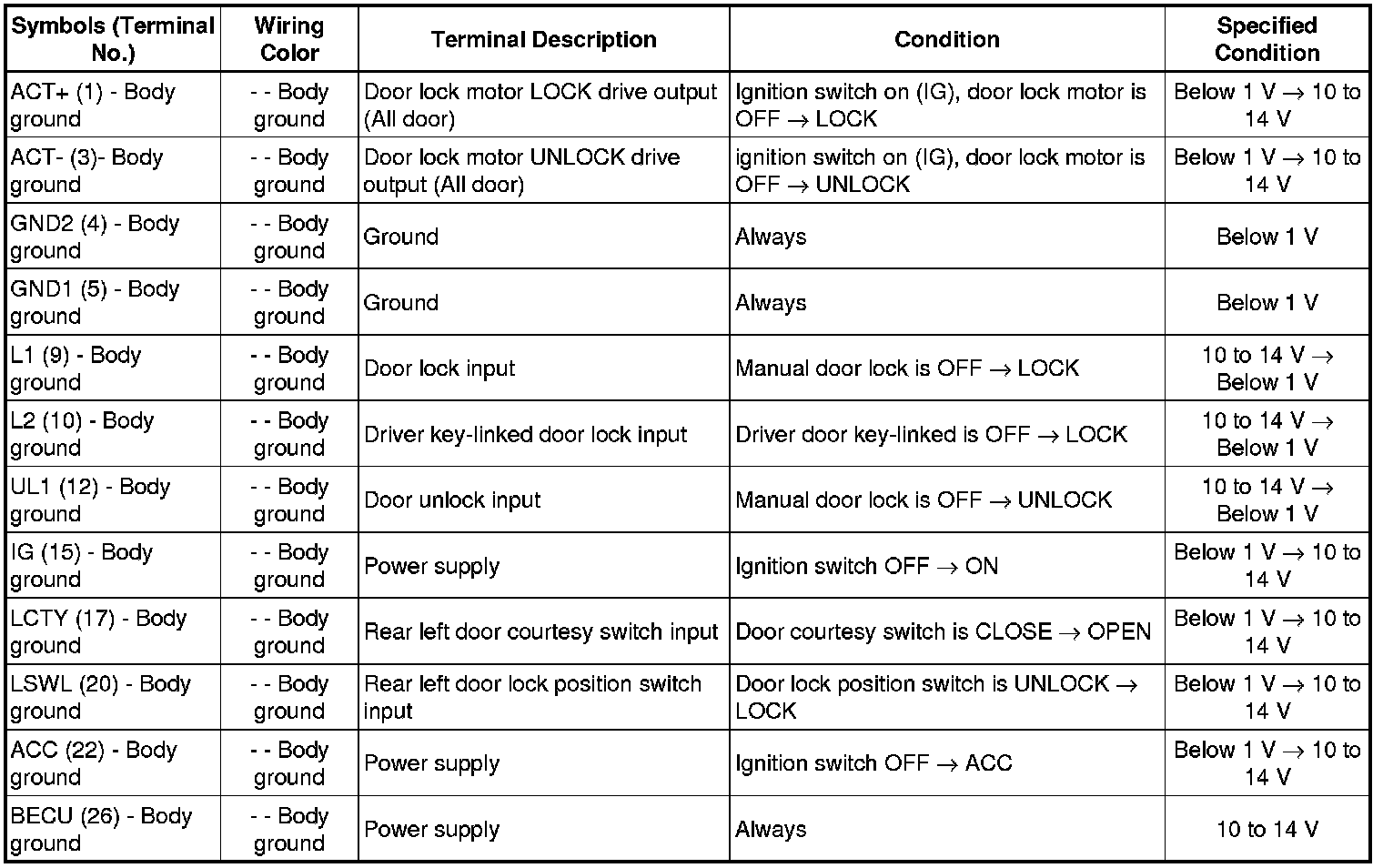

INSTRUMENT PANEL J/B:
