Rear Door Unlock Detection Switch LH Circuit

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Rear Door UNLOCK Detection Switch LH Circuit
- Rear Door UNLOCK Detection Switch LH Circuit

DESCRIPTION

The door unlock detection switch is built in the door lock assembly.

This switch is ON when the door lock knob is in the unlock position and OFF when it is in the lock position.

It is used as one of the operating conditions for the key confinement prevention function.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (DOOR UNLOCK DETECTION SWITCH)

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn the tester on.

(d) Enter the following menus: Body Electrical / Main Body / Data List.

(e) Read the Data List according to the display on the tester.

Main Body:





OK:

On the tester screen, each item changes between ON and OFF according to the chart above.

NG -- INSPECT REAR DOOR LOCK ASSEMBLY LH (DOOR UNLOCK DETECTION SWITCH)

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

2. INSPECT REAR DOOR LOCK ASSEMBLY LH (DOOR UNLOCK DETECTION SWITCH)

(a) Remove the rear door lock assembly LH.

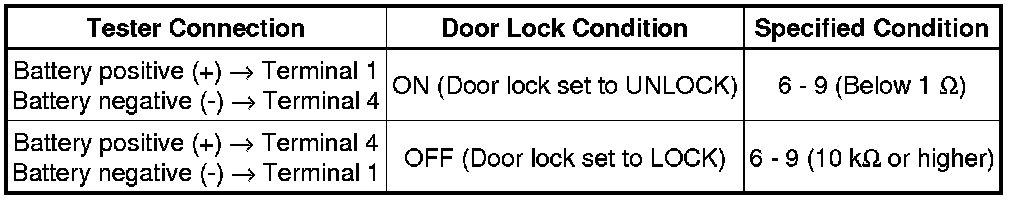

(b) Measure the resistance of the door unlock detection switch.

Resistance:





NG -- REPLACE REAR DOOR LOCK ASSEMBLY LH
OK -- Continue to next step.

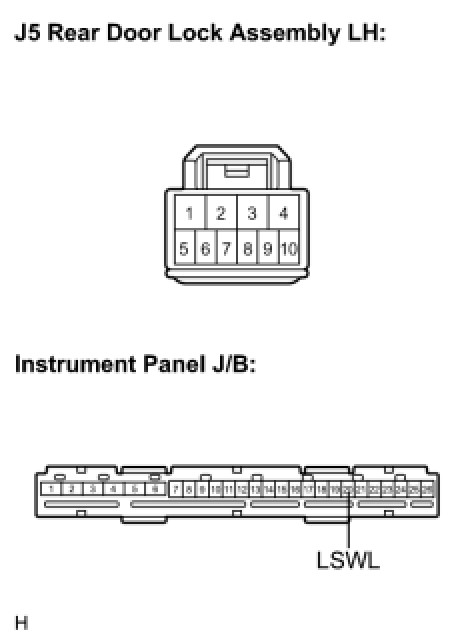

3. CHECK WIRE HARNESS (REAR DOOR LOCK ASSEMBLY LH - INSTRUMENT PANEL J/B)

(a) Disconnect the J5 connector.





(b) Remove the body ECU from instrument panel J/B.

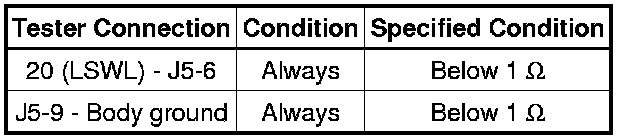

(c) Measure the resistance of the wire harness side connectors.

Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
