Power Source Circuit

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Power Source Circuit
- Power Source Circuit

DESCRIPTION

This circuit supplies power to operate the body ECU.

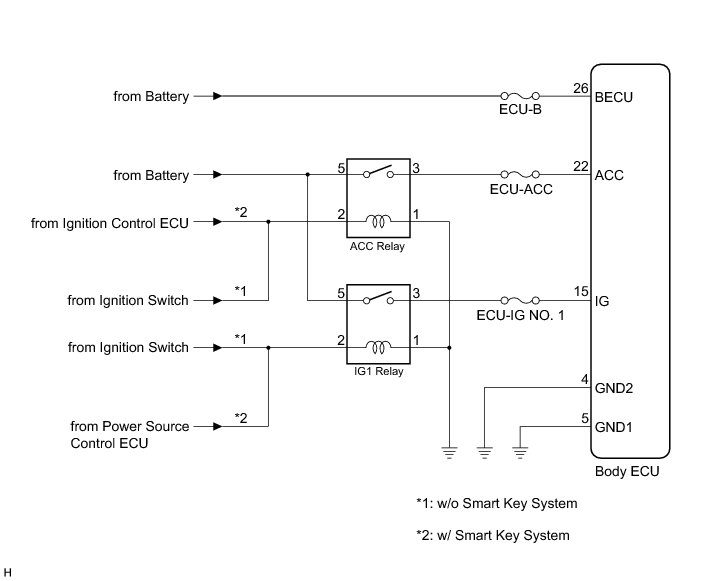

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B - BATTERY AND BODY GROUND)

(a) Remove the body ECU from instrument panel J/B.

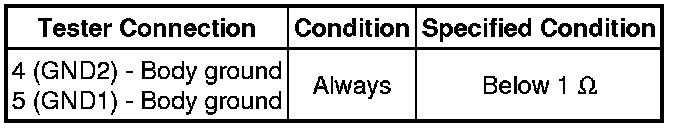

(b) Measure the resistance according to the value(s) in the table below.

Resistance:

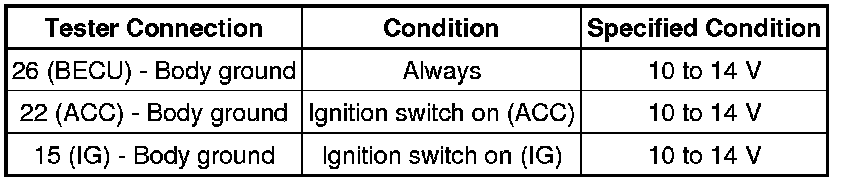

(c) Measure the voltage according to the value(s) in the table below.

Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
