Luggage Compartment Door Lock Circuit

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Luggage Compartment Door Lock Circuit
- Luggage Compartment Door Lock Circuit

DESCRIPTION

The door lock motor is built in the luggage compartment door lock assembly.

The body ECU receives the driver door lock switch signal from the master switch and operates the door lock motor.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (DOOR LOCK)

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch on (IG).

(c) Turn the tester on.

(d) Enter the following menus: Body Electrical / Main Body / Active Test.

(e) Perform the Active Test according to the display on the tester.

Main Body:





OK:

Door lock is locked / unlocked.

NG -- INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (DOOR LOCK MOTOR)

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

2. INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (DOOR LOCK MOTOR)

(a) Remove the luggage compartment door lock assembly.

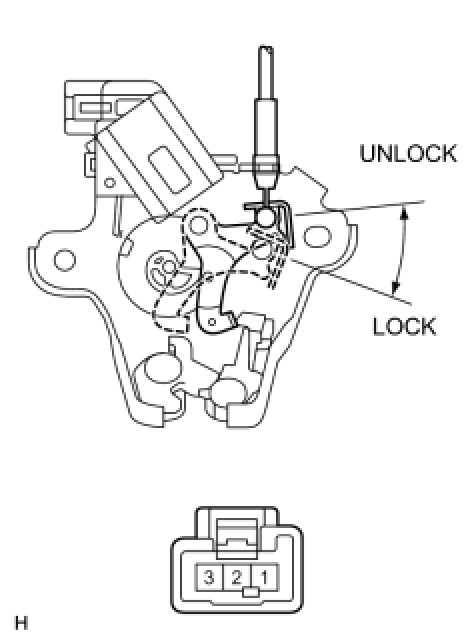

(b) Apply battery voltage and check operation of the door lock motor.

Voltage:





NG -- REPLACE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
OK -- Continue to next step.

3. CHECK WIRE HARNESS (LUGGAGE COMPARTMENT DOOR LOCK - INSTRUMENT PANEL J/B)

(a) Disconnect the D7 and K22 connectors.





(b) Measure the resistance of the wire harness side connectors.

Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
