Door Lock - Smart Key System

DOOR LOCK: SMART KEY SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST

HINT
By accessing the Data List displayed on Techstream, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the Data List is the first step of troubleshooting and is one method to shorten labor time.

(a) Connect Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Following the display on the tester, select "Data List".

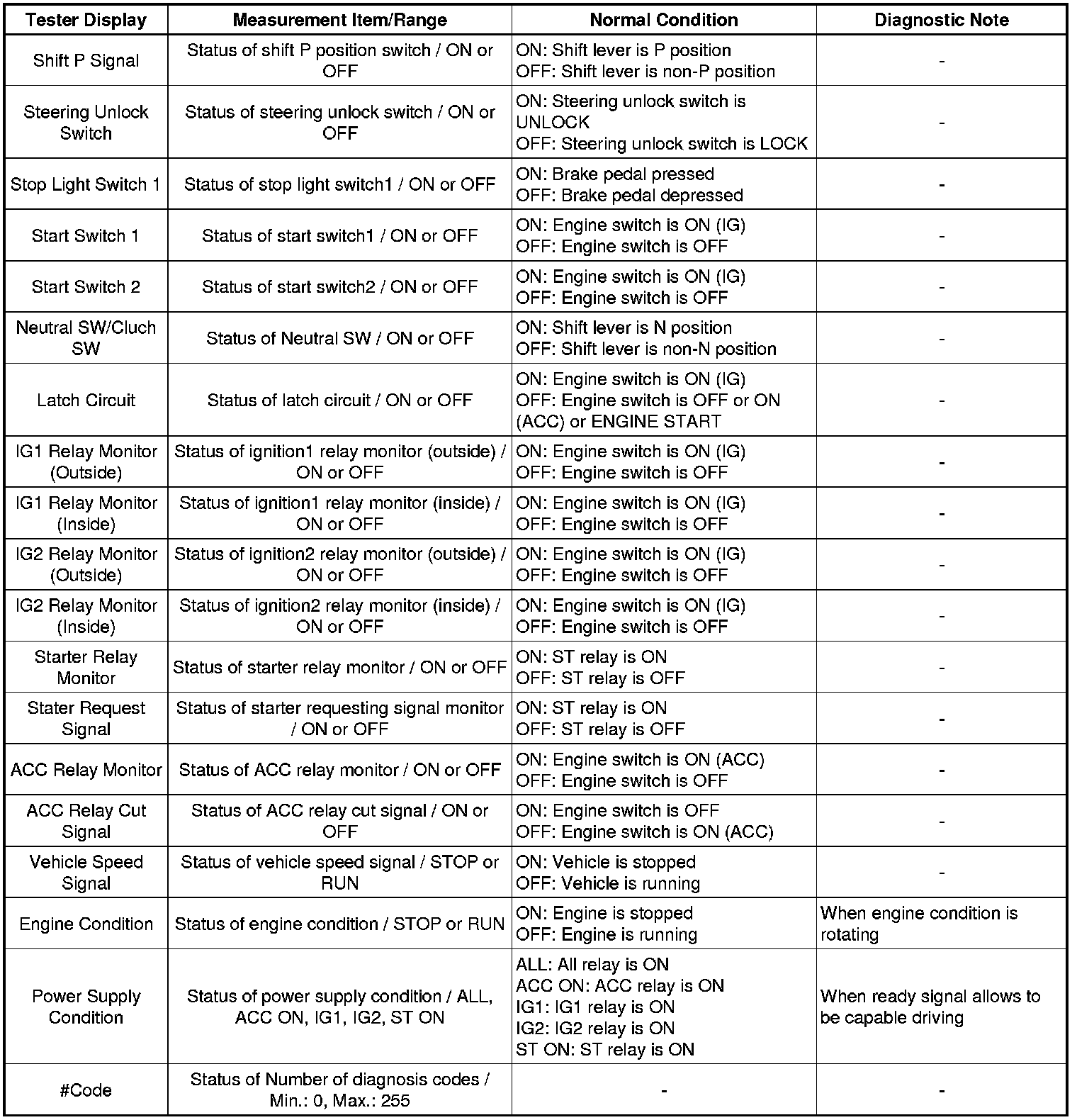

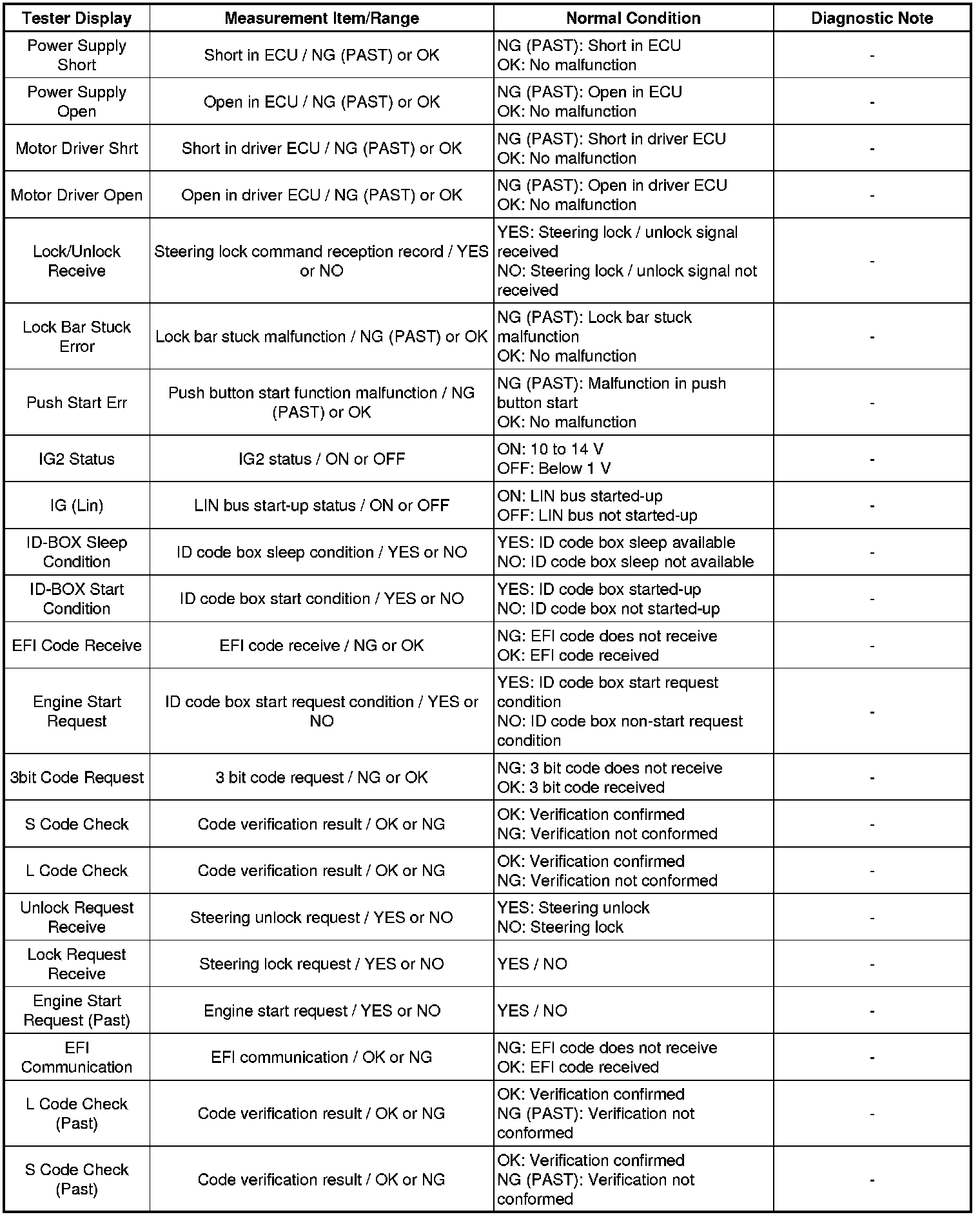

Power source control ECU:





Certification ECU:

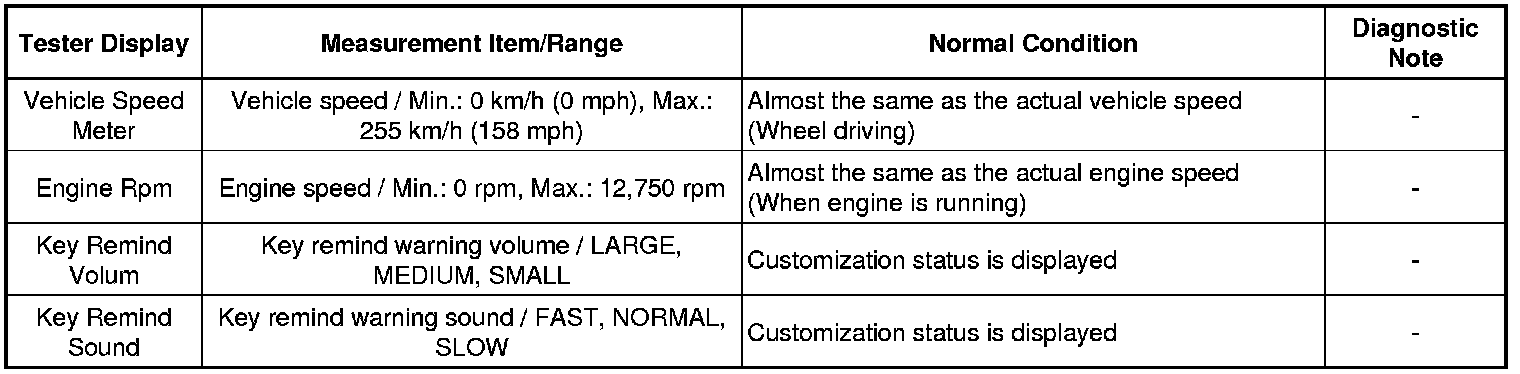

Combination Meter:





2. ACTIVE TEST

HINT
Perform the Active Test using Techstream to operate the motors of the front seat outer belts. Performing the Active Test is one of the methods to shorten labor time. It is possible to display the Data List during the Active Test.

(a) Connect Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Following the display on the tester, select the "Active Test".

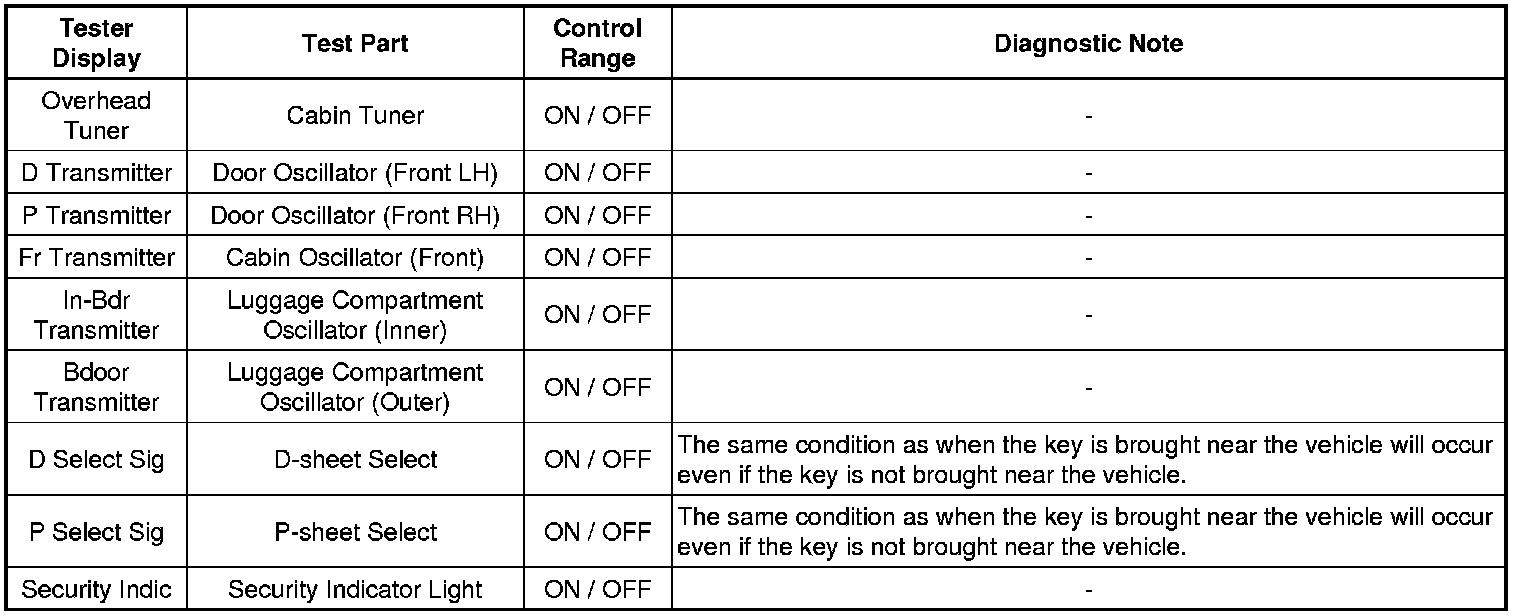

Certification ECU:





Combination Meter:
