Disassembly (from 12/2010)

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD: DISASSEMBLY

1. REMOVE NO. 1 INSTRUMENT PANEL PIN

(a) Remove the 2 screws (E) and 2 No. 1 instrument panel pins.





2. REMOVE NO. 1 HEATER TO REGISTER DUCT

(a) Remove the 3 screws (E) and No. 1 heater to register duct.





3. REMOVE NO. 3 HEATER TO REGISTER DUCT

(a) Disengage the clamp.





(b) Remove the 3 screws (E) and No. 3 heater to register duct.

4. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

(a) Remove the screw (E) and No. 1 side defroster nozzle duct.





5. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

(a) Remove the screw (E) and No. 2 side defroster nozzle duct.





6. REMOVE DEFROSTER NOZZLE ASSEMBLY

(a) Remove the 3 screws (E) and defroster nozzle assembly.





7. REMOVE NO. 2 HEATER TO REGISTER DUCT

(a) Remove the 4 screws (E) and No. 2 heater register duct.





8. REMOVE SIDE DEFROSTER NOZZLE LH

(a) Disengage the 6 claws and remove the side defroster nozzle LH.





9. REMOVE SIDE DEFROSTER NOZZLE RH

(a) Disengage the 6 claws and remove the side defroster nozzle RH.





10. REMOVE CENTER INSTRUMENT PANEL BRACKET SUB-ASSEMBLY

(a) Remover the 2 screws (E) and center instrument panel bracket sub-assembly.





11. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY Removal (from 12/2010)

12. REMOVE GLOVE BOX LIGHT ASSEMBLY

(a) Disengage the 2 claws and remove the glove box light assembly.





13. REMOVE NO. 3 INSTRUMENT PANEL WIRE

(a) Disconnect the connector.





(b) Disengage each clamp and remove the No. 3 instrument panel wire.

14. REMOVE ANTENNA CORD SUB-ASSEMBLY Removal (from 12/2010)

15. REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System) Removal (from 12/2010)

16. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

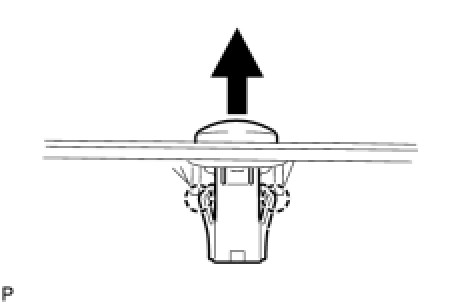

(a) Disengage the 2 claws and remove the automatic light control sensor as shown in the illustration.





NOTICE:
Do not pry the automatic light control sensor out through the top.
