Cannot Call In A Certain Place (from 12/2010)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Cannot Call in a Certain Place
- Cannot Call in a Certain Place

INSPECTION PROCEDURE

PROCEDURE

1. CHECK SURROUNDING CONDITIONS

(a) Check if the cellular phone can make calls in a certain place.

OK:

The cellular phone can make calls.

NG -- END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS)
OK -- Continue to next step.

2. CHECK RECEPTION

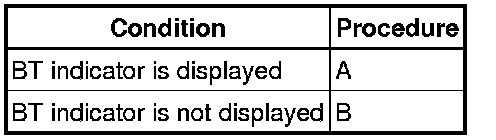

(a) Check the "Bluetooth" connection indicator (BT indicator) on the screen.

Result:





B -- REPLACE RADIO RECEIVER ASSEMBLY Removal (from 12/2010)

A -- SELECT REGISTERED CELLULAR PHONE OR REGISTER "BLUETOOTH" COMPATIBLE PHONE
