Radio Receiver Communication Error (to 12/2010)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Radio Receiver Communication Error
- Radio Receiver Communication Error

INSPECTION PROCEDURE

PROCEDURE

1. IDENTIFY COMPONENT SHOWN BY SUB-CODE

(a) Enter diagnostic mode.





(b) Press preset switch "2" to change the mode to "Detailed Information Mode".

(c) Identify the component shown by the sub-code.

HINT
* "P190" set by the radio receiver assembly is shown in the preceding illustration as an example.
* For details of the DTC display, refer to DTC Check/Clear DTC Check / Clear (to 12/2010).

NEXT -- Continue to next step.

2. CHECK COMPONENT SHOWN BY SUB-CODE

(a) Select the component shown by the sub-code.

HINT
The satellite radio tuner is built into the radio receiver assembly. If there is a problem between the satellite radio tuner and radio receiver assembly, replace the radio receiver assembly.

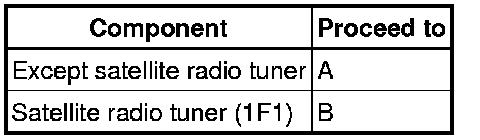

Component Table





B -- REPLACE RADIO RECEIVER ASSEMBLY Removal (to 12/2010)
A -- Continue to next step.

3. CHECK POWER SOURCE CIRCUIT OF COMPONENT SHOWN BY SUB-CODE

(a) Inspect the power source circuit of the component shown by the sub-code.

If the power source circuit is operating normally, proceed to the next step.

Component Table





NEXT -- Continue to next step.

4. INSPECT RADIO RECEIVER ASSEMBLY

(a) Disconnect the radio receiver assembly connectors.

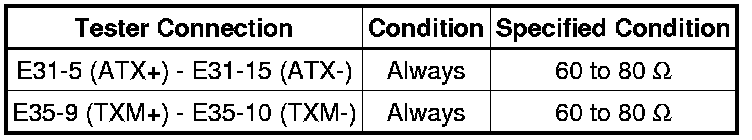

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

for 12 Speakers





for 9 Speakers





Text in Illustration





NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal (to 12/2010)
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - COMPONENT SHOWN BY SUB-CODE)

HINT
* Start the check from the circuit that is near the component shown by the sub-code first.
* For details of the connectors, refer to Terminals of ECU Pinout Values and Diagnostic Parameters.

(a) Referring to the following AVC-LAN wiring diagram, check the AVC-LAN circuit between the radio receiver assembly and the component shown by the sub-code.

(1) Disconnect all connectors between the radio receiver assembly and the component shown by the sub-code.

(2) Check for an open or short in the AVC-LAN circuit between the radio receiver assembly and the component shown by the sub-code.

OK:

There is no open or short circuit.





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

6. REPLACE COMPONENT SHOWN BY SUB-CODE

(a) Replace the component shown by the sub-code with a known good one and check if the same problem occurs again.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal (to 12/2010)

OK -- END
