Terminals of ECU (to 12/2010)

NAVIGATION: NAVIGATION SYSTEM: TERMINALS OF ECU

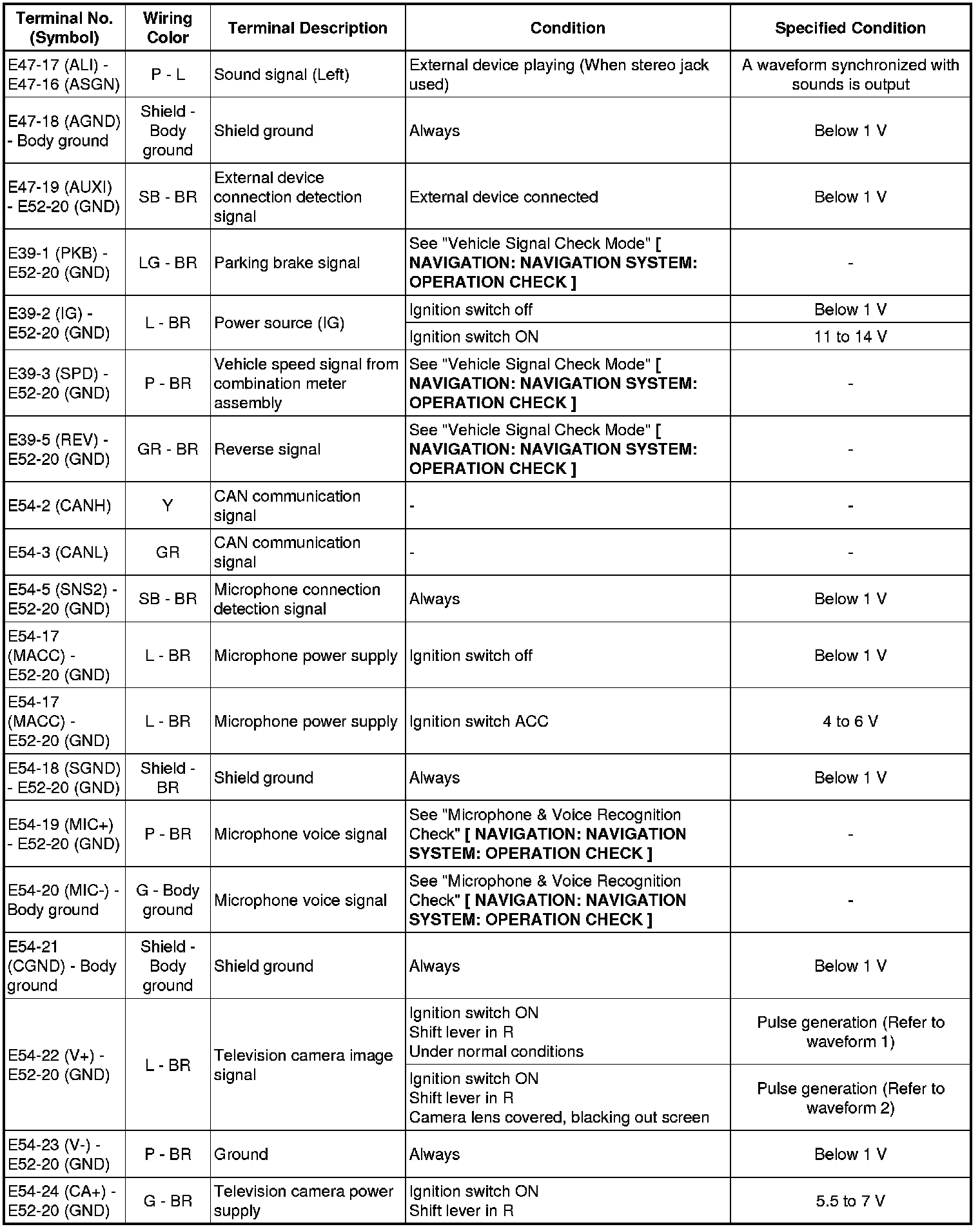

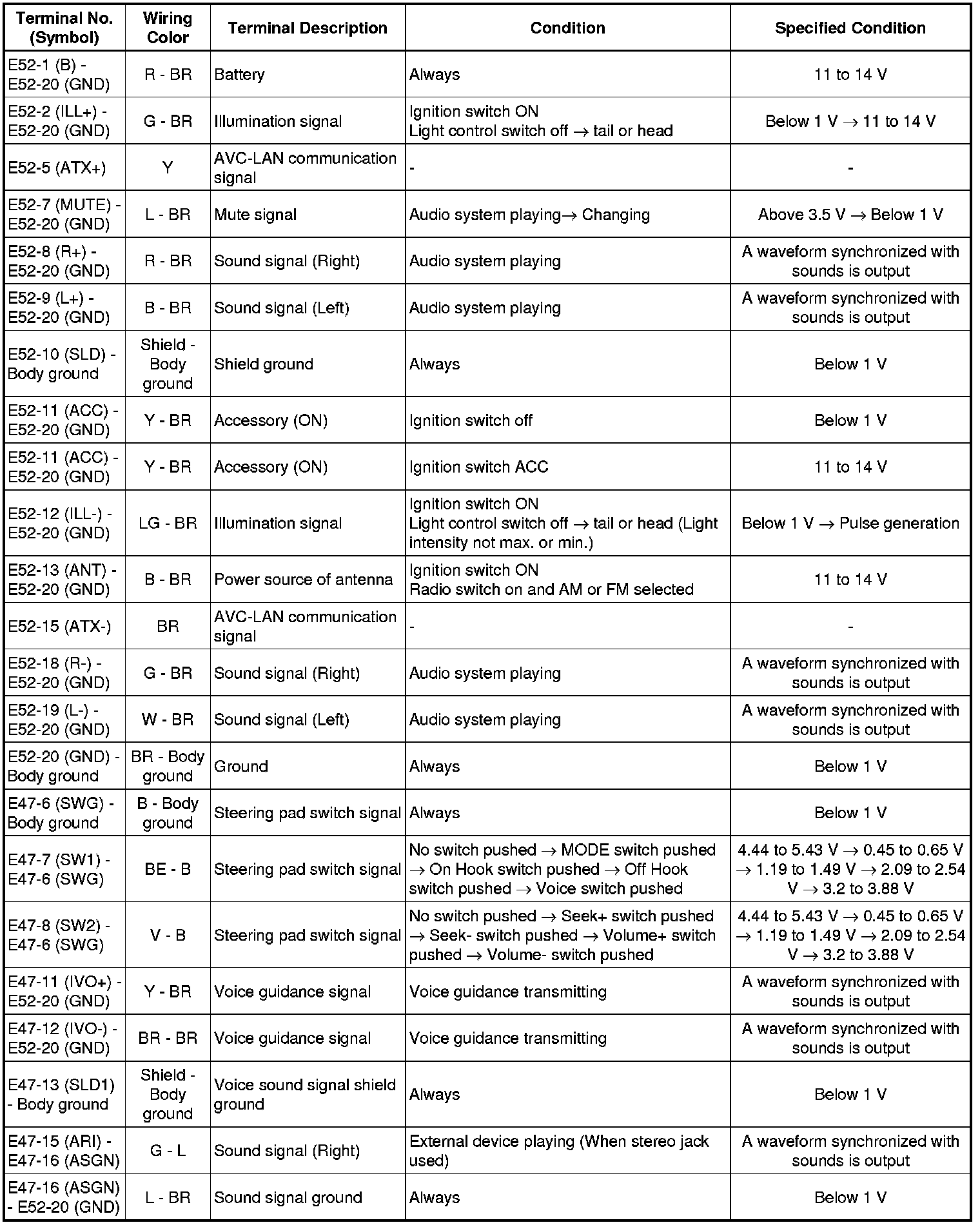

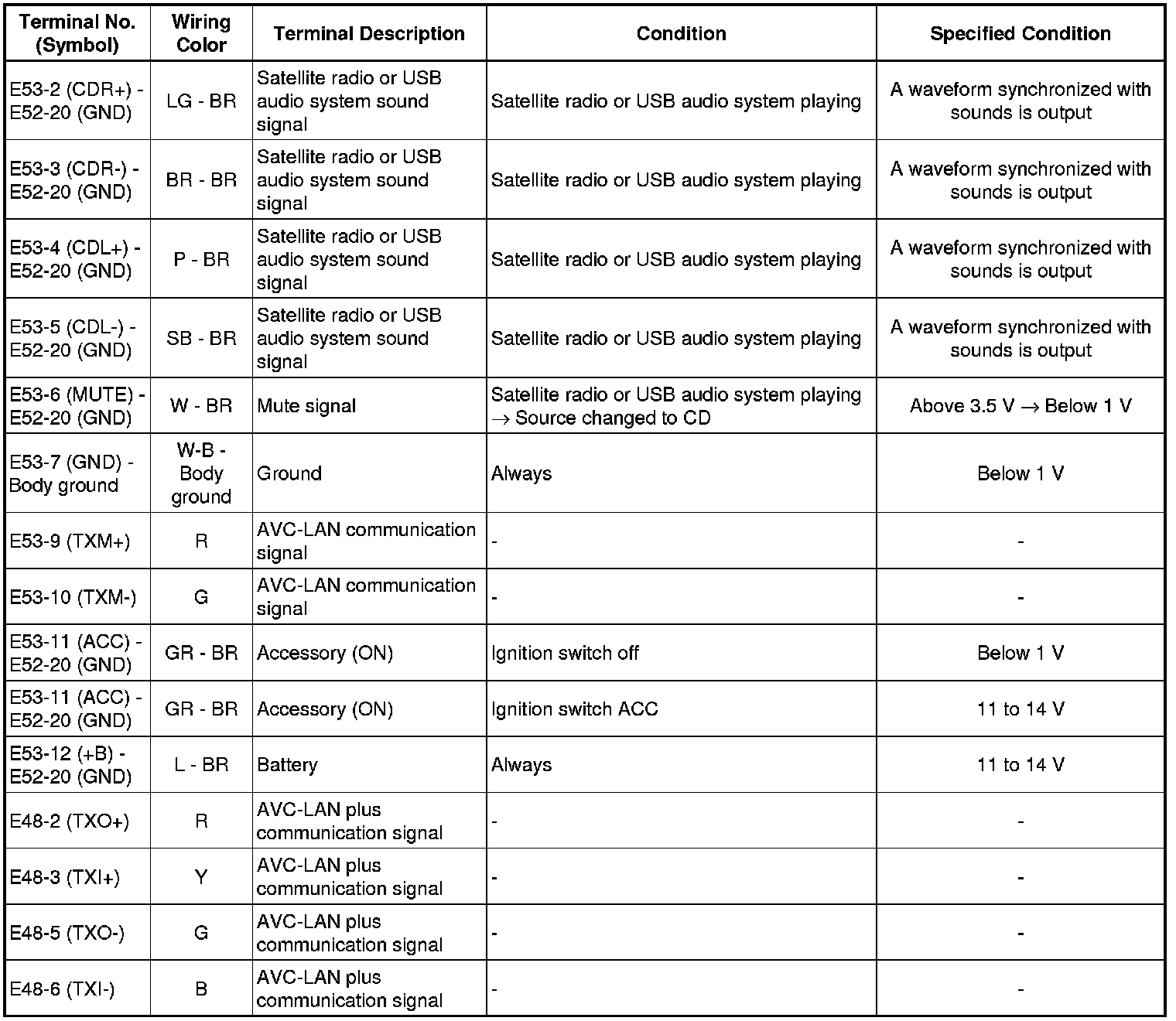

1. NAVIGATION RECEIVER ASSEMBLY

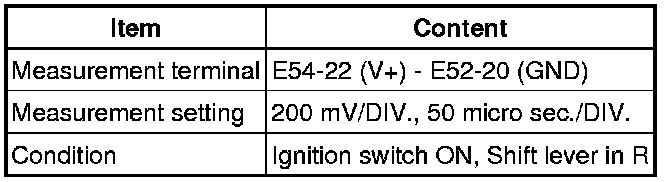

(a) Reference (Oscilloscope waveform):

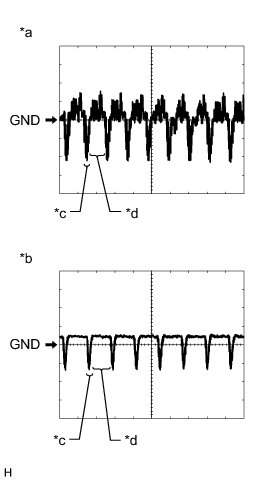

(1) Waveform 1 (under normal conditions)





HINT
The video waveform changes according to the image that the television camera assembly projects.

(2) Waveform 2 (camera lens is covered, blacking out the screen)





HINT
The video waveform changes according to the image from the television camera assembly.

Text in Illustration

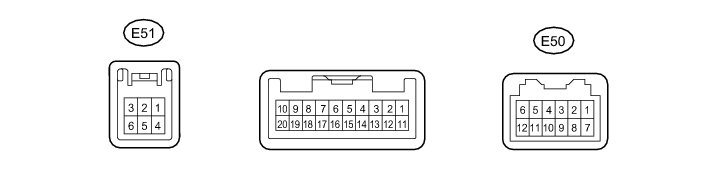

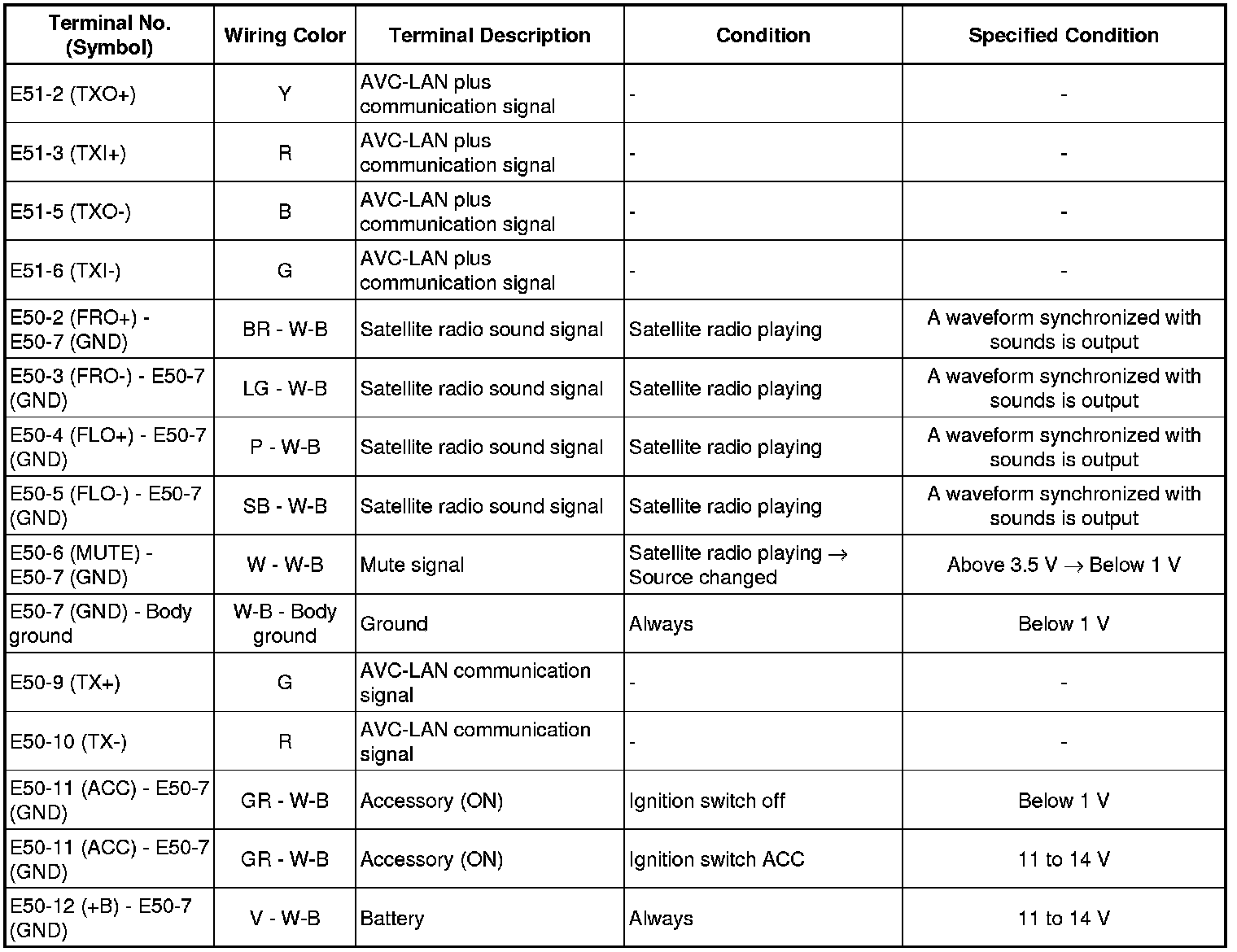

2. STEREO COMPONENT TUNER ASSEMBLY

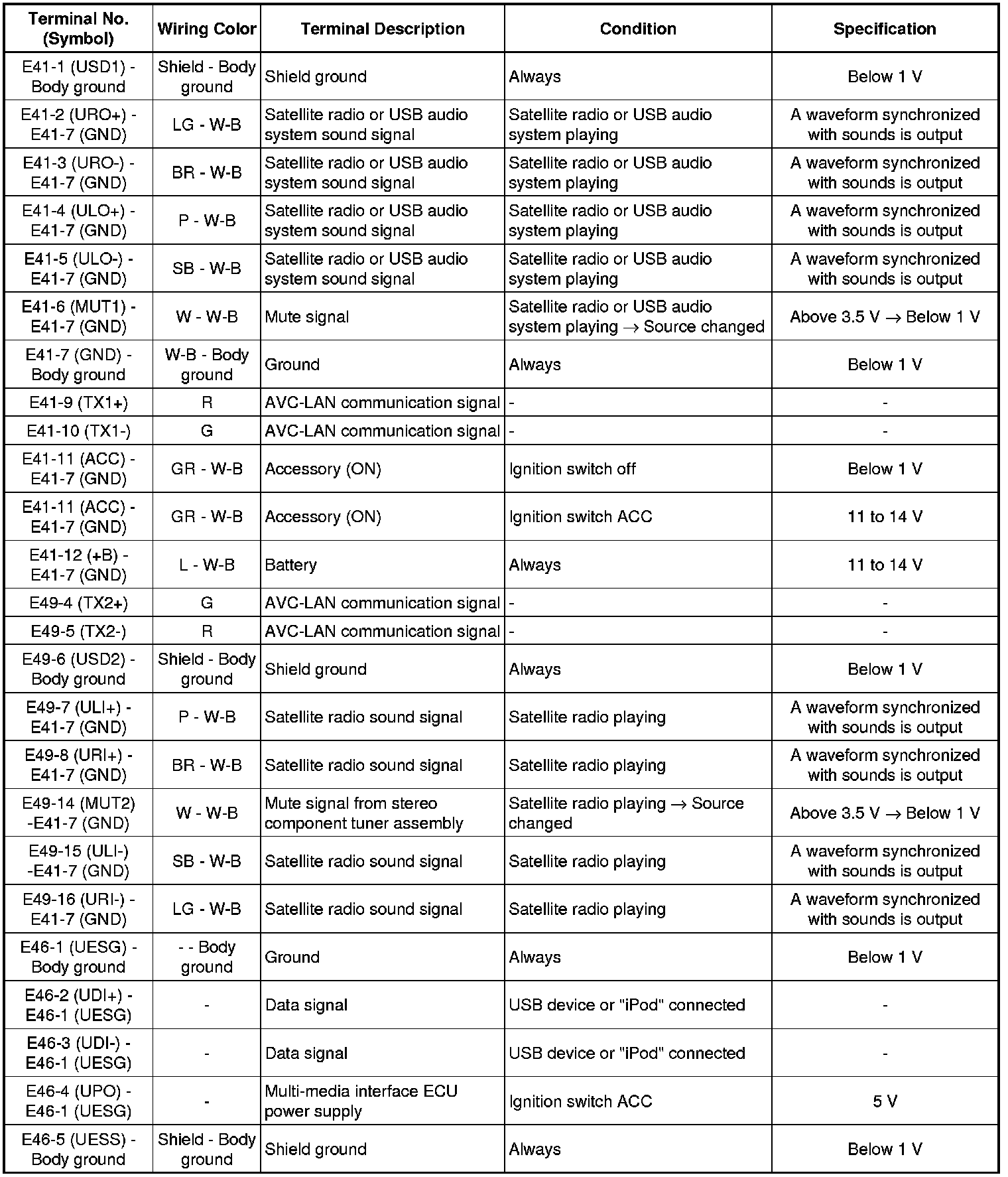

3. MULTI-MEDIA INTERFACE ECU









4. STEREO COMPONENT AMPLIFIER ASSEMBLY Pinout Values and Diagnostic Parameters
