Steering Pad Switch Circuit (to 12/2010)

NAVIGATION: NAVIGATION SYSTEM: Steering Pad Switch Circuit
- Steering Pad Switch Circuit

DESCRIPTION

This circuit sends an operation signal from the steering pad switch assembly to the navigation receiver assembly.

If there is an open in the circuit, the navigation system cannot be operated using the steering pad switch assembly.

If there is a short in the circuit, the resulting condition is the same as if a switch were continuously pressed. Therefore, the navigation receiver assembly cannot be operated using the steering pad switch assembly, and the navigation receiver assembly itself cannot function.

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
The vehicle is equipped with an SRS (Supplemental Restraint System). Before servicing (including removal or installation of parts), be sure to read the precautionary notice for Supplemental Restraint System Precaution (to 12/2010).

PROCEDURE

1. INSPECT NAVIGATION RECEIVER ASSEMBLY

(a) Disconnect the E47 navigation receiver assembly connector.

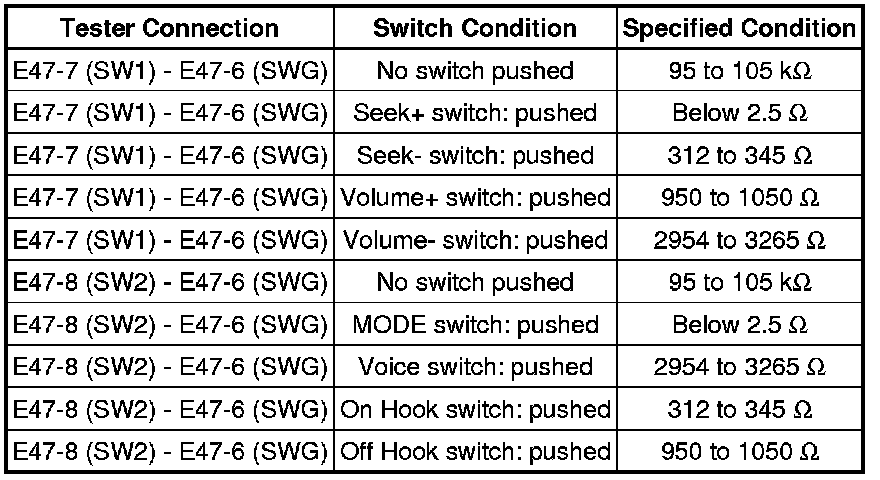

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- INSPECT SPIRAL CABLE SUB-ASSEMBLY

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table (to 12/2010)

2. INSPECT SPIRAL CABLE SUB-ASSEMBLY

(a) Disconnect the a1 steering pad switch assembly and D15 spiral cable sub-assembly connectors.

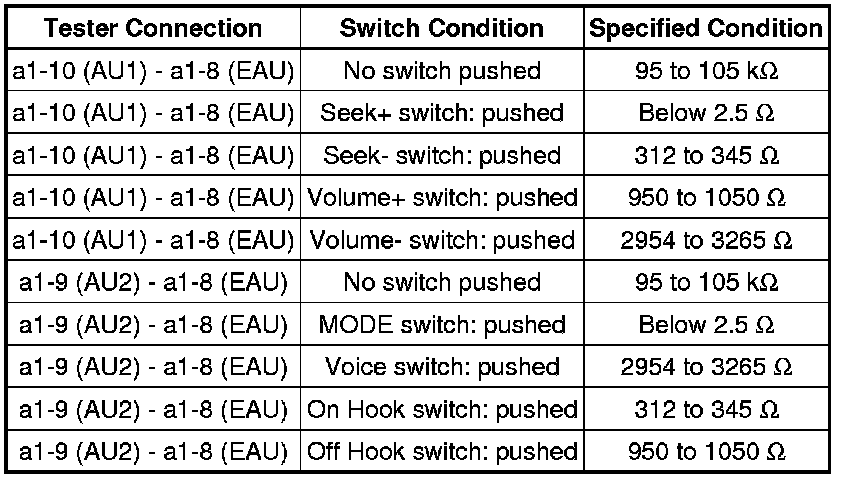

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NOTICE:
The spiral cable sub-assembly is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable sub-assembly may prevent the airbag from deploying. Refer to the pages shown in the brackets.

HINT
* Removal Removal (to 12/2010)
* Installation Installation (to 12/2010)

Text in Illustration





NG -- REPLACE SPIRAL CABLE SUB-ASSEMBLY Removal (to 12/2010)
OK -- Continue to next step.

3. INSPECT STEERING PAD SWITCH ASSEMBLY

(a) Disconnect the a1 steering pad switch assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE STEERING PAD SWITCH ASSEMBLY Removal (to 12/2010)

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - SPIRAL CABLE SUB-ASSEMBLY)
