Reverse Signal Circuit (from 12/2010)

NAVIGATION: NAVIGATION SYSTEM: Reverse Signal Circuit
- Reverse Signal Circuit

DESCRIPTION

The navigation receiver assembly receives a reverse signal from the park/neutral position switch assembly and information about the navigation antenna assembly, and then adjusts the vehicle position on the navigation display.

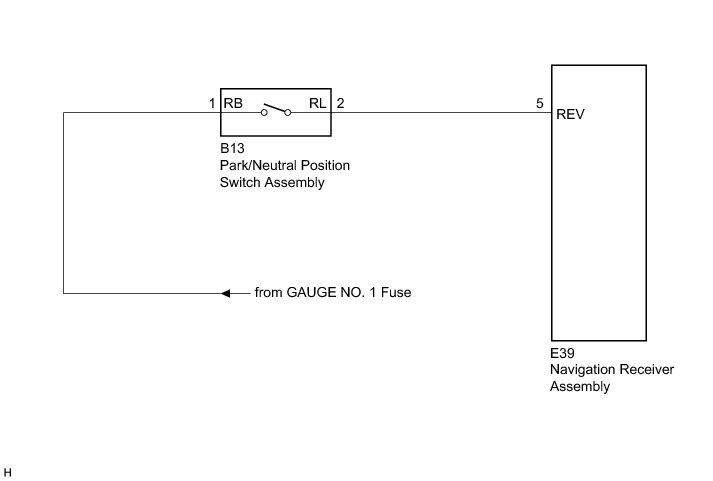

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT NAVIGATION RECEIVER ASSEMBLY

(a) Disconnect the E39 navigation receiver assembly connector.





(b) Measure the voltage according to the value(s) in the table below.

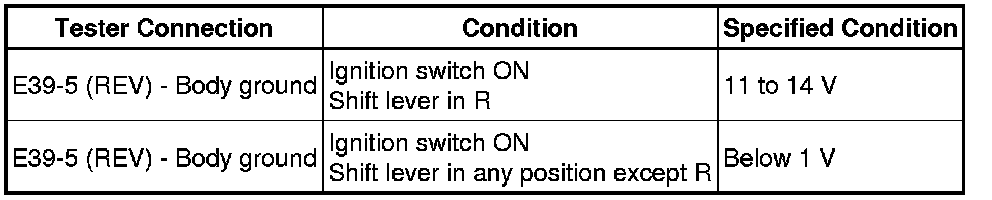

Standard Voltage:





Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - PARK/NEUTRAL POSITION SWITCH)

OK -- REPLACE NAVIGATION RECEIVER ASSEMBLY Removal (from 12/2010)

2. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - PARK/NEUTRAL POSITION SWITCH)

(a) Disconnect the E39 navigation receiver assembly connector.

(b) Disconnect the B13 park/neutral position switch assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - BATTERY)

(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for U660E) Removal (from 12/2010)
