Navigation Voice Circuit (from 12/2010)

NAVIGATION: NAVIGATION SYSTEM: Navigation Voice Circuit
- Navigation Voice Circuit

DESCRIPTION

This circuit is used when the voice guidance in the navigation system is on.

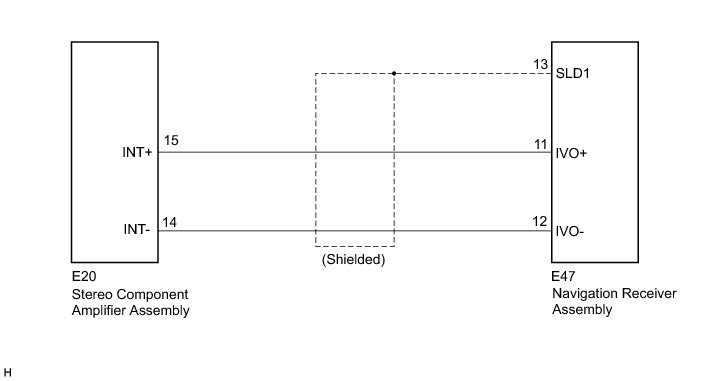

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER - STEREO COMPONENT AMPLIFIER)

(a) Disconnect the E47 navigation receiver assembly connector.

(b) Disconnect the E20 stereo component amplifier assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

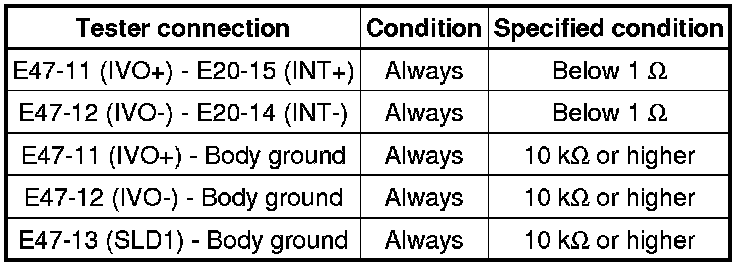

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table (from 12/2010)
