Navigation Receiver Assembly Power Source Circuit (from 12/2010)

NAVIGATION: NAVIGATION SYSTEM: Navigation Receiver Assembly Power Source Circuit
- Navigation Receiver Assembly Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the navigation receiver assembly.

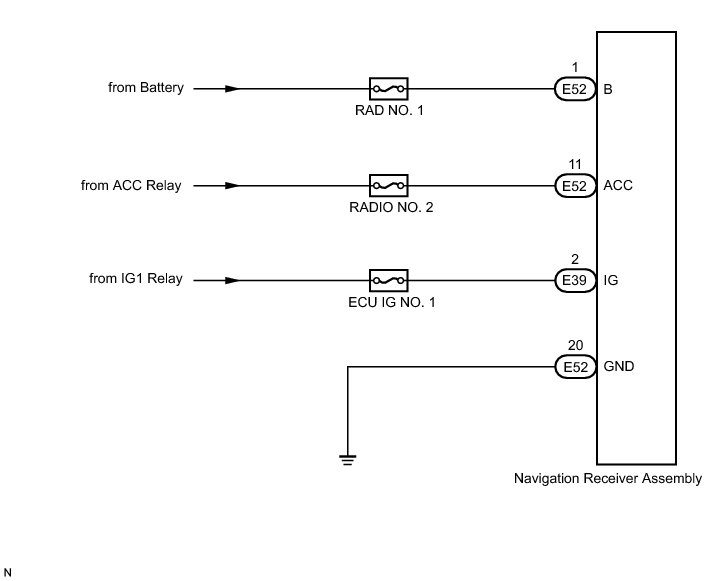

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - BATTERY, GROUND)

(a) Disconnect the E52 navigation receiver assembly connector.

(b) Disconnect the E39 navigation receiver assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

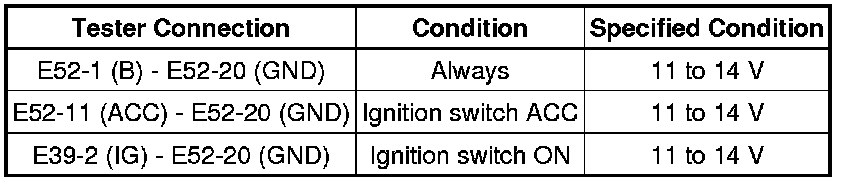

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table (from 12/2010)
