Multi-media Interface ECU Power Source Circuit (to 12/2010)

NAVIGATION: NAVIGATION SYSTEM: Multi-media Interface ECU Power Source Circuit
- Multi-media Interface ECU Power Source Circuit

DESCRIPTION

This circuit provides power to the multi-media interface ECU.

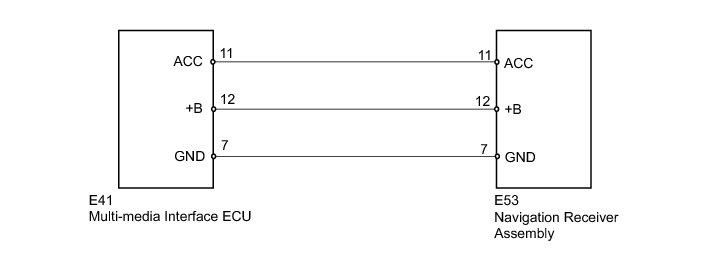

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT MULTI-MEDIA INTERFACE ECU

(a) Disconnect the E41 multi-media interface ECU connector.

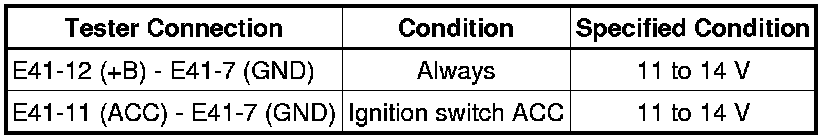

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - MULTI-MEDIA INTERFACE ECU)

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table (to 12/2010)

2. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - MULTI-MEDIA INTERFACE ECU)

(a) Disconnect the E53 navigation receiver assembly connector.

(b) Disconnect the E41 multi-media interface ECU connector.

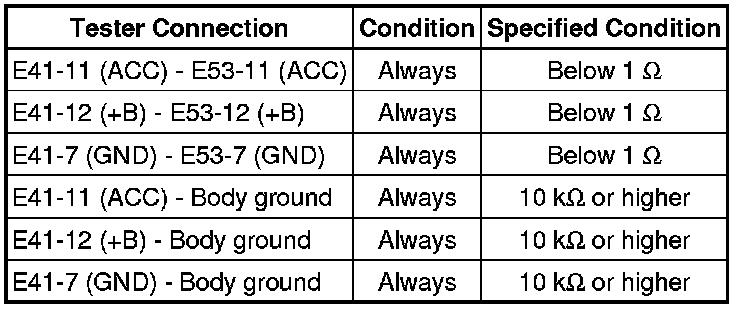

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE NAVIGATION RECEIVER ASSEMBLY Removal (to 12/2010)
